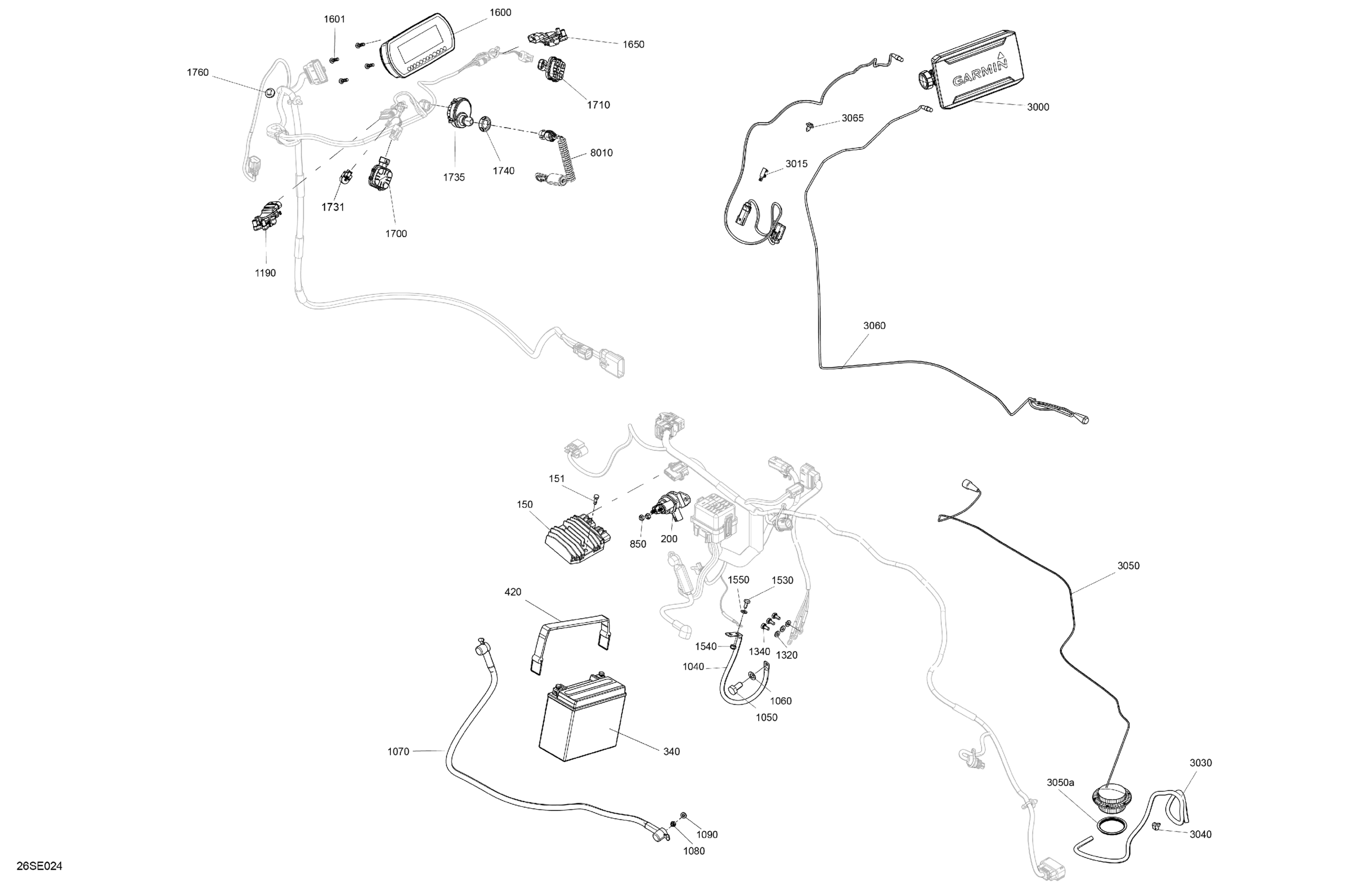

Sea-doo FISH PRO SCOUT - 130 - Fish SC - 33SA - Bright White, 2025 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

151

Hex. Flange Screw K50 X 25

250000680

$1.72

200

Starter Relay

278003012

$35.07

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1600

Multifunction Mono Compact Gauge

278003430

$563.05

1601

Hex. Flange PT Screw K50 X 20

241152040

$1.74

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch

278003821

$101.37

1710

RH Switch Keypad

278003474

$101.37

1731

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

1735

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

1740

Specialized Nut

278004274

$2.72

1760

Mount Dart

710008294

$1.02

3000

GPS Ass'y

278003998

$789.99

3015

Connector Support

515179692

$1.63

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

3040

Mount Dart

710008294

$1.02

3050

Transducer | Includes 3000 to 3000a

295100972

$341.22

3050a

Seal

292002447

$2.63

3060

Transducer Harness

278003683

$86.42

3065

Mount Dart

710008294

$1.02

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
