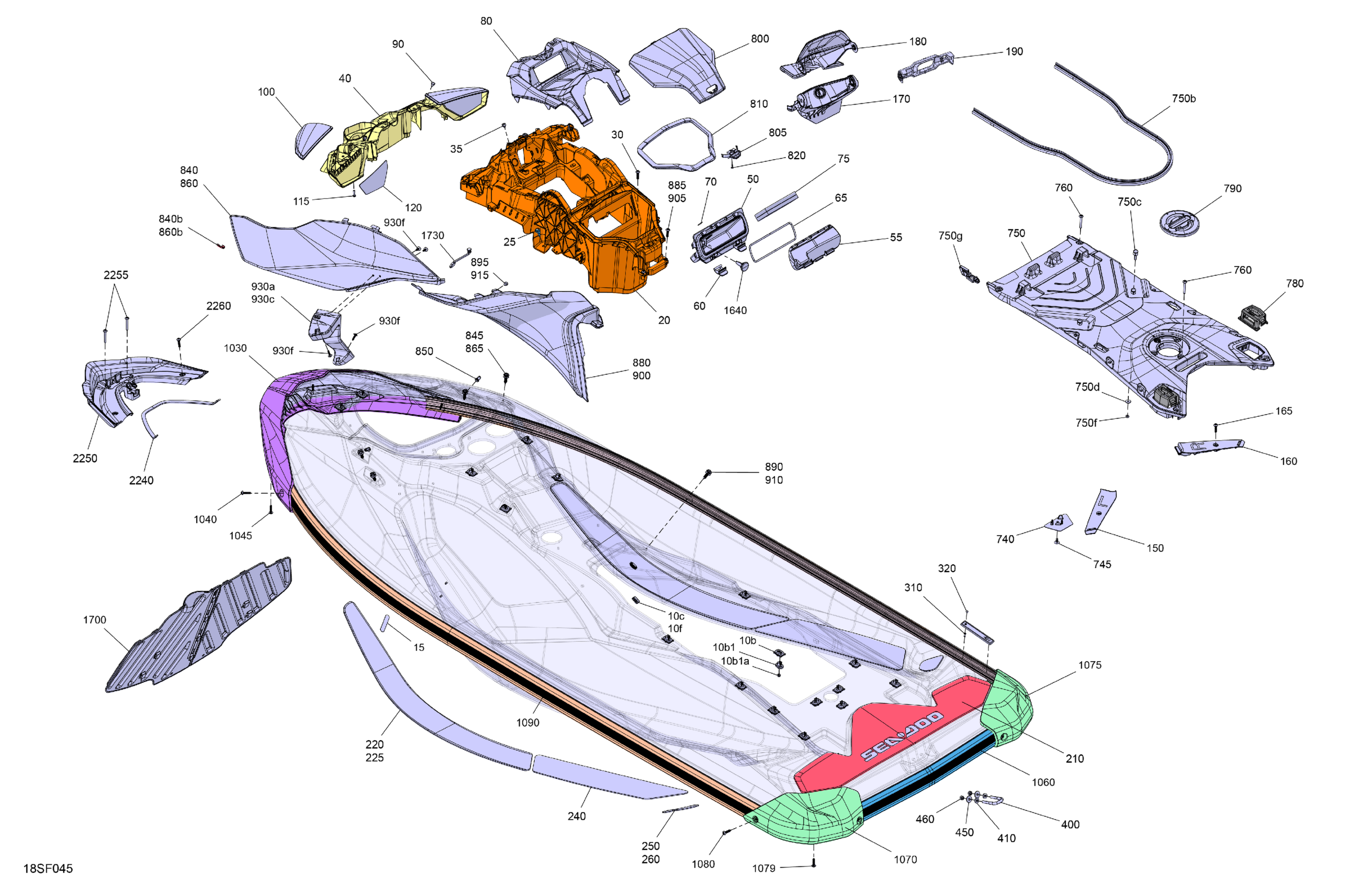

Sea-doo FISH PRO SCOUT - 130 - 33TB - Bright White, 2026 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

10b1a

Elastic Stop Nut M6, Brass

232561200

$4.23

10c

Anchorage Tie Wrap

293750109

$1.25

10f

Anchorage Tie Wrap

293750109

$1.25

15

Decal

291005381

$1.09

20

Console

291005887

$184.99

25

Hex Screw SEMS M6X35, SS

250000969

$2.11

30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

35

Rubber Bumper

293830005

$8.09

40

Mirror Support

291005178

$68.99

50

Deep Black, Storage Box

291006491

$24.49

55

Box Cover

264000158

$14.49

60

Clip

269501718

$15.89

65

Gasket

293250591

$17.99

70

Vent Membrane

264000137

$12.99

75

Sealed Compartment Foam

264000135

$12.99

80

Black, Console Panel

291005085

$57.99

90

Rubber Bumper

293830005

$8.09

100

Deep Black, LH Mirror Cover

269502427

$55.99

115

Hex. Screw 10-14 X 7/8”

211000023

$3.59

120

LH Mirror Glass

269502274

$88.99

150

LH Spacer

291005127

$20.99

160

RH Spacer

291005182

$20.99

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

170

Echo Sounder Support

269502551

$229.99

180

Deep Black, Echosounder Deflector

269502375

$110.99

190

GPS Support Kit

269801597

$44.99

210

Anti Slip Mat Deck Rear

291005258

$71.99

220

LH Front Anti Slip Mat Deck

291005171

$28.49

225

RH Front Anti Slip Mat Deck

291005172

$28.49

240

LH/RH Rear Anti Slip Mat Side

291005173

$20.49

250

LH Rear Footrest Anti Slip Mat

291005885

$4.39

260

RH Rear Footrest Anti Slip Mat

291005886

$4.39

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

740

Hose Protector

291004941

$4.69

745

Black, Dart

293730011

$0.99

750

Access Cover Ass'y | Includes 750 to 750g

291006468

$219.99

750b

Was 293200062 Seal

219704366

$76.49

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.77

750f

Elastic Stop Nut M6, Brass

232561200

$4.23

750g

Seal

291004717

$12.99

760

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

780

Linq Bases Kit

295100858

$13.30

790

Access Cap Ass'y

291004481

$10.99

800

Box Cover

291006703

$67.99

805

Glove Box Latch

264000133

$21.99

810

Cover Gasket

293250716

$30.99

820

Screw K40 X 10

250001119

$2.40

840

Flint Grey, LH Front Body Panel Ass'y | Includes 840 to 840b

291005743

$184.99

840b

Neoprene Stopper

293250546

$0.12

845

Dard

293730071

$1.15

850

Tuflok Plastic Rivet

293150230

$1.47

860

Flint Grey, RH Front Body Panel Ass'y | Includes 860 to 860b

291005744

$179.99

860b

Neoprene Stopper

293250546

$0.12

865

Dard

293730071

$1.15

880

Flint Grey, LH Central Body Panel

291005746

$184.99

885

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

890

Dard

293730071

$1.15

895

Rubber Bumper

293830005

$8.09

900

Flint Grey, RH Central Body Panel

291005747

$184.99

905

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

910

Dard

293730071

$1.15

915

Rubber Bumper

293830005

$8.09

930a

LH Front Accessory Support Kit

295101039

$31.99

930c

RH Front Accessory Support Kit

295101040

$31.99

930f

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

1030

Bumper Front

291005082

$104.99

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1060

Lateral Bumper

291005510

$56.99

1070

LH Rear Bumper Corner

291005083

$20.49

1075

RH Rear Bumper Corner

291005084

$20.49

1079

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1090

Lateral Bumper

291006724

$56.99

1100a

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1100b

Tuflok Plastic Rivet

293150230

$1.47

1100c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1110a

Hexagonal Cap Screw M6 X35

250000399

$4.44

1110b

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1640

USB Plug

269502324

$3.09

1700

Separation Panel Ass'y

291005587

$104.99

1730

Holding Strap

269502111

$18.49

2240

Gasket, Neoprene 2000Mm Long

219704476

$15.36

2250

Body Deflector

291005108

$57.99

2255

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

2260

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66
