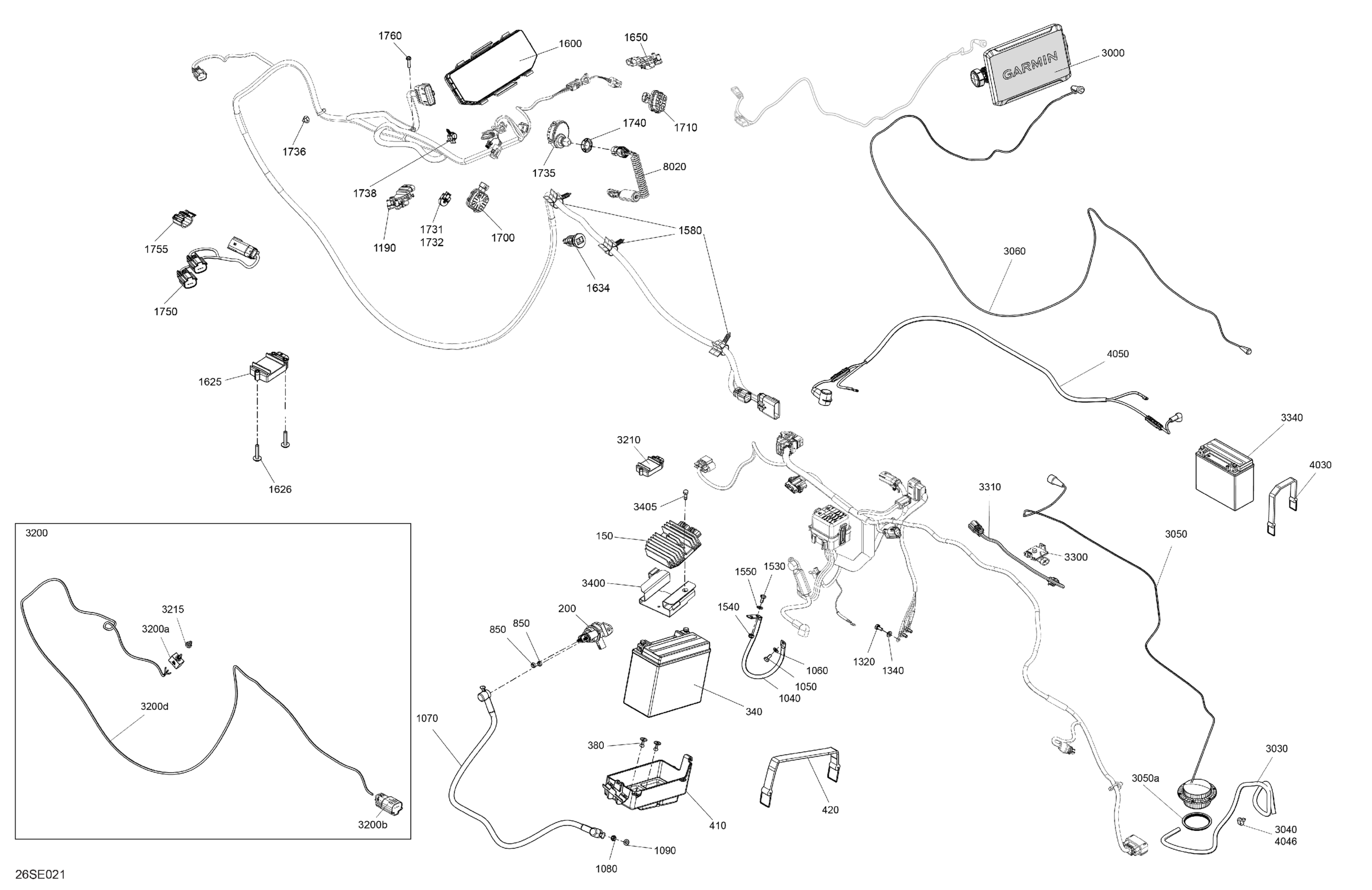

Sea-doo FISH PRO APEX - 300 - Fish AP - 27SC - Flint Grey - Audio, 2025 Electric - System Diagram

#

Description
Price

150

Voltage Regulator

710010540

$195.99

200

Starter Relay

278003012

$42.49

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Multifunction Gauge Full Size Color

278004181

$1.00

1625

GPS

278004506

$109.99

1626

Hexagonal Cap Screw M6 X35

250000399

$4.44

1634

Wiring Grommet

293720121

$4.59

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1732

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS One Wire

515179305

$74.99

1736

Mount Dart

710008294

$1.04

1738

Retainer

278003564

$8.39

1740

Specialized Nut

278004274

$3.28

1750

Multiple Accessory Harness

278003684

$53.99

1755

Connectors Support

278003734

$2.96

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

3000

GPS Receiver

278004381

$1.00

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

3040

Mount Dart

710008294

$1.04

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.27

3060

Echo sounder Wiring Harness

278003982

$109.99

3200

Pump Wiring Harness | Includes 3200 to 3200d

278004018

$119.99

3200a

Switch

278004017

$41.49

3200b

Housing

515178954

$35.99

3200c

Female Terminal

515178014

$2.39

3200d

Shrink Tubing, 6 mm

515177246

$1.04

3210

Module Minuterie

278003996

$339.99

3215

Switch Trim

278004016

$7.02

3300

O.T.A.S. Sensor

278003538

$109.99

3310

Seat Wiring Harness

278003986

$26.99

3340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

3400

Support Régulateur De Tension

278004030

$58.99

3405

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

4030

Holding Strap

293850112

$18.49

4046

Mount Dart

710008294

$1.04

4050

Secondary Battery Wiring Harness

278004007

$129.99

8020

Cut Off Switch Tether Cord

278004669

$72.99
