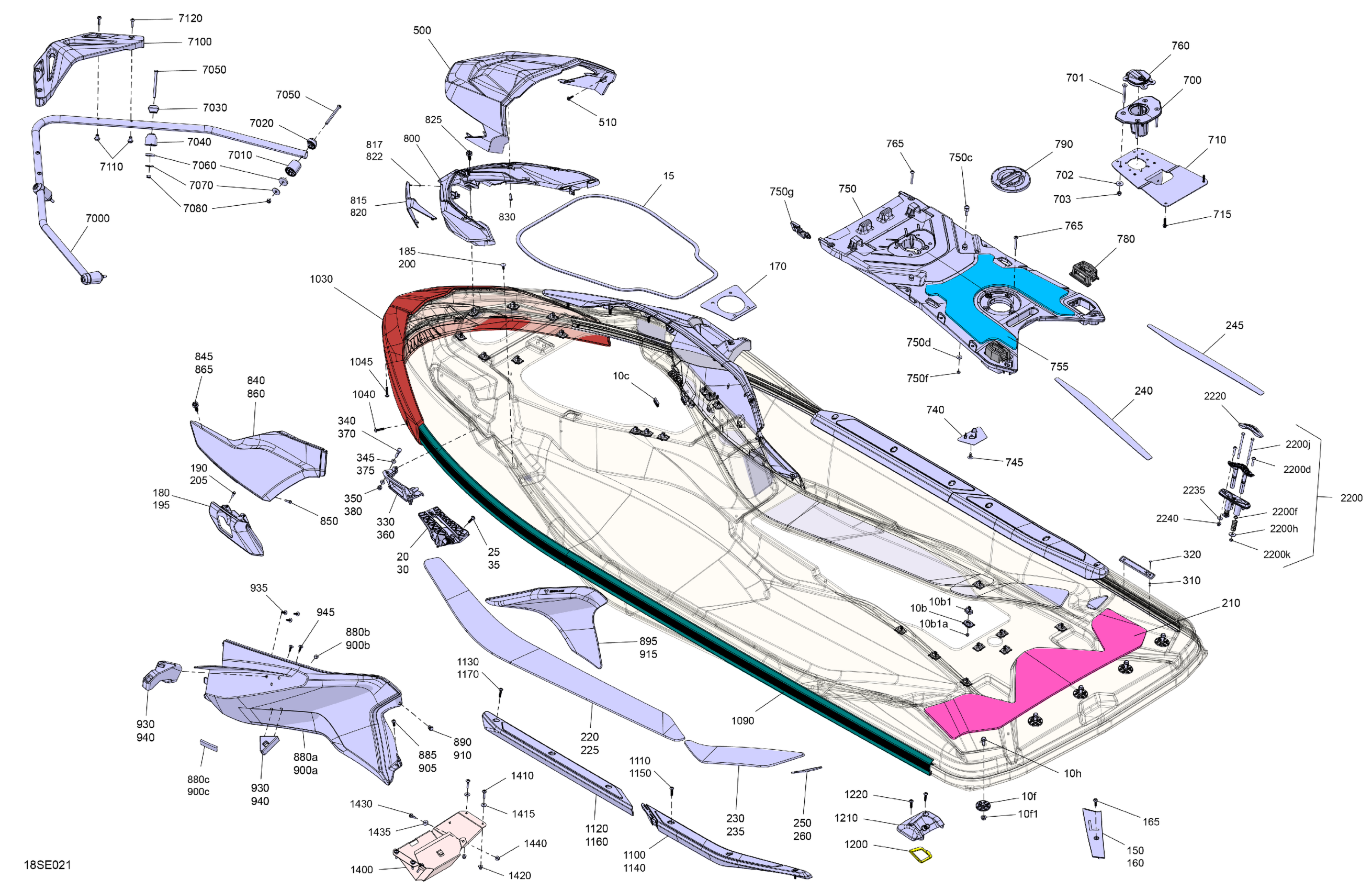

Sea-doo FISH PRO APEX - 300 - Fish AP - 27SC - Flint Grey - Audio, 2025 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.85

Elastic Stop Nut M6, Brass

232561200

$4.03

Anchorage Tie Wrap

293750109

$0.99

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

Hex. Flange Nut M8

233181600

$0.99

Hex. Flange Screw M8 X 25

207682544

$1.03

Gasket

293250401

$10.10

LH Support

291004714

$8.21

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

RH Support

291004715

$9.03

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

LH Shim

291005176

$13.52

RH Shim

291005177

$13.52

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Gasket

293250451

$22.36

LH Shell Cleat

291004661

$8.21

Black, Dart

293730011

$0.91

Hex. Screw 10-14 X 7/8”

211000023

$3.34

RH Shell Cleat

291004719

$8.21

Black, Dart

293730011

$0.91

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Olive Green, Anti Slip Mat

291006381

$132.81

LH Front Anti Slip Mat

291005351

$31.31

RH Front Anti Slip Mat

291005350

$31.31

LH Rear Anti Slip Mat

291005353

$15.64

RH Rear Anti Slip Mat

291005352

$15.64

LH Anti Slip Mat

291005916

$15.64

RH Anti Slip Mat

291005917

$15.64

LH Anti Slip Mat

291005883

$5.07

RH Anti Slip Mat

291005884

$5.07

Rivet 1/8"

293150016

$0.33

Black, Snap Cap

293000014

$0.97

LH Cleat

291004559

$7.31

Hex. Screw M8 X 35

207083560

$1.40

Stainless, Flat Washer 8 mm

234081600

$0.52

Hex. Elastic Nut M8 Brass

232581200

$1.48

RH Cleat

291004720

$7.31

Hex. Screw M8 X 35

207083560

$1.40

Stainless, Flat Washer 8 mm

234081600

$0.52

Hex. Elastic Nut M8 Brass

232581200

$1.48

Platinum Silver Satin, Hood

291006359

$303.70

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

Lower Seat Anchorage

291005708

$41.76

Socket Screw, M8 X 75 RIE

250001197

$9.82

Flat Washer 8 mm, Stainless

234082600

$2.27

Hex. Elastic Nut M8 Brass

232581200

$1.48

Retaining Plate

291005641

$58.18

Hex. Flange Screw M6.81 X 30

243163060

$2.18

Hose Protector

291004941

$4.22

Black, Dart

293730011

$0.91

Access Cover Ass'y | Includes 750 to 750g

291005669

$206.69

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

Unavailable

Flat Washer M6, Stainless

234062600

$0.73

Elastic Stop Nut M6, Brass

232561200

$4.03

Seal

291004717

$10.37

Deep Black, Rear Mat

291005861

$36.54

Panel Cap

291005698

$6.69

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Linq Bases Kit

295100858

$24.60

Access Cap Ass'y

291004481

$8.21

Front Hood Grille

291005915

$32.06

Loft Green Satin, LH Trim

291006370

$57.43

Push Nut

250100206

$0.96

Loft Green Satin, RH Trim

291006371

$57.43

Push Nut

250100206

$0.96

Dard

293730071

$1.03

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Platinum Silver Satin, LH Front Body Panel

291006357

$147.73

Dard

293730071

$1.03

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Platinum Silver Satin, RH Front Body Panel

291006358

$147.73

Dard

293730071

$1.03

Platinum Silver Satin, LH Central Body Panel

291006356

$244.00

Rubber Bumper

293830005

$6.12

Stopper

278003860

$0.70

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.43

Tuflok Plastic Rivet

293150230

$1.39

Swift Silver, LH Knee Pad

291004773

$101.46

Platinum Silver Satin, RH Central Body Panel

291006353

$244.00

Rubber Bumper

293830005

$6.12

Stopper

278003860

$0.70

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.43

Tuflok Plastic Rivet

293150230

$1.39

Swift Silver, RH Knee Pads

291004800

$101.46

LH Rod Holder Top Adapter

295100948

$30.57

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

RH Rod Holder Top Adapter

295100949

$30.57

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

Front Bumper

291004452

$71.61

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Bumper 2775±25mm

291004468

$129.82

Olive Night, LH Rear Footrest Ass'y

291006372

$57.43

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Olive Night, LH Front Footrest Ass'y

291006374

$57.43

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Olive Night, RH Rear Footrest Ass'y

291006376

$55.19

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Olive Night, RH Front Footrest Ass'y

291006378

$57.43

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Gasket

291005694

$5.39

Trim Support

291006092

$13.28

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Battery Support

278004444

$72.36

Truss Cone Torx Screw M6 X 30

250000924

$7.06

Flat Washer M6, Stainless

234062600

$0.73

Nut Flange Elastic M6

233261200

$0.94

Truss Cone Torx Screw M6 X 30

250000924

$7.06

Flat Washer M6, Stainless

234062600

$0.73

Nut Flange Elastic M6

233261200

$0.94

Retractable Cleat Mooring Ass'y | Includes 2200 to 2200k

291006449

$43.25

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

O-Ring

293300013

$6.54

Flat Washer 8 mm, Stainless

234082600

$2.27

Hex. Screw M6 X 100

230060060

$6.99

Hex. Elastic Stop Nut M6

232561600

$1.06

Support Trim

291006234

$12.46

Flat Washer M6, Stainless

234062600

$0.73

Nut Flange Elastic M6

233261200

$0.94

Olive Green, Front Tube

269801625

$180.99

Deep Black, Rear Lower Anchorage Tube

269801147

$12.67

Deep Black, Upper Rear Anchorage Tube

269801146

$12.67

Deep Black, Upper Front Anchorage Tube

269801145

$12.67

Deep Black, Front Lower Anchorage Tube

269801144

$12.67

Socket Head Screw M8 X 90

250001227

$7.69

Rubber Washer

293830037

$2.68

Flat Washer 8 mm, Stainless

250200175

$1.48

Hex. Elastic Nut M8 Brass

232581200

$1.48

Support Tube

269801193

$46.99

Brass Insert

511001251

$3.70

Screw-Torx Truss Cone Head M6X25

250001116

$3.90
