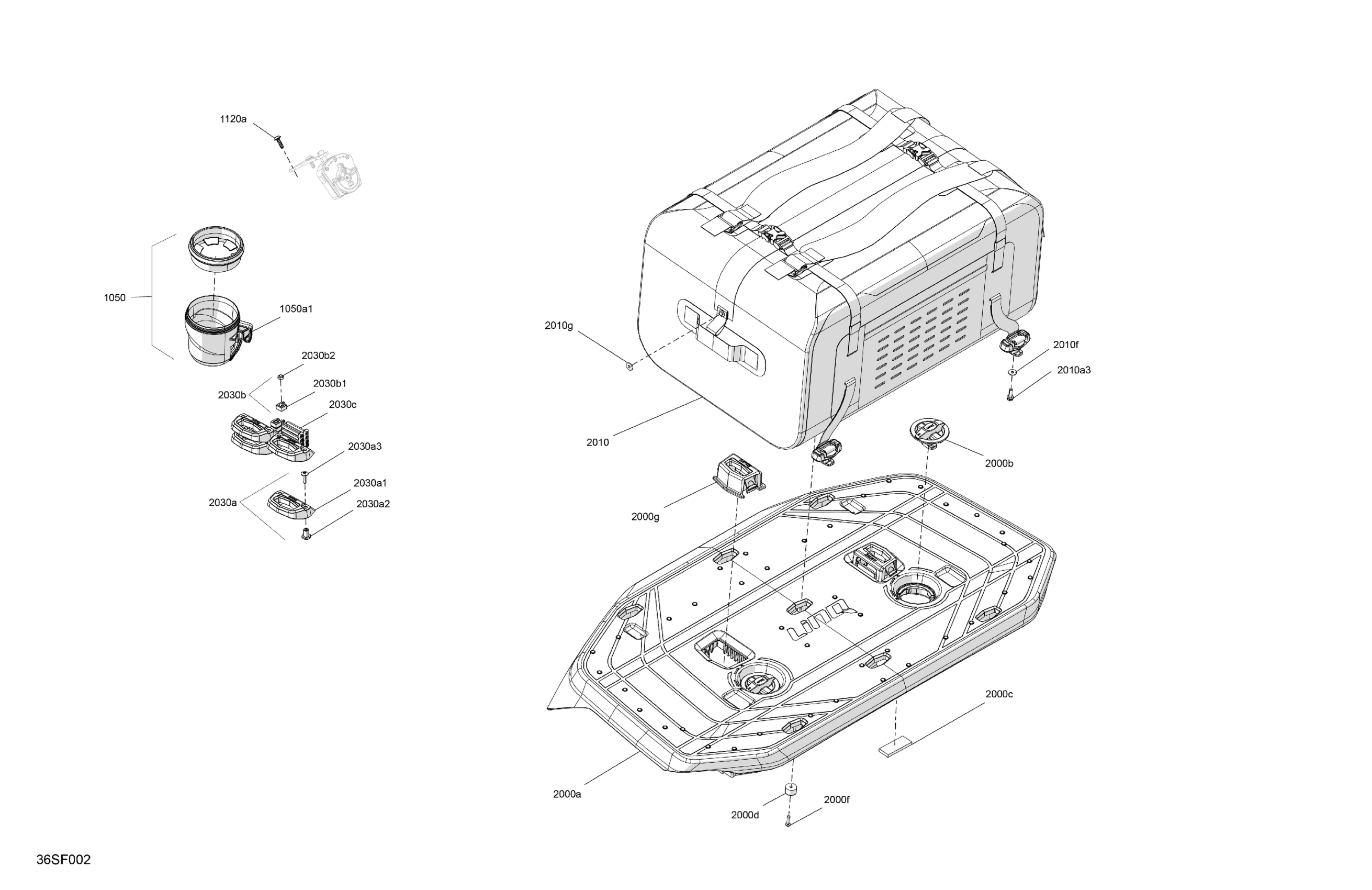

Sea-doo International - EXPLORER - PRO - 170 - 17TB - Iceland Grey - Audio, 2026 09- Miscellaneous - Utilities Diagram

Description

Price

1050

Cup Holder Support KIt | Includes 1050 to 1050a1

269801450

$37.99

1050a1

Cup Holder Kit

295101230

$40.49

1120a

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

2000a

Luggage Rack Linq

269801049

$402.99

2000b

Latch

708200274

$26.99

2000c

Stopper

278003618

$0.74

2000d

Rubber Stopper

293830226

$0.73

2000f

Flange Torx Screw K50 X 20

250001066

$1.90

2000g

Linq Bases Kit

295100858

$13.30

2010

LINQ Storage Bag Kit

295101016

$478.99

2010a3

Hex. Flange Screw M6.81 x 20

243162060

$3.72

2010f

Washer M5

250200025

$0.74

2010g

Rubber Washer 5 mm

250200024

$2.19

2030a

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$42.49

2030a1

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$42.49

2030a2

Threaded Insert

511000822

$2.09

2030a3

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

2030b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2030b1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

2030b2

Elastic Stop Nut M6, Brass

232561200

$4.23

2030c

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44
