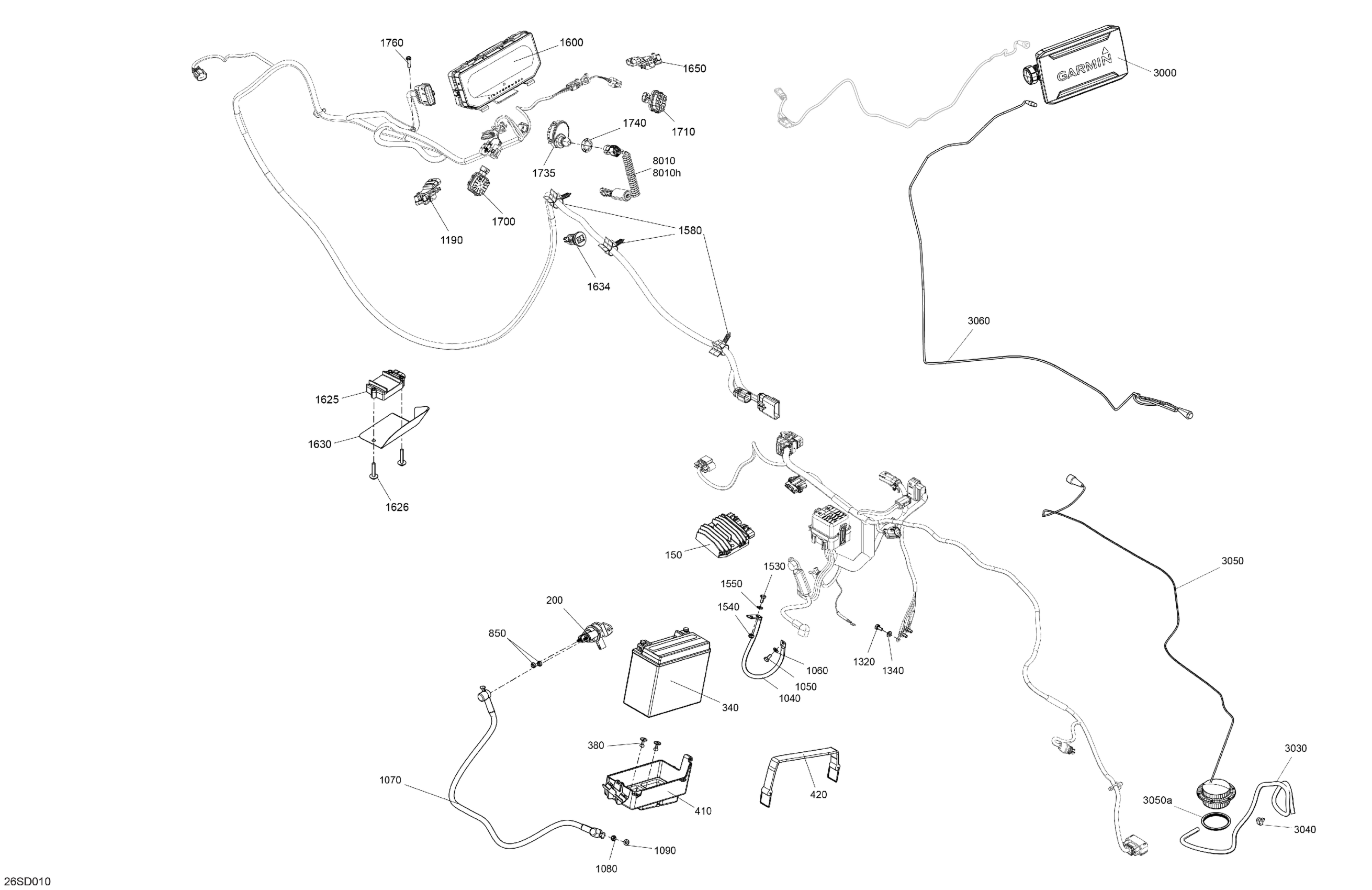

Sea-doo International - EXPLORER 230 - 17RD - Iceland Grey - Audio,2024 08- Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Starter Relay

278003012

$42.49

Battery 12 Volt 18AH

296000449

$92.28

Pop Rivet 3/16"

293150123

$4.29

Battery Support

278003473

$28.99

Fuel Tank Strap

293850095

$19.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Ground Battery Cable

278003451

$39.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

Starter Cable

278003369

$39.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

LH Throttle Sensor

278002284

$119.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

Retainer

278003564

$8.39

Multifunction Gauge Full Size Color

278004181

$1.00

GPS

278004506

$109.99

Hexagonal Cap Screw M6 X35

250000399

$4.44

Bent Deflector

278003976

$10.99

Wiring Grommet

293720121

$4.59

Throttle Position Sensor

278002283

$119.99

Switch

278003821

$126.99

RH Switch Keypad

278003474

$126.99

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

Terminal DESS One Wire

515179305

$74.99

Specialized Nut

278004274

$3.28

Multiple Accessory Harness

278003684

$53.99

Connectors Support

278003734

$2.96

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Mount Dart

710008294

$1.04

Echo Sounder Switch Kit

295100975

$1.00

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

Mount Dart

710008294

$1.04

Transducer | Includes 3000 to 3000a

295100972

$349.99

Seal

292002447

$3.27

Echo sounder Wiring Harness

278003982

$109.99

Safety Lanyard Ass'y, RFID

278003400

$84.99

Mount Dart

710008294

$1.04
