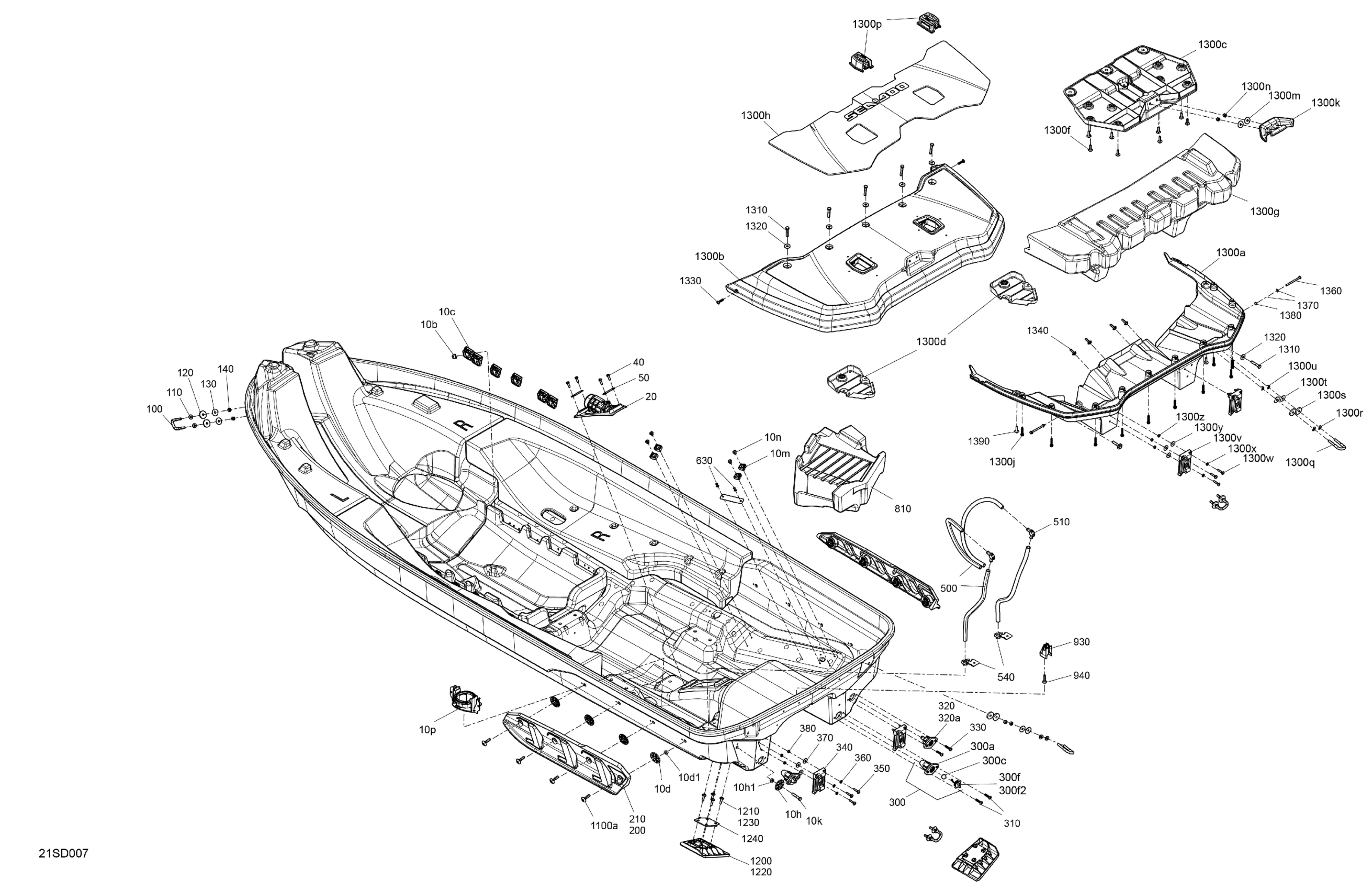

Sea-doo EXPLORER 230 - 17RC - Iceland Grey - Audio,2024 Body - Hull Diagram

#

Description
Price

10b

Rivet | Model-T3

293150067

$2.29

10c

Strap Retaining

270000933

$5.47

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10d1

Hex. Flange Nut M8

233181600

$0.86

10h

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10h1

Hex. Flange Nut M8

233181600

$0.86

10k

Hex. Flange Screw M8 X 25

207682544

$0.90

10m

Strap Anchor

270000854

$5.30

10n

Pop Rivet 3/16

293150186

$1.63

10p

Transducer Support

292002128

$6.99

20

Hull Insert

293450384

$28.57

40

Hex. Flange Screw M6.81 x 20

243162060

$3.30

50

Reinforcement

291004907

$1.86

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

120

Rubber Washer

293830037

$2.75

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

200

RH Sponson

292001953

$53.27

210

LH Sponson

292001954

$63.67

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

300a

Through Hull Fitting

292002765

$6.08

300c

Floating Ball

293830080

$5.56

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

300f2

O-Ring

293300067

$0.85

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$9.30

320a

Through Hull Fitting

292002765

$6.08

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

340

Ladder Trim Fastener

292002697

$6.59

350

Truss Cone Torx Screw M6 X 30

250000924

$6.15

360

Stainless Flat Washer M6

234061600

$0.25

370

Flat Washer M6.6 X 22

250200022

$1.87

380

Elastic Stop Nut M6, Brass

232561200

$3.51

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

510

Fitting Elbow 90°

293710152

$14.92

540

Plate

292002935

$11.00

630

Avdel Rivet 3/16"

293150037

$0.47

810

Cooler Float

292002011

$36.89

930

Strap Anchor

270000988

$8.46

940

Hexagonal Cap Screw M6 X35

250000399

$3.61

1100a

Torx Head Screw M8 X 35

250001215

$4.84

1200

LH Trim Tab

292002102

$14.27

1210

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1220

RH Trim Tab

292002103

$14.27

1230

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1240

Gasket

277002171

$3.48

1300a

Hull Extension

292002138

$154.67

1300b

Black, Body Extension

292002526

$108.52

1300c

Black, Body Extension Reinforcement

292002528

$55.35

1300d

Lateral Reinforcement Body Extension

292002530

$45.47

1300f

Hexagonal Cap Screw M6.8 X 25

250001070

$3.06

1300g

Extension Float

292002529

$90.32

1300h

Anti Slip Mat

292002527

$96.17

1300j

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

1300k

Cleat

291004597

$19.47

1300m

Flat Washer 8 mm, Stainless

250200175

$1.29

1300n

Hex. Elastic Nut M8 Brass

232581200

$1.29

1300p

Linq Bases Kit

295100858

$21.42

1300q

U-Clamp

292000933

$32.47

1300r

Flat Washer M8.5 x 18

293050001

$1.29

1300s

Rubber Washer

293830037

$2.75

1300t

Flat Washer 8 mm, Stainless

250200175

$1.29

1300u

Hex. Elastic Nut M8 Brass

232581200

$1.29

1300v

Ladder Trim Fastener

292002697

$6.59

1300w

Truss Cone Torx Screw M6 X 30

250000924

$6.15

1300x

Stainless Flat Washer M6

234061600

$0.25

1300y

Flat Washer M6.6 X 22

250200022

$1.87

1300z

Elastic Stop Nut M6, Brass

232561200

$3.51

1310

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1320

Flat Washer

279000336

$8.35

1330

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1340

Hexagonal Cap Screw M6.8 X 25

250001070

$3.06

1360

Hex. Screw M6 x 80

207068060

$1.99

1370

Stainless Flat Washer M6

234061600

$0.25

1380

Elastic Stop Nut M6, Brass

232561200

$3.51

1390

Hexagonal Cap Screw M6.8 X 25

250001070

$3.06
