Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

151

Hex. Flange Screw K50 X 25

250000680

$1.67

200

Starter Relay

278003012

$40.27

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

380

Pop Rivet 3/16"

293150123

$3.94

410

Battery Support

278003473

$26.09

420

Fuel Tank Strap

293850095

$16.39

850

Elastic Stop Nut M6, Brass

232561200

$4.03

1040

Ground Battery Cable

278003451

$35.79

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1060

Stainless Flat Washer M6

234061600

$0.28

1070

Starter Cable

278003369

$35.79

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1540

Elastic Stop Nut M6, Brass

232561200

$4.03

1550

Stainless Flat Washer M6

234061600

$0.28

1580

Retainer

278003564

$6.57

1585

Connector Support

515179692

$1.87

1600

Multifunction Gauge Full Size Color

278004181

$1,062.66

1625

GPS

278004506

$98.48

1626

Hexagonal Cap Screw M6 X35

250000399

$4.15

1634

Wiring Grommet

293720121

$4.12

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278003821

$116.39

1710

RH Switch Keypad

278003474

$116.39

1731

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

1732

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

1735

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

1736

Mount Dart

710008294

$0.99

1738

Retainer

278003564

$6.57

1740

Specialized Nut

278004274

$3.12

1750

Multiple Accessory Harness

278003684

$47.73

1755

Connectors Support

278003734

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.34

3000

Echo Sounder Switch Kit

295100975

$1,074.99

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

3040

Mount Dart

710008294

$0.99

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.01

3060

Echo sounder Wiring Harness

278003982

$96.24

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13

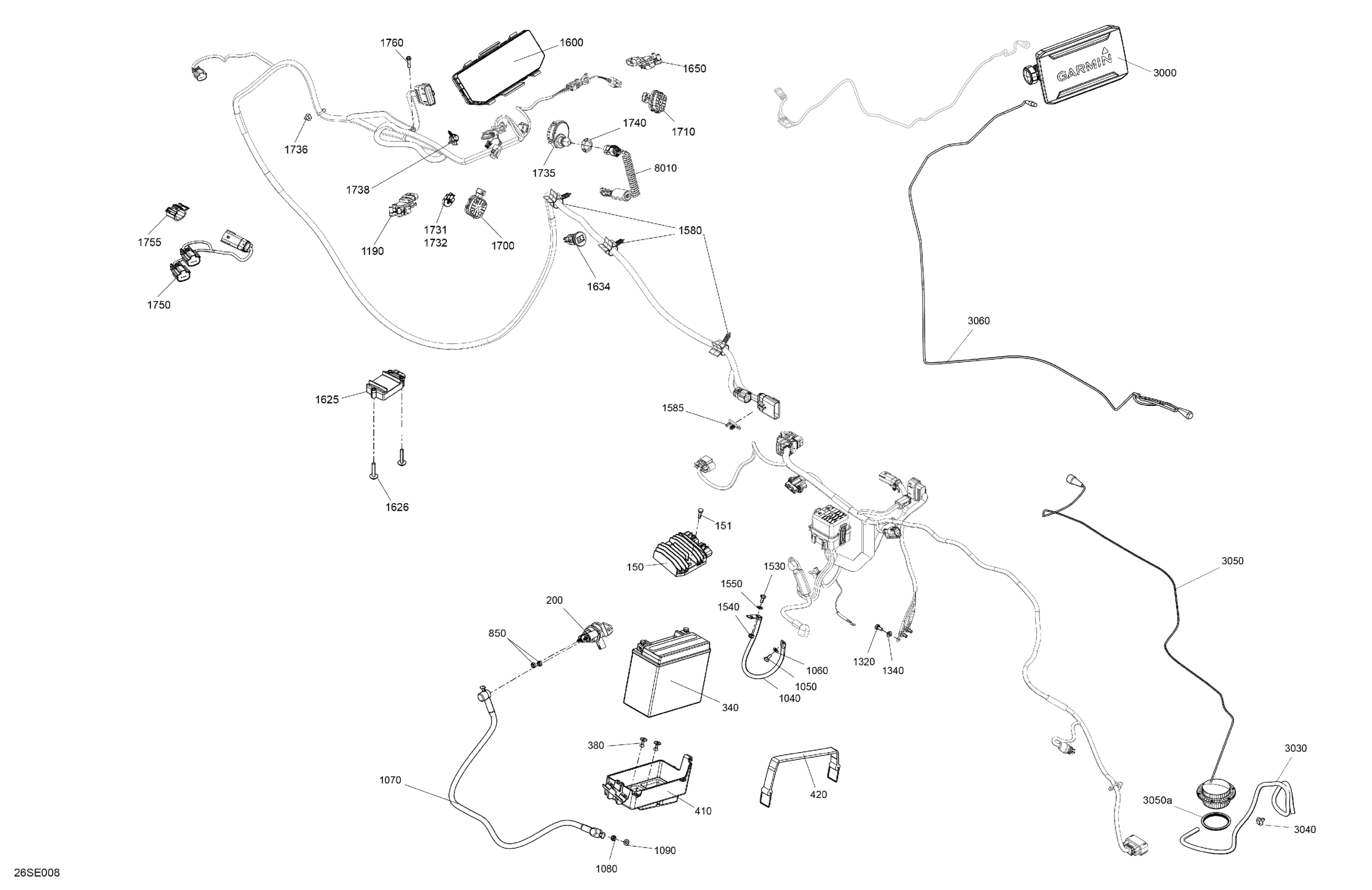

Sea-doo EXPLORER - 170 - 17SA - Iceland Grey - Audio, 2025 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

Hex. Flange Screw K50 X 25

Starter Relay

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Pop Rivet 3/16"

Battery Support

Fuel Tank Strap

Elastic Stop Nut M6, Brass

Ground Battery Cable

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Starter Cable

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

LH Throttle Sensor

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Hex. Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

Retainer

Connector Support

Multifunction Gauge Full Size Color

GPS

Hexagonal Cap Screw M6 X35

Wiring Grommet

Throttle Position Sensor

Switch

RH Switch Keypad

Start/Stop Switch This part replaces 296000440.

Start/Stop Switch This part replaces 296000440.

Terminal DESS CAN | CARB Vehicle

Mount Dart

Retainer

Specialized Nut

Multiple Accessory Harness

Connectors Support

Hex. Screw 10-14 X 7/8”

Echo Sounder Switch Kit

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Mount Dart

Transducer | Includes 3000 to 3000a

Seal

Echo sounder Wiring Harness

Safety Lanyard Ass'y, RFID
