07- Body - System

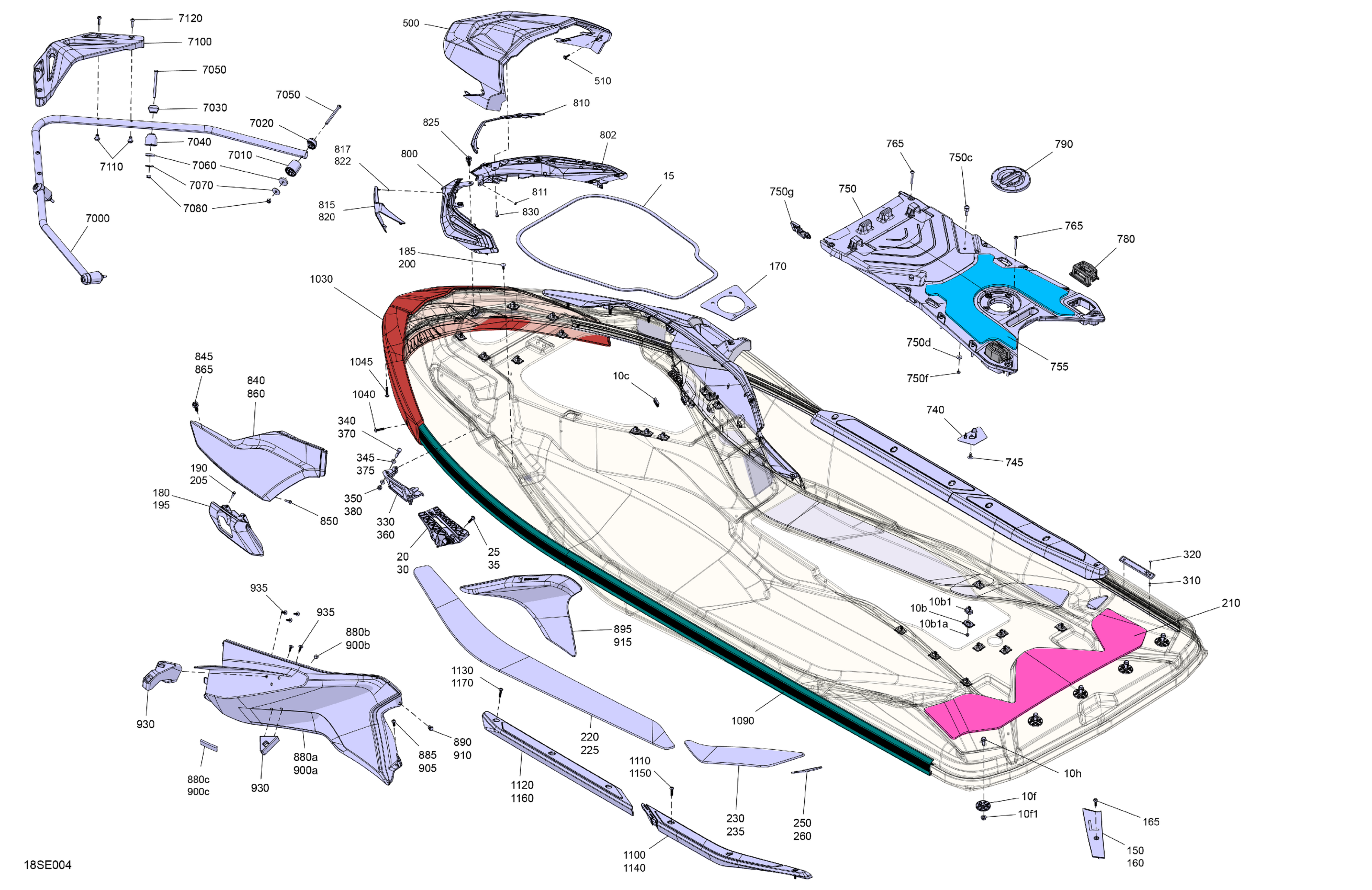

Sea-doo International - EXPLORER - 170 - 17SB - Iceland Grey - Audio, 2025 07- Body - System Diagram
#
10b
Nut Housing M6 Ass'y | Includes 10b to 10b1a
291006093
$2.39
10b1
Housing Nut Overmolded | Includes 2060 to 2060a
291004662
$2.00
10b1a
Elastic Stop Nut M6, Brass
232561200
$4.23
10c
Anchorage Tie Wrap
293750109
$1.25
10f
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
10f1
Hex. Flange Nut M8
233181600
$1.05
10h
Hex. Flange Screw M8 X 25
207682544
$1.35
15
Gasket
293250401
$12.11
20
LH Support
291004714
$10.99
25
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
30
RH Support
291004715
$12.49
35
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
150
LH Shim
291005176
$16.49
160
RH Shim
291005177
$16.49
165
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
170
Gasket
293250451
$23.99
180
LH Shell Cleat
291004661
$10.99
185
Black, Dart
293730011
$0.99
190
Hex. Screw 10-14 X 7/8”
211000023
$3.59
195
RH Shell Cleat
291004719
$10.99
200
Black, Dart
293730011
$0.99
205
Hex. Screw 10-14 X 7/8”
211000023
$3.59
210
Deck Anti Slip Mat
291005817
$51.99
220
LH Front Anti Slip Mat
291005351
$33.99
225
RH Front Anti Slip Mat
291005350
$33.99
230
LH Rear Anti Slip Mat
291005353
$17.20
235
RH Rear Anti Slip Mat
291005352
$17.20
250
LH Anti Slip Mat
291005883
$5.50
260
RH Anti Slip Mat
291005884
$5.50
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
330
LH Cleat
291004559
$9.79
340
Hex. Screw M8 X 35
207083560
$1.47
345
Stainless, Flat Washer 8 mm
234081600
$0.55
350
Hex. Elastic Nut M8 Brass
232581200
$2.22
360
RH Cleat
291004720
$9.79
370
Hex. Screw M8 X 35
207083560
$1.47
375
Stainless, Flat Washer 8 mm
234081600
$0.55
380
Hex. Elastic Nut M8 Brass
232581200
$2.22
500
Deep Black, Hood
291005579
$97.99
510
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
740
Hose Protector
291004941
$4.69
745
Black, Dart
293730011
$0.99
750
Acces Cover Ass'y | Includes 750 to 750g
291005876
$219.99
750c
STUD - Call your local BRP dealership This part replaces 291004611.
291004611
$25.99
750d
Flat Washer M6, Stainless
234062600
$0.77
750f
Elastic Stop Nut M6, Brass
232561200
$4.23
750g
Seal
291004717
$12.99
755
Deep Black, Rear Mat
291005861
$39.99
765
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
780
Linq Bases Kit
295100858
$13.30
790
Access Cap Ass'y
291004481
$10.99
800
LH Front Hood Grille Ass'y
291005911
$29.99
802
RH Front Hood Grille Ass'y
291005913
$29.99
810
Deep Black, Front Trim
291006090
$28.99
811
Push Nut
250100206
$1.01
815
Iceland Grey, LH Trim
291006108
$28.99
817
Push Nut
250100206
$1.01
820
Iceland Grey, RH Trim
291006107
$28.99
822
Push Nut
250100206
$1.01
825
Dard
293730071
$1.15
830
Hex. Screw 10-14 X 7/8”
211000023
$3.59
840
Iceland Grey, LH Front Body Panel
291004676
$75.99
845
Dard
293730071
$1.15
850
Hex. Screw 10-14 X 7/8”
211000023
$3.59
860
Iceland Grey, RH Front Body Panel
291004775
$75.99
865
Dard
293730071
$1.15
880a
Iceland Grey, LH Central Body Panel
291005824
$159.99
880b
Rubber Bumper
293830005
$8.09
880c
Stopper
278003860
$0.76
885
Screw-Plastite Torx Hd.M6.81X20
250001206
$2.54
890
Tuflok Plastic Rivet
293150230
$1.47
895
Deep Black, LH Knee Pad Ass'y
291005051
$121.99
900a
Iceland Gray, RH Central Body Panel
291004784
$164.99
900b
Rubber Bumper
293830005
$8.09
900c
Stopper
278003860
$0.76
905
Screw-Plastite Torx Hd.M6.81X20
250001206
$2.54
910
Tuflok Plastic Rivet
293150230
$1.47
915
Deep Black, RH Knee Pad Ass'y
291005052
$121.99
930
LH Rod Holder Top Adapter
295100948
$31.99
935
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
1030
Front Bumper
291004452
$77.49
1040
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1045
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
1090
Bumper 2775±25mm
291004468
$134.99
1100
Neon Yellow, LH Rear Footrest Ass'y
291005786
$64.99
1110
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
1120
Neon Yellow, LH Front Footrest Ass'y
291005788
$64.99
1130
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
1140
Neon Yellow, RH Rear Footrest Ass'y
291005790
$64.99
1150
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
1160
Neon Yellow, RH Front Footrest Ass'y
291005792
$64.99
1170
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
7000
Neon Yellow, Front Tube
269801493
$180.99
7010
Deep Black, Rear Lower Anchorage Tube
269801147
$14.76
7020
Deep Black, Upper Rear Anchorage Tube
269801146
$14.76
7030
Deep Black, Upper Front Anchorage Tube
269801145
$14.76
7040
Deep Black, Front Lower Anchorage Tube
269801144
$14.76
7050
Socket Head Screw M8 X 90
250001227
$8.15
7060
Rubber Washer
293830037
$2.68
7070
Flat Washer 8 mm, Stainless
250200175
$3.06
7080
Hex. Elastic Nut M8 Brass
232581200
$2.22
7100
Support Tube
269801193
$46.99
7110
Brass Insert
511001251
$4.02
7120
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
