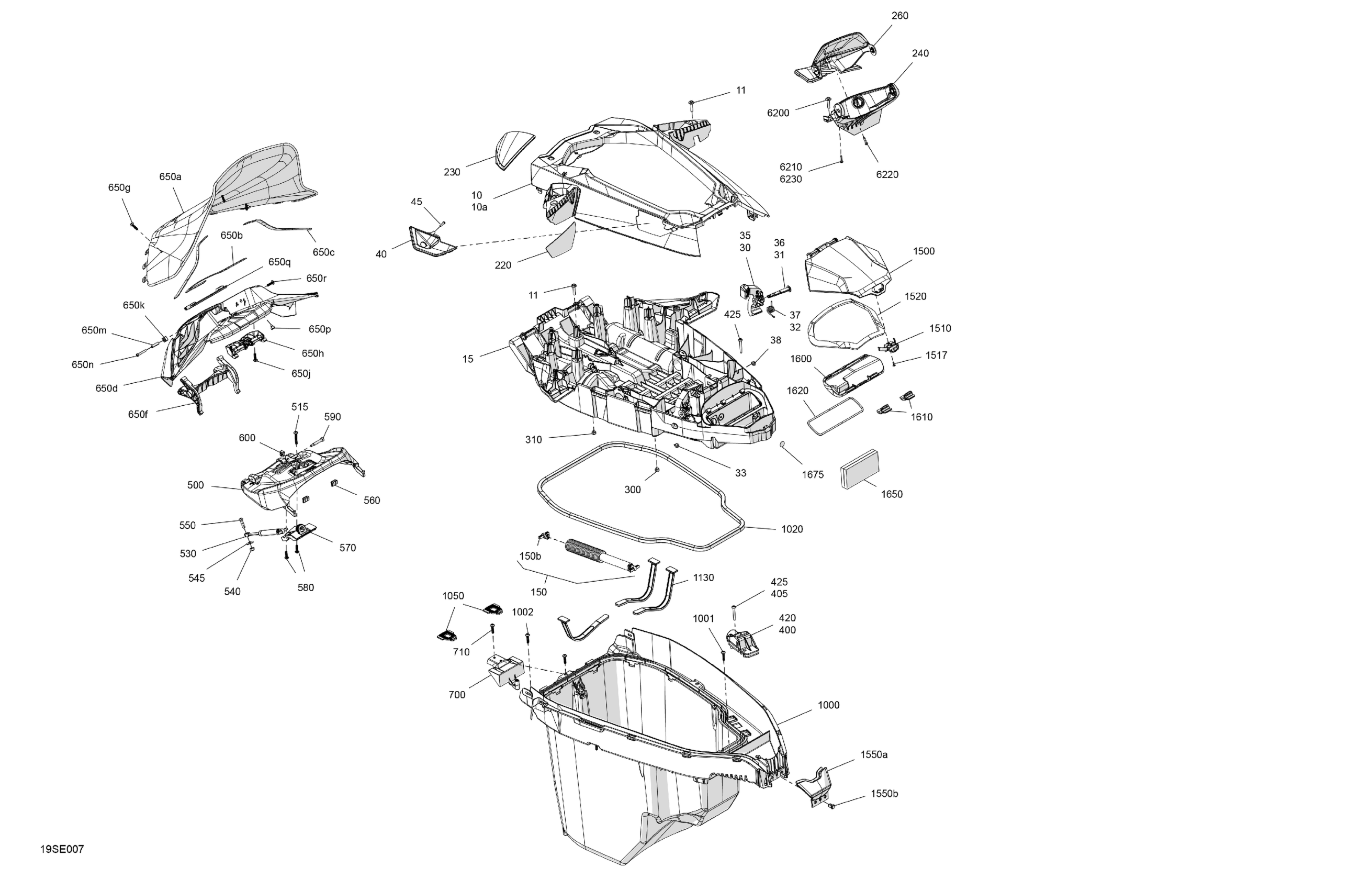

Sea-doo EXPLORER - 170 - 17SA - Iceland Grey - Audio, 2025 Body - Front Cover Diagram

#

Description
Price

10

Perforated Upper Hood | Includes 10 to 10a

269502481

$178.33

10a

Outer Skin

269502394

$182.06

11

Hexagonal Cap Screw M6 X35

250000399

$4.15

15

Inner Skin

269502555

$151.46

30

LH Latch

269502267

$27.58

31

Pin

269502536

$14.90

32

Latch Spring

269502268

$23.85

33

Rubber Bumper

293830005

$6.12

35

RH Latch

269502299

$27.58

36

Pin

269502536

$14.90

37

Latch Spring

269502268

$23.85

38

Rubber Bumper

293830005

$6.12

40

DESS Key Support

277002322

$13.09

45

Plastite Torx Screw #10 X 7/8"

250001196

$3.66

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$90.27

150b

Shock Absorber End Fitting

269501984

$10.19

220

LH Mirror Glass

269502274

$82.81

230

Deep Black, LH Mirror Cover

269502427

$49.97

240

Echo Sounder Support

269502551

$206.69

260

Deep Black, Echosounder Deflector

269502375

$99.97

300

Rubber Bumper

293830005

$6.12

310

Rubber Bumper

293830005

$6.12

400

LH Latch Base

269502385

$15.64

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

420

RH Latch Base

269502386

$15.64

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

500

Upper Windshield Trim

269502450

$33.55

515

Plastite Torx Screw Cone HD. M6.81X

250001144

$4.54

530

Shock Absorber HPG

269502505

$147.73

540

Hex. Elastic Nut M8 Brass

232581200

$1.48

545

Flat Washer 8 mm, Stainless

234082600

$2.27

550

Torx Screw M8 X 30

250001225

$8.76

560

Rubber Stopper

269801254

$6.18

570

Molded Guide

269801253

$11.72

580

Torx Screw Plastite M6

250000466

$6.45

590

Socket Head Screw M6 X 50

250001230

$11.94

600

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

650a

Windshield Ass'y

269801275

$347.73

650b

Joint

269502526

$9.24

650c

Joint

269502529

$9.24

650d

Windshield Support

269801090

$62.66

650f

Central Pivot Arm

269801117

$55.19

650g

Plastite Torx Screw M6.81X25

250001231

$1.61

650h

Windshield Latch

269801251

$17.13

650j

Plastite Torx Screw M6.81X25

250001231

$1.61

650k

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

650m

Socket

269801250

$8.88

650n

Socket Screw M6 X 40

205464060

$2.12

650p

Rubber Bumper

293830005

$6.12

650q

Air Deflector

269801309

$33.55

650r

Plastite Torx Screw M6.81X25

250001231

$1.61

700

Shock Base

269502282

$23.10

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1000

Bin Compartment

264000144

$109.67

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1020

Gasket

293250478

$11.87

1050

Adjustment Hook

269502325

$8.21

1130

Strap

269502493

$13.24

1500

Glove Box Door

264000132

$58.93

1510

Glove Box Latch

264000133

$17.88

1517

Screw K40 X 10

250001119

$1.88

1520

Cover Gasket

293250717

$26.84

1550a

Glove Box Trim

269502538

$17.13

1550b

Tuflok Plastic Rivet

293150230

$1.39

1600

Box Cover

264000158

$11.72

1610

Clip

269501718

$14.90

1620

Gasket

293250591

$14.46

1650

Sealed Compartment Foam

264000135

$10.58

1675

Vent Membrane

264000137

$10.37

6200

Hexagonal Cap Screw M6 X35

250000399

$4.15

6210

Hex. Screw 10-14 X 7/8”

211000023

$3.34

6220

Hex. Screw 10-14 X 7/8”

211000023

$3.34

6230

Hex. Screw 10-14 X 7/8”

211000023

$3.34
