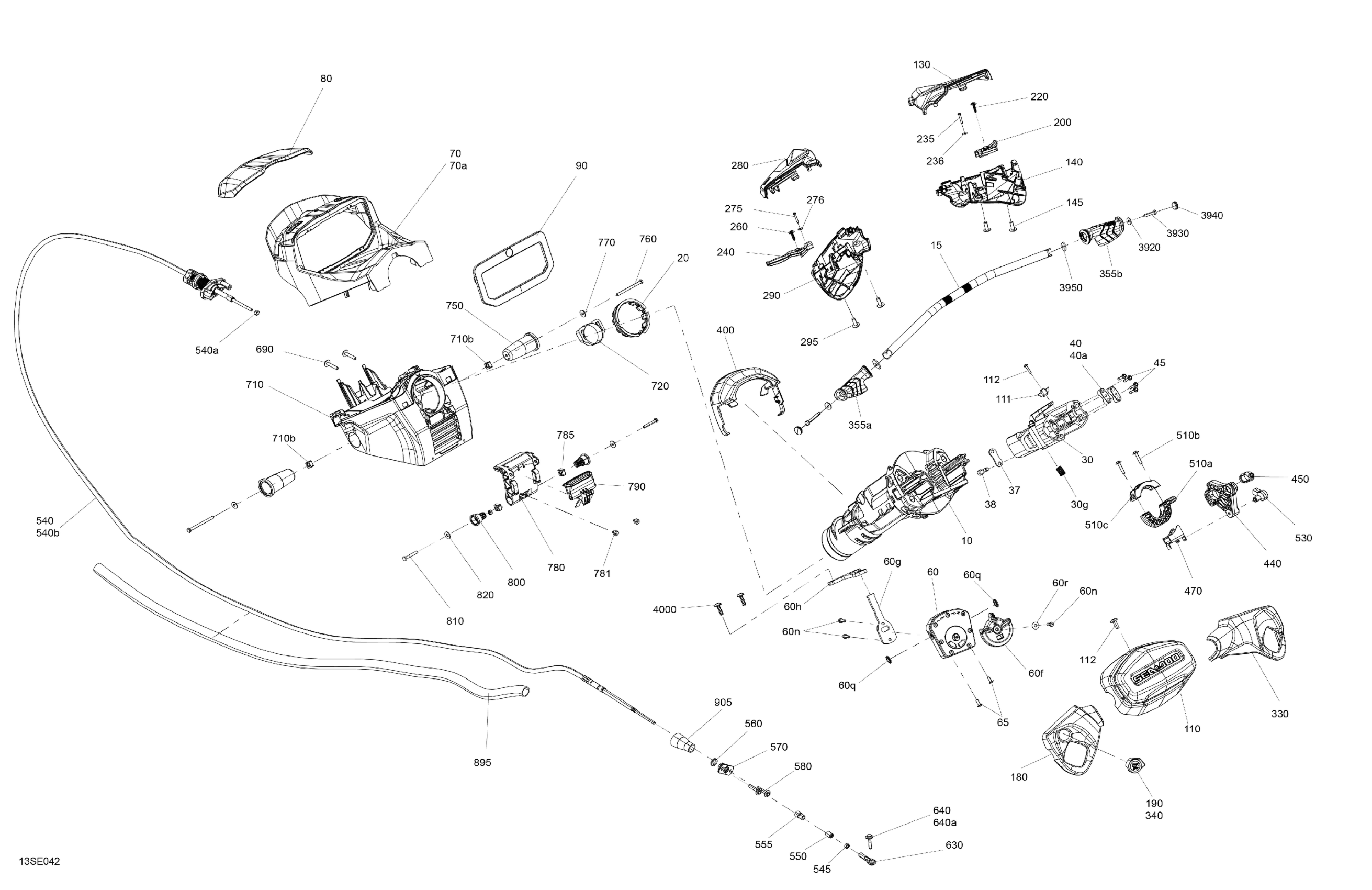

Sea-doo EXPLORER - 170 - 17SA - Iceland Grey - Audio, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002298

$154.67

15

Neon Yellow, Handlebar

277002175

$101.51

20

Wear Ring

277001874

$9.74

30

Handlebar Adjust Ass'y | Includes 30 to 30g

277002376

$124.12

30g

Spring

506152820

$6.59

37

Plate

277002313

$14.92

38

Socket Head Screw M8 X 30, Scotch Grip

205583060

$2.89

40

Steering Support | Includes 40 to 40a

506152751

$10.09

40a

Not Available As Spare Parts

XXX

Unavailable

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.25

60

Damper | Includes 60 to 60r

506153422

$263.05

60f

Suspension Adjuster

277002226

$17.66

60g

Central Arm

277002300

$8.51

60h

Upper Arm

277002375

$37.66

60n

Socket Head Screw M4 X 16

250001237

$9.94

60q

Sealing Washer

250200114

$3.61

60r

Flat Washer 4 mm, Stainless

234042600

$0.92

65

Torx Truss Screw M6 X 16

250000922

$1.56

70

Gauge Support | Includes 70 to 70a

277002417

$41.51

70a

Gauge Support

277002198

$35.72

80

Cluster Cover

277002160

$20.77

90

Speed Gauge Trim

705015381

$17.52

110

Deep Black / Lava Grey, Steering Pad

277002330

$22.07

111

Steering Pad Spacer

277002377

$10.47

112

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

130

RH Upper Housing

277002040

$85.77

140

RH Lower Housing

277002036

$79.92

145

Torx Truss Screw M6 X 16

250000922

$1.56

180

LH Cover

277002314

$13.62

190

Red Button Switch

277002327

$7.46

200

Hand Lever Accelerator

277002138

$30.52

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

280

LH Upper Housing

277002041

$85.77

290

LH Lower Housing

277002035

$79.92

295

Torx Truss Screw M6 X 16

250000922

$1.56

330

RH Cover

277002316

$13.62

340

Button Switch

277002320

$7.27

355a

Deep Black, LH Handle Grip

277001958

$15.57

355b

Deep Black, RH Handle Grip

277001946

$15.57

400

Steering Column Trim

277002296

$10.71

440

Steering Arm Kit

295501183

$7.01

450

Steering Arm Kit

295501183

$7.01

470

Spacer

277001654

$11.40

510a

Arm

277001987

$7.01

510b

Hexagonal Cap Screw M6 X35

250000399

$3.61

510c

C Clamp

277002085

$7.19

530

End Fitting Cable

277002119

$16.87

540

Steering Cable | Includes 540 to 540b

277002448

$223.57

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

640a

Hex Screw SEMS M6X35, SS

250000969

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$90.32

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

720

Wear Ring

277002318

$12.43

750

Steering Support Pivot

277001605

$14.92

760

Hex Screw M6 X 80

207168060

$6.55

770

Flat Washer M6, Stainless

234062600

$0.64

780

Adjustment Handle

277001996

$7.05

781

Rubber Bumper

293830005

$5.33

785

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

790

Lock

277002010

$5.04

800

Pivot

277001652

$12.43

810

Hex. Screw M6 X 40

207064060

$1.40

820

Flat Washer M6, Stainless

234062600

$0.64

895

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

905

Rope Guide

277002150

$0.75

3920

Flat Washer M6, Stainless

234062600

$0.64

3930

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

3940

Black, Cap

277000203

$7.48

3950

Insert Grip Handle

277001863

$7.70

4000

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39
