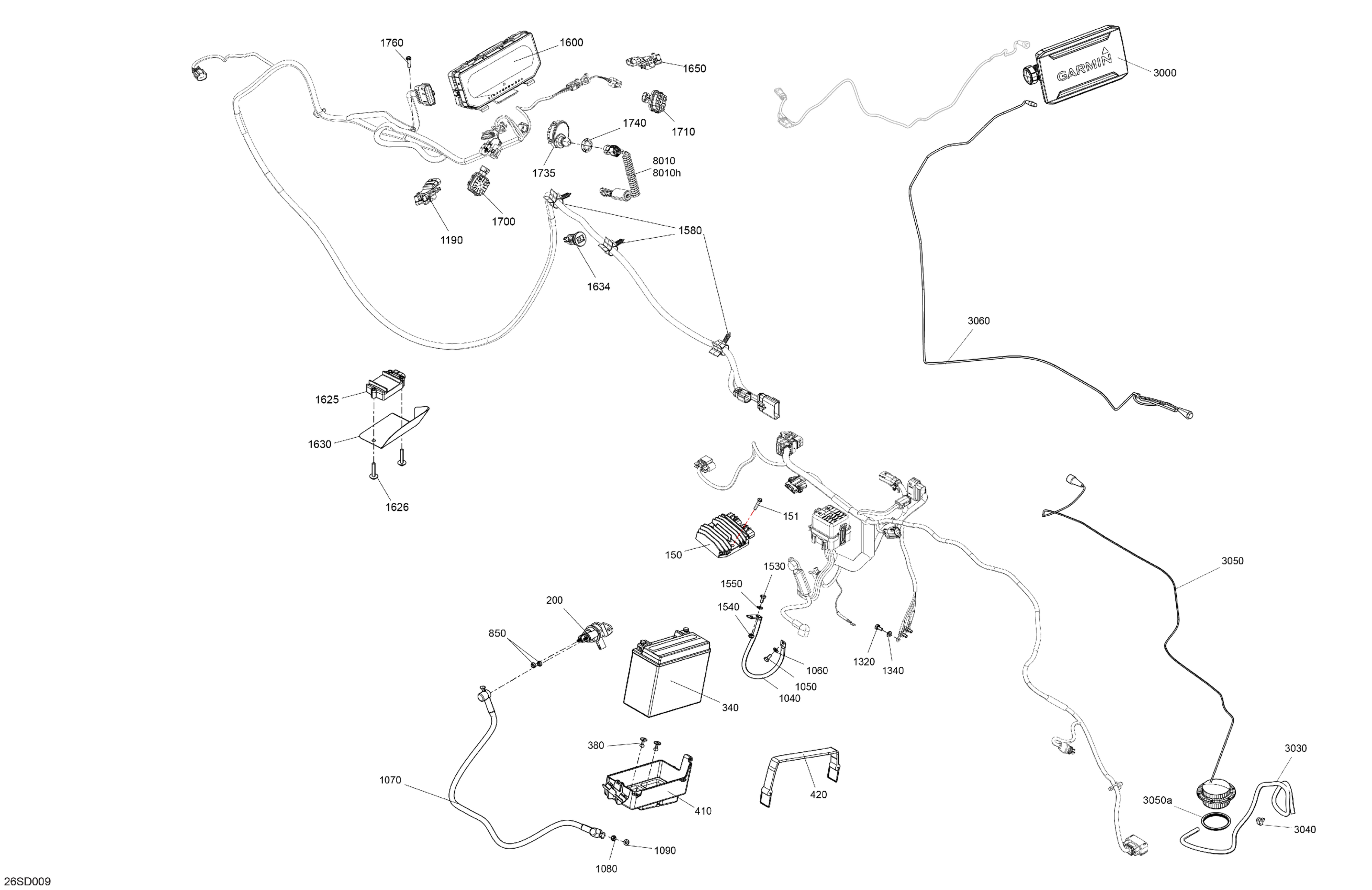

Sea-doo International - EXPLORER 170 - 17RB - Iceland Grey - Audio,2024 08- Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

151

Hex. Flange Screw K50 X 25

250000680

$1.89

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Multifunction Gauge Full Size Color

278004181

$1.00

1625

GPS

278004506

$109.99

1626

Hexagonal Cap Screw M6 X35

250000399

$4.44

1630

Bent Deflector

278003976

$10.99

1634

Wiring Grommet

293720121

$4.59

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1732

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

1740

Specialized Nut

278004274

$3.28

1750

Multiple Accessory Harness

278003684

$53.99

1755

Connectors Support

278003734

$2.96

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1770

Mount Dart

710008294

$1.04

3000

Echo Sounder Switch Kit

295100975

$1.00

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

3040

Mount Dart

710008294

$1.04

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.27

3060

Echo sounder Wiring Harness

278003982

$109.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8010h

Mount Dart

710008294

$1.04
