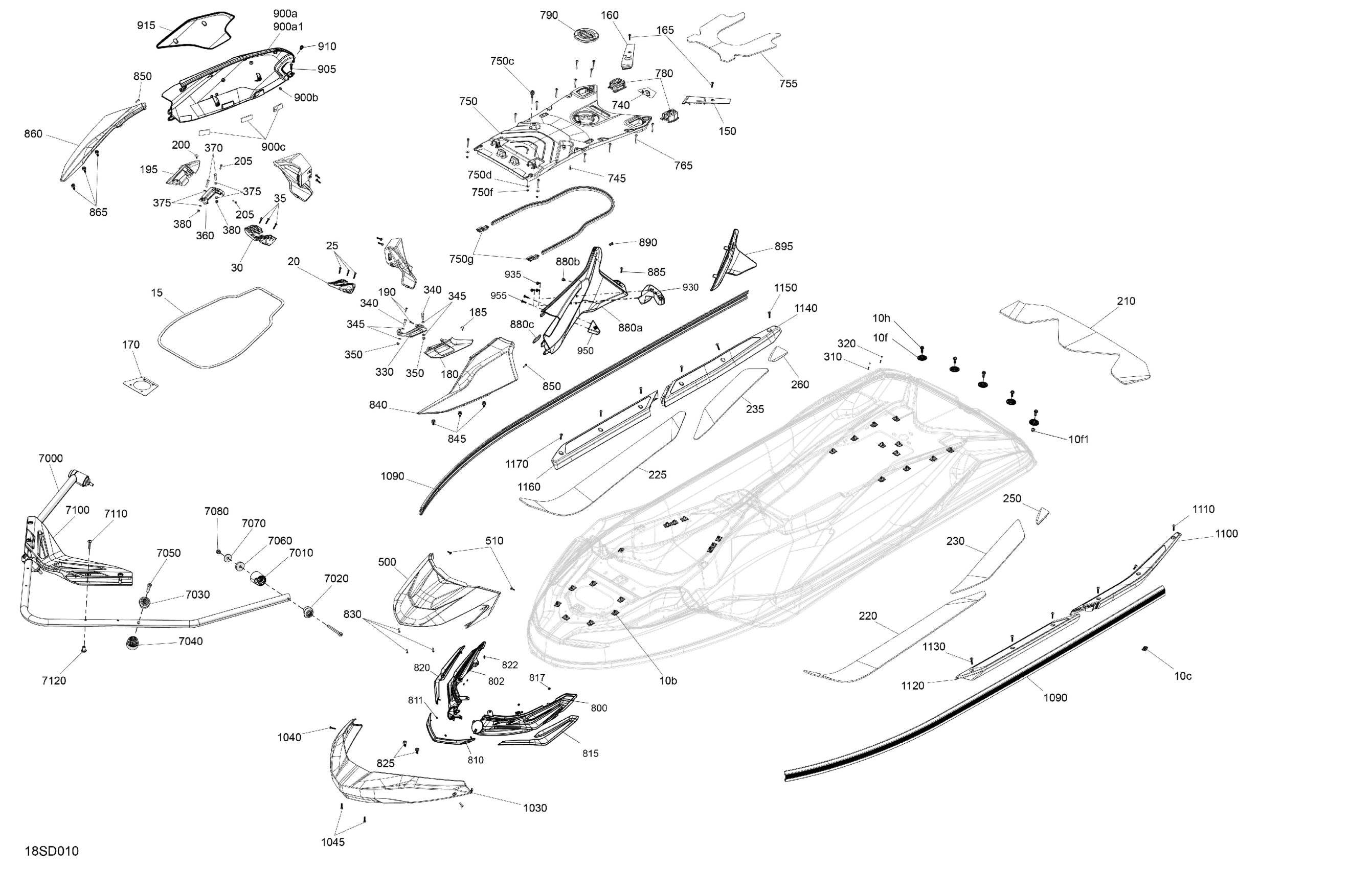

Sea-doo EXPLORER 170 - 17RA - Iceland Grey - Audio,2024 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

Anchorage Tie Wrap

293750109

$1.25

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

Hex. Flange Nut M8

233181600

$1.05

Hex. Flange Screw M8 X 25

207682544

$1.35

Gasket

293250401

$12.11

LH Support

291004714

$10.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

RH Support

291004715

$12.49

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

LH Shim

291005176

$16.49

RH Shim

291005177

$16.49

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Gasket

293250451

$23.99

LH Shell Cleat

291004661

$10.99

Black, Dart

293730011

$0.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

RH Shell Cleat

291004719

$10.99

Black, Dart

293730011

$0.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Deck Anti Slip Mat

291005817

$51.99

LH Front Anti Slip Mat

291005351

$33.99

RH Front Anti Slip Mat

291005350

$33.99

LH Rear Anti Slip Mat

291005353

$17.20

RH Rear Anti Slip Mat

291005352

$17.20

LH Anti Slip Mat

291005883

$5.50

RH Anti Slip Mat

291005884

$5.50

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

LH Cleat

291004559

$9.79

Hex. Screw M8 X 35

207083560

$1.47

Stainless, Flat Washer 8 mm

234081600

$0.55

Hex. Elastic Nut M8 Brass

232581200

$2.22

RH Cleat

291004720

$9.79

Hex. Screw M8 X 35

207083560

$1.47

Stainless, Flat Washer 8 mm

234081600

$0.55

Hex. Elastic Nut M8 Brass

232581200

$2.22

Deep Black, Hood

291005579

$97.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Hose Protector

291004941

$4.69

Black, Dart

293730011

$0.99

Acces Cover Ass'y | Includes 750 to 750g

291005876

$219.99

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Seal

291004717

$12.99

Deep Black, Rear Mat

291005861

$39.99

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Linq Bases Kit

295100858

$13.30

Access Cap Ass'y

291004481

$10.99

LH Front Hood Grille Ass'y

291005911

$29.99

RH Front Hood Grille Ass'y

291005913

$29.99

Deep Black, Front Trim

291006090

$28.99

Push Nut

250100206

$1.01

Iceland Grey, LH Trim

291006204

Unavailable

Push Nut

250100206

$1.01

Iceland Grey, RH Trim

291006205

Unavailable

Push Nut

250100206

$1.01

Dard

293730071

$1.15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Iceland Grey, LH Front Body Panel

291004676

$75.99

Dard

293730071

$1.15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Iceland Grey, RH Front Body Panel

291004775

$75.99

Dard

293730071

$1.15

Iceland Grey, LH Central Body Panel

291005824

$159.99

Rubber Bumper

293830005

$8.09

Stopper

278003860

$0.76

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

Tuflok Plastic Rivet

293150230

$1.47

Deep Black, LH Knee Pad Ass'y

291005051

$121.99

Iceland Gray, RH Central Body Panel

291004784

$164.99

Iceland Grey, RH Central Body Panel

291004558

$164.99

Rubber Bumper

293830005

$8.09

Stopper

278003860

$0.76

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

Tuflok Plastic Rivet

293150230

$1.47

Deep Black, RH Knee Pad Ass'y

291005052

$121.99

LH Rod Holder Top Adapter

295100948

$31.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

LH Rod Holder Top Adapter

295100948

$31.99

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Front Bumper

291004452

$77.49

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Bumper 2775±25mm

291004468

$134.99

Neon Yellow, LH Rear Footrest Ass'y

291005786

$64.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Neon Yellow, LH Front Footrest Ass'y

291005788

$64.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Neon Yellow, RH Rear Footrest Ass'y

291005790

$64.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Neon Yellow, RH Front Footrest Ass'y

291005792

$64.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Neon Yellow, Front Tube

269801493

$180.99

Deep Black, Rear Lower Anchorage Tube

269801147

$14.76

Deep Black, Upper Rear Anchorage Tube

269801146

$14.76

Deep Black, Upper Front Anchorage Tube

269801145

$14.76

Deep Black, Front Lower Anchorage Tube

269801144

$14.76

Socket Head Screw M8 X 90

250001227

$8.15

Rubber Washer

293830037

$2.68

Flat Washer 8 mm, Stainless

250200175

$3.06

Hex. Elastic Nut M8 Brass

232581200

$2.22

Support Tube

269801193

$46.99

Brass Insert

511001251

$4.02

Screw-Torx Truss Cone Head M6X25

250001116

$4.12
