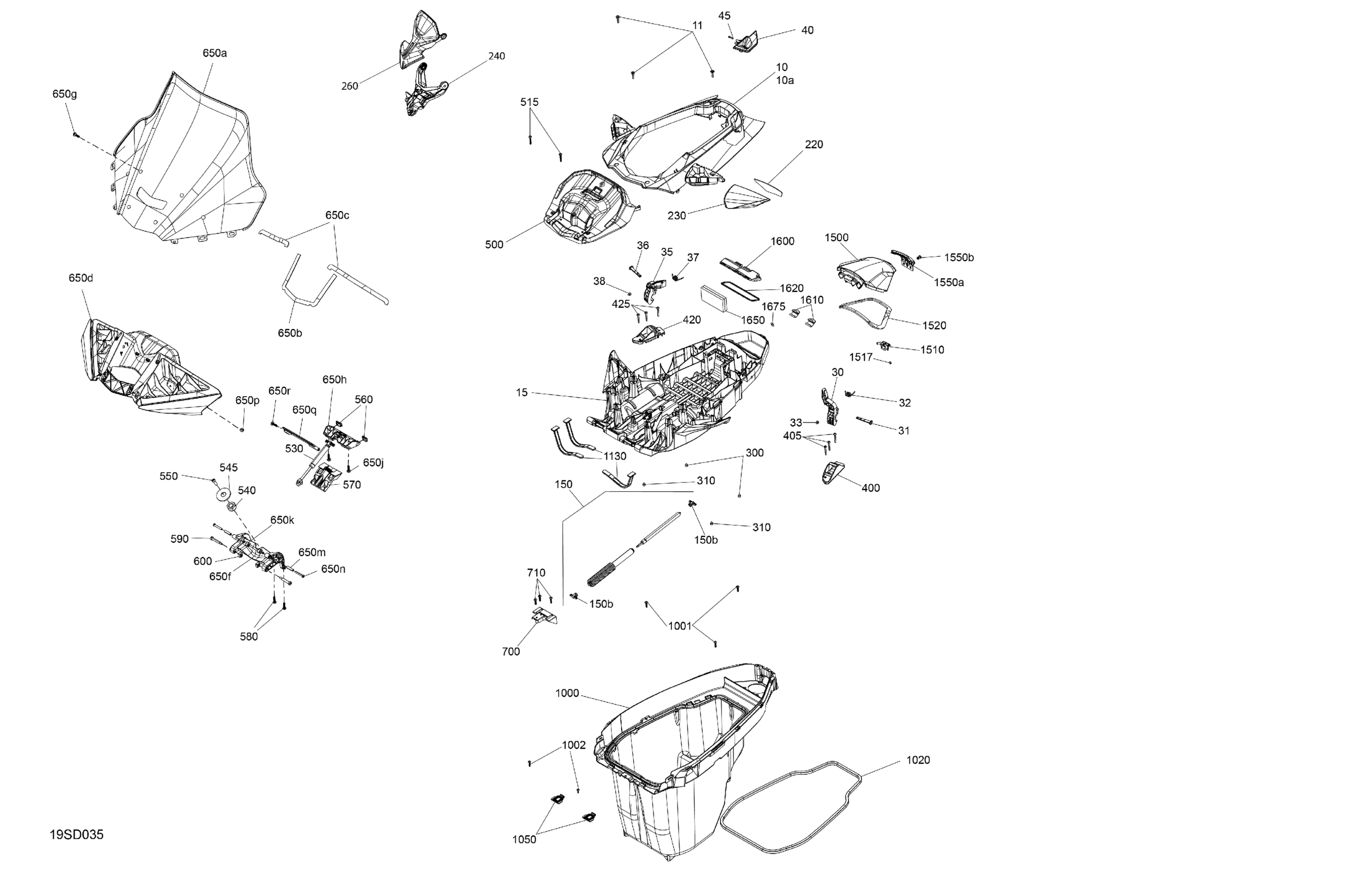

Sea-doo EXPLORER 170 - 17RA - Iceland Grey - Audio,2024 Body - Front Cover Diagram

#

Description
Price

10

Perforated Upper Hood | Includes 10 to 10a

269502481

$199.99

10a

Outer Skin

269502394

$204.99

11

Hexagonal Cap Screw M6 X35

250000399

$4.44

15

Inner Skin

269502555

$169.99

30

LH Latch

269502267

$30.99

31

Pin

269502536

$18.49

32

Latch Spring

269502268

$26.99

33

Rubber Bumper

293830005

$8.09

35

RH Latch

269502299

$30.99

36

Pin

269502536

$18.49

37

Latch Spring

269502268

$26.99

38

Rubber Bumper

293830005

$8.09

40

DESS Key Support

277002322

$15.99

45

Plastite Torx Screw #10 X 7/8"

250001196

$4.61

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$99.99

150b

Shock Absorber End Fitting

269501984

$11.49

220

LH Mirror Glass

269502274

$88.99

230

Deep Black, LH Mirror Cover

269502427

$55.99

240

Echo Sounder Support

269502551

$229.99

260

Deep Black, Echosounder Deflector

269502375

$110.99

300

Rubber Bumper

293830005

$8.09

310

Rubber Bumper

293830005

$8.09

400

LH Latch Base

269502385

$18.99

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

420

RH Latch Base

269502386

$18.99

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

500

Upper Windshield Trim

269502450

$37.99

515

Plastite Torx Screw Cone HD. M6.81X

250001144

$4.76

530

Shock Absorber HPG

269502505

$164.99

540

Hex. Elastic Nut M8 Brass

232581200

$2.22

545

Flat Washer 8 mm, Stainless

234082600

$2.43

550

Torx Screw M8 X 30

250001225

$9.21

560

Rubber Stopper

269801254

$6.89

570

Molded Guide

269801253

$14.49

580

Torx Screw Plastite M6

250000466

$6.98

590

Socket Head Screw M6 X 50

250001230

$12.70

600

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

650a

Windshield Ass'y

269801275

$380.99

650b

Joint

269502526

$10.49

650c

Joint

269502529

$10.49

650d

Windshield Support

269801090

$69.99

650f

Central Pivot Arm

269801117

$61.99

650g

Plastite Torx Screw M6.81X25

250001231

$1.69

650h

Windshield Latch

269801251

$19.49

650j

Plastite Torx Screw M6.81X25

250001231

$1.69

650k

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

650m

Socket

269801250

$9.89

650n

Socket Screw M6 X 40

205464060

$2.22

650p

Rubber Bumper

293830005

$8.09

650q

Air Deflector

269801309

$37.99

650r

Plastite Torx Screw M6.81X25

250001231

$1.69

700

Shock Base

269502282

$25.99

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1000

Bin Compartment

264000144

$124.99

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1020

Gasket

293250478

$13.49

1050

Adjustment Hook

269502325

$10.99

1130

Strap

269502493

$14.30

1500

Glove Box Door

264000132

$65.99

1510

Glove Box Latch

264000133

$21.99

1517

Screw K40 X 10

250001119

$2.40

1520

Cover Gasket

293250717

$29.99

1550a

Glove Box Trim

269502538

$19.49

1550b

Tuflok Plastic Rivet

293150230

$1.47

1600

Box Cover

264000158

$14.49

1610

Clip

269501718

$15.89

1620

Gasket

293250591

$17.99

1650

Sealed Compartment Foam

264000135

$12.99

1675

Vent Membrane

264000137

$12.99
