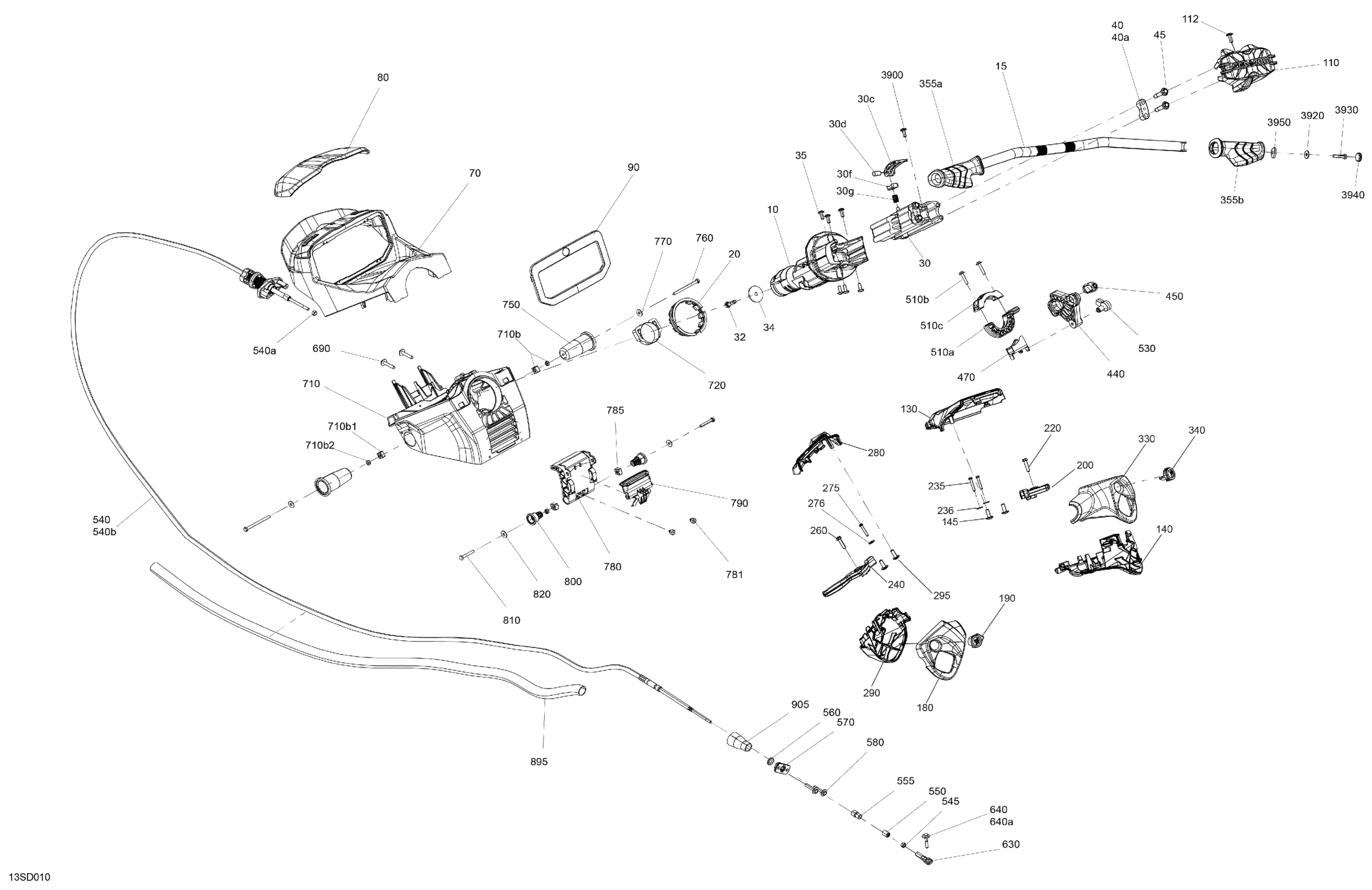

Sea-doo EXPLORER 170 - 17RA - Iceland Grey - Audio,2024 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002111

$214.99

15

Neon Yellow, Handlebar

277002340

$116.49

20

Wear Ring

277001874

$12.17

30

Handlebar Rise Block Adjust Ass'y | Includes 30 to 30g

277002253

$153.49

30c

Anodized Lock Lever

277002094

$38.99

30d

Lever Pin

506153052

$6.89

30f

Compression Bloc

506153045

$3.29

30g

Spring

506152820

$9.09

32

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

34

Flat Washer M8.4 x 40

250200188

$6.03

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

40a

Steering Support | Includes 40 to 40a

506152751

$13.99

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

70

Gauge Support

277002198

$45.99

80

Cluster Cover

277002160

$28.99

90

Speed Gauge Trim

705015381

$22.49

110

Deep Black, Steering Pad

277002005

$28.99

112

Torx Truss Screw M6 X 16

250000922

$1.90

130

RH Upper Housing

277002040

$109.99

140

RH Lower Housing

277002036

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002314

$18.99

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

280

LH Upper Housing

277002041

$109.99

290

LH Lower Housing

277002035

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover

277002316

$18.99

340

Button Switch

277002320

$9.00

355a

Deep Black, LH Handle Grip

277001958

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

440

Steering Arm Kit

295501183

$10.99

450

Steering Arm Kit

295501183

$10.99

470

Spacer

277001654

$15.99

510a

Steering Arm Kit

295501183

$10.99

510b

Hexagonal Cap Screw M6 X35

250000399

$4.44

510c

C Clamp

277002085

$9.19

530

End Fitting Cable

277002119

$20.99

540

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Column Support Ass'y | Includes 710 to 710b2

277002158

$114.99

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

710b1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

710b2

Elastic Stop Nut M6, Brass

232561200

$4.23

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

781

Rubber Bumper

293830005

$8.09

785

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

790

Lock

277002010

$6.49

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

905

Rope Guide

277002150

$0.93

3900

Torx Truss Screw M6 X 16

250000922

$1.90

3920

Flat Washer M6, Stainless

234062600

$0.77

3930

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

3940

Black, Cap

277000203

$9.39

3950

Insert Grip Handle

277001863

$8.83
