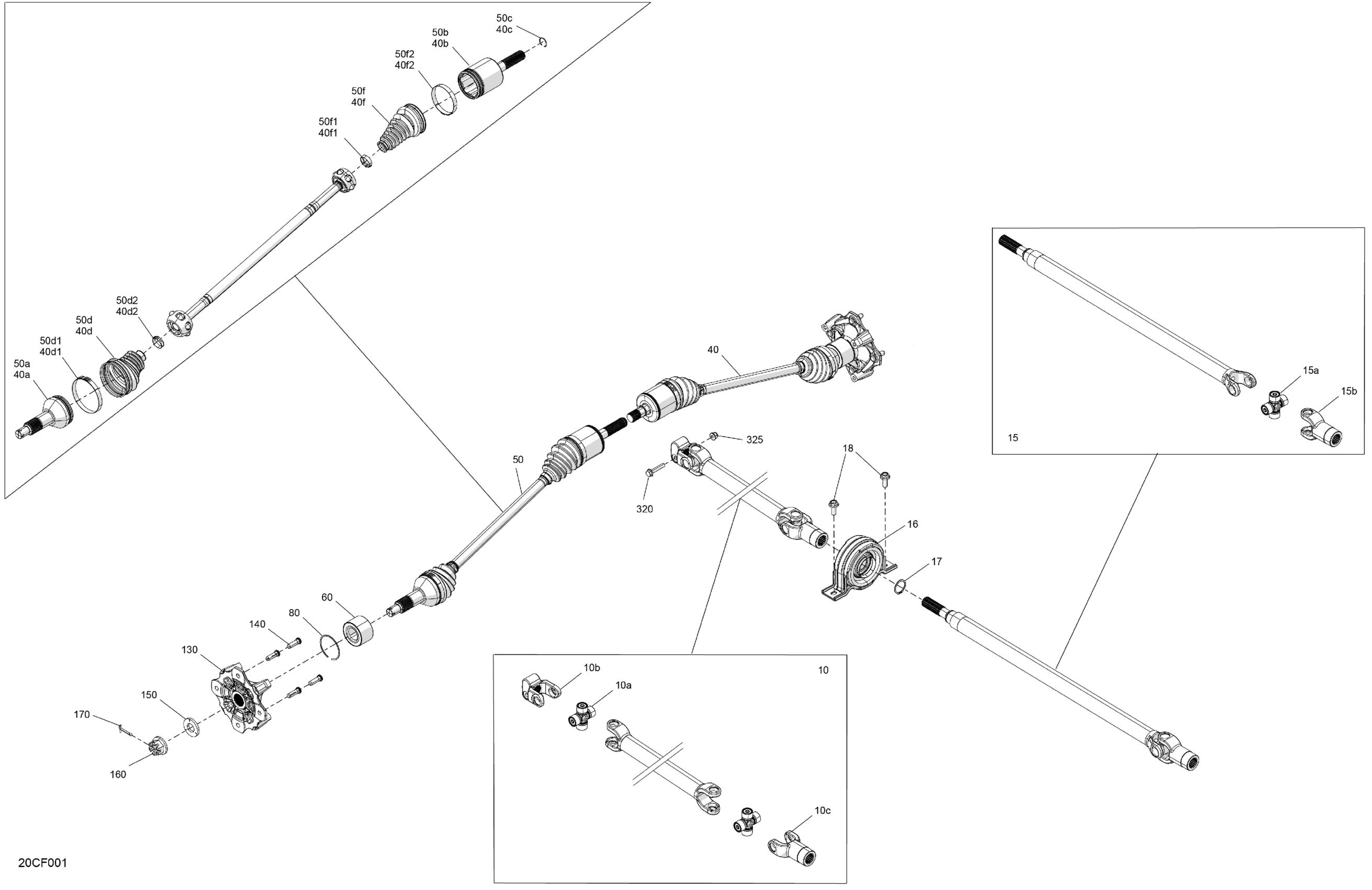

Can-Am Defender MAX - HD10 - DPS - 8LTG - Compass Green - 64" Width, 2026 Drive - Front - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10c

705403285

$203.05

10a

U-Joint Cross Kit

715900829

$78.43

10b

Fixed Yoke

715900400

$59.97

10c

Yoke

715900401

$36.89

Drive Axle Ass'y | Includes 15 to 15b

705403287

$313.82

15a

U-Joint Cross Kit

715900829

$78.43

15b

Yoke

715900401

$36.89

Ball Bearing Ass'y

705403522

$46.12

Snap Ring

293370098

$3.11

Hex. Flange Screw M10 X 20

207502046

$1.74

RH CV Joint | Includes 40 to 40f2

705402407

$232.74

40a

Exterior CV Joint

715900621

$253.82

40b

RH Plunging Joint

715900441

Unavailable

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401345

$41.51

40d1

Oetiker Clamp

715900282

$4.39

40d2

Oetiker Clamp, Small

715900283

$4.39

40f

Boot Kit, Différential Side

705401355

$41.51

40f1

Oetiker Clamp, Small

715900261

$4.39

40f2

Oetiker Clamp, Large

715900262

$7.84

LH CV Joint | Includes 50 to 50f2

705402408

$232.74

50a

Exterior CV Joint

715900621

$253.82

50b

LH Plunging Joint

715900442

Unavailable

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50d1

Oetiker Clamp

715900282

$4.39

50d2

Oetiker Clamp, Small

715900283

$4.39

50f

Boot Kit, Différential Side

705401355

$41.51

50f1

Oetiker Clamp, Small

715900261

$4.39

50f2

Oetiker Clamp, Large

715900262

$7.84

Ball Bearing

293350150

$51.93

Circlip

293370019

$4.98

130

Machined Wheel Hub

705503852

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
