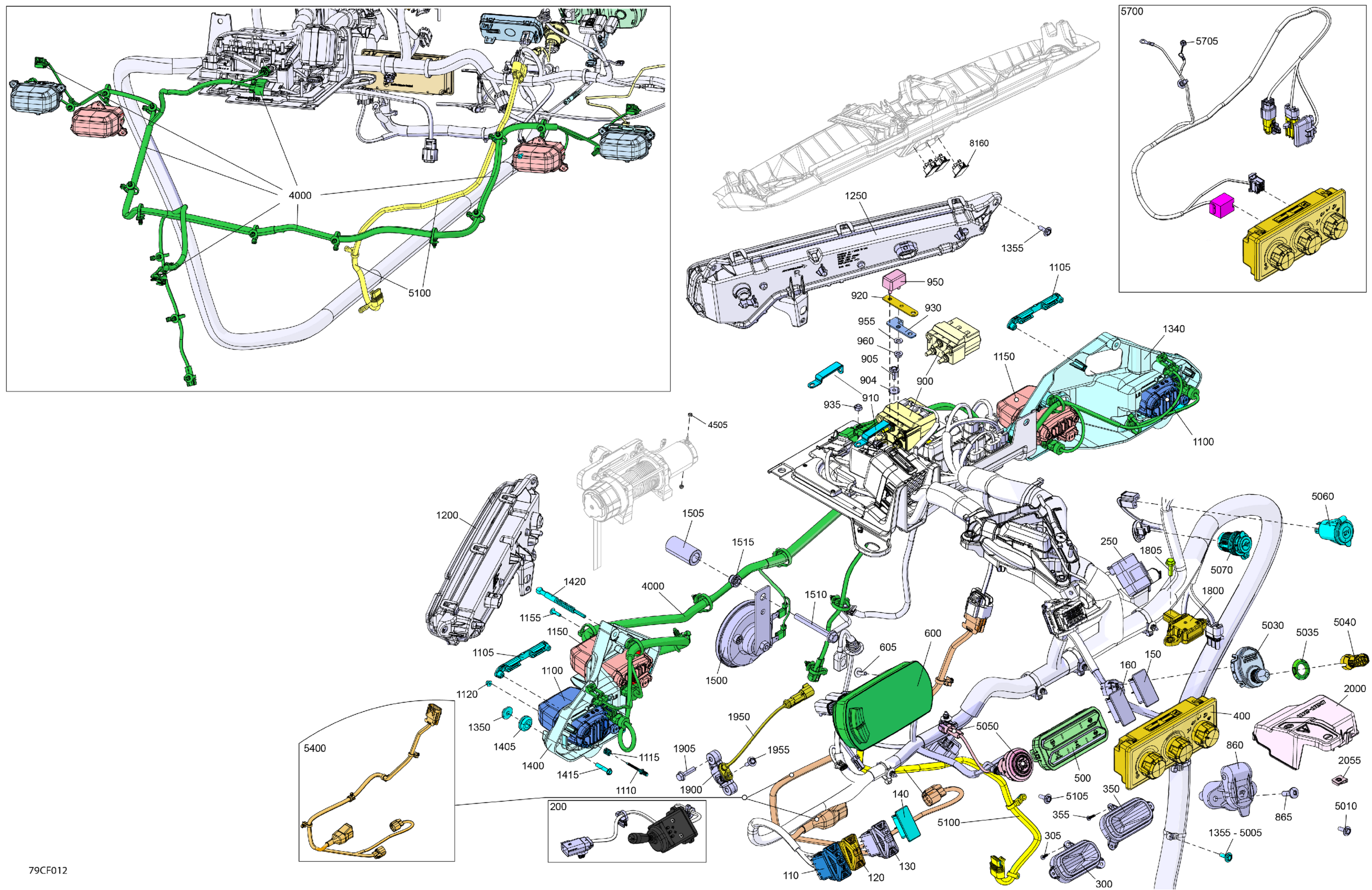

Can-Am Defender - HD9 - DPS - 8ETB - Dark Wildland Camo - 62" Width - CALI, 2026 Electric - Front Section Diagram

Switch Hazard Lights

710008380

$23.05

Winch Switch

710007665

$87.66

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch Hdc

710008382

$27.66

Arm_Turn Signal

710010627

$198.43

Flasher Unit

710003239

$78.43

LH Steering Wheel Trim

709402625

$5.52

Screw Plastite Torx K30 X 12

250001234

$0.55

RH Steering Wheel Trim

709402628

$5.52

Screw Plastite Torx K30 X 12

250001234

$0.55

Temperature Module

710010453

$636.89

Multifunction Switch

710010535

$124.58

Multifunction Compact Gauge

710008298

$364.58

Screw PT Type K-50 X 16

250000959

$1.74

Inlet 3 Pins

710010577

$32.28

Torx Screw K50 X 16

250000720

$1.39

Solenoid

710006991

$59.97

Washer M5

250200025

$0.61

Screw PT Type K-50 X 16

250000959

$1.74

Power Bar

710004772

$11.98

Copper Busbar

710006401

$11.98

Power Bar

710004873

$11.98

Elastic Stop Nut M6, Brass

232561200

$3.51

Circuit Breaker 50 Amp

710007039

$18.43

Lock Washer Helical M6

234161601

$0.92

Hex. Flange Nut M5

250100071

$1.77

Low Beam Light

710008088

$156.89

Support Pivot | Not Shown

517309049

$2.66

Threaded Rod | Not Shown

517309133

$6.20

Compression Spring | Not Shown

517309058

$7.23

Specialized Nut | Not Shown

517309134

$0.98

HIgh Beam Light

710006910

$156.89

Torx-Truss Pt K40 X 16

250000759

$1.74

Auxiliary Light Led Flasher Lamp

710009123

$184.58

Auxiliary LED Light Flasher Lamp

710009124

$184.58

RH Headlight Support

710009206

$42.28

Shoulder Bushing

710004749

$2.75

Screw PT Type K-50 X 16

250000959

$1.74

LH Headlight Support

710009482

$42.28

Overmolded Grommet

293720130

$4.38

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Screw Lux

710009786

$6.45

Horn

710004791

$37.66

Spacer

705207818

$13.49

Hex Flange Screw M6 X 55

207665544

$2.02

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Yaw Rate Sensor

710005658

$166.12

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Support Abs Sensor

710010499

$8.88

Hex. Flange Screw M6 X 25

207662556

$3.61

Speed Sensor

710011077

$78.43

Screw PT Type K-50 X 16

250000959

$1.74

Junction Block Cover

710009444

$6.45

Panel Nut M6 X 1.0

250100208

$1.07

Front Wiring Harness

710009234

$101.51

Elastic Stop Nut M6

232561434

$1.55

Torx Screw M6 X 20

250000712

$1.74

Screw PT Type K-50 X 16

250000959

$1.74

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

Specialized Nut

278004274

$2.72

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Start-Stop Button | Not Shown

710005213

$59.97

12V Power Outlet

710005374

$27.27

USB Connector

710008594

$50.74

Trottle Pedal Harness

710009717

$226.12

Screw PT Type K-50 X 16

250000959

$1.74

Front Differential ABS Harness

710011078

$46.12

Heater Unit Wiring Harness

710009706

$87.66

Elastic Stop Nut M6, Brass

232561200

$3.51

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62
