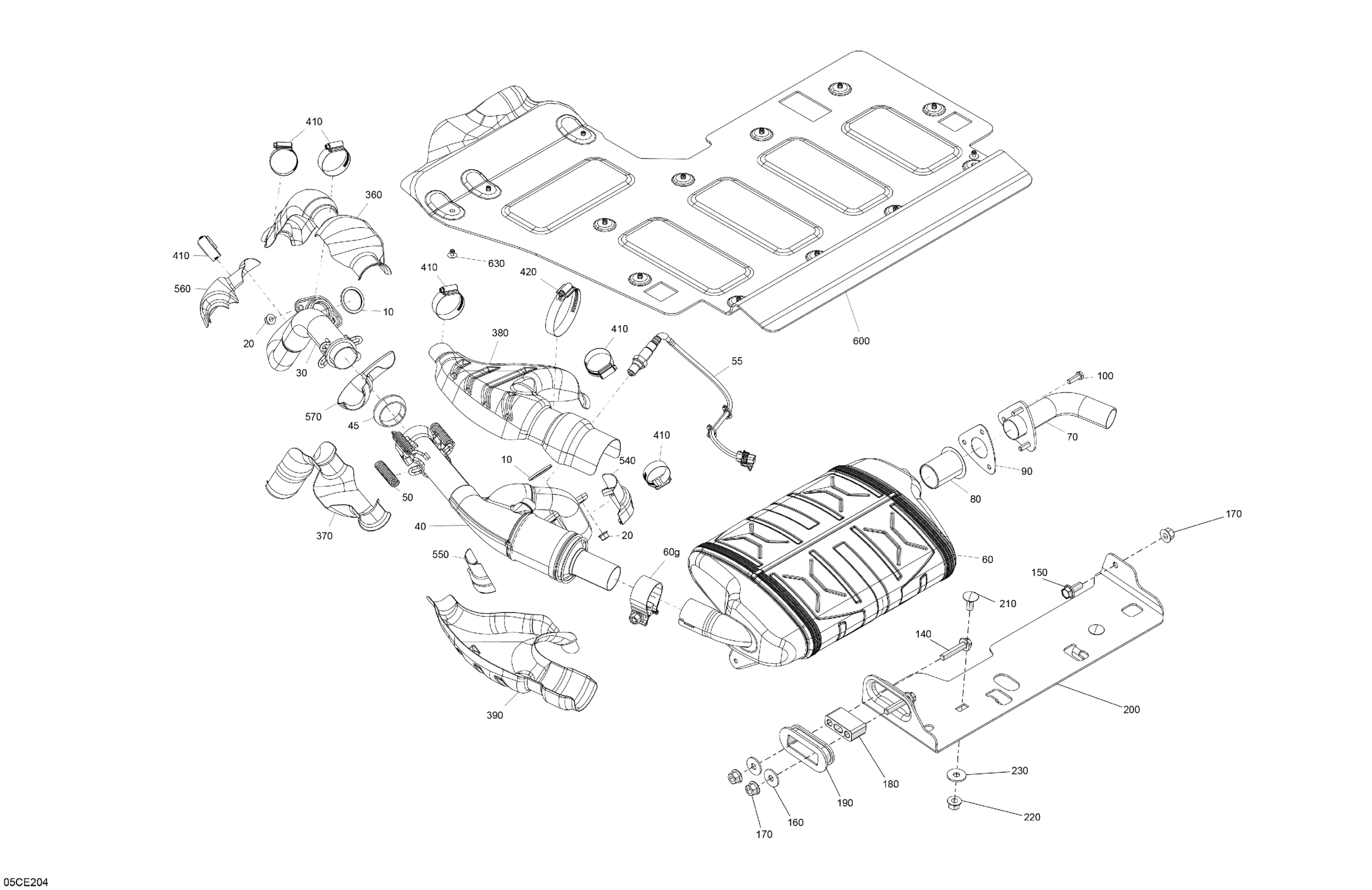

Can-Am Defender - HD9 - BASE - 6WSA - Compass Green - 62" Width CALI, 2025 Engine - Exhaust Diagram

Description

Price

Gasket

707603950

Unavailable

Hex. Flange Nut

233081436

$2.00

Front Exhaust Pipe

707602039

$174.49

Rear Exhaust Pipe

707603344

$328.49

Exhaust Gasket

707601033

$13.77

Spring

707601834

$6.35

Oxygen Sensor

707600872

$144.99

Exhaust Muffler Ass'y | Includes 60 to 60g

707603495

$836.99

60g

Exhaust Pipe Clamp

293650228

$12.49

Exhaust Pipe Out

707603105

$94.49

Spark Arrestor

707601803

$49.99

Gasket

707602731

$12.63

100

Hex. Screw Cap DIN.933

207182546

$1.01

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut

233081436

$2.00

180

Muffler Stopper

707603214

$13.49

190

Rubber Bumper

707603330

$15.81

200

Exhaust Support

707603494

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut

233081436

$2.00

230

Flat Washer 8 mm

234082410

$1.47

360

Front Heat Shield

707602666

$68.99

370

Rear Heat Shield

707602667

$53.99

380

Upper Heat Shield

707602668

$85.99

390

Lower Heat Shield

707602669

$68.99

410

Murray Gear Clamp

293650305

$12.71

420

Tridon Gear Clamp

293650250

$14.31

540

Upper Rear Heat Shield

707602670

$53.99

550

Lower Rear Heat Shield

707602671

$53.99

560

Front Upper Heat Shield

707602672

$53.99

570

Lower Front Heat Shield

707602673

$53.99

600

Upper Heat Shield

707603319

$289.99

630

Black, Pop Rivet 3/16 X ,550

293150292

$1.05
