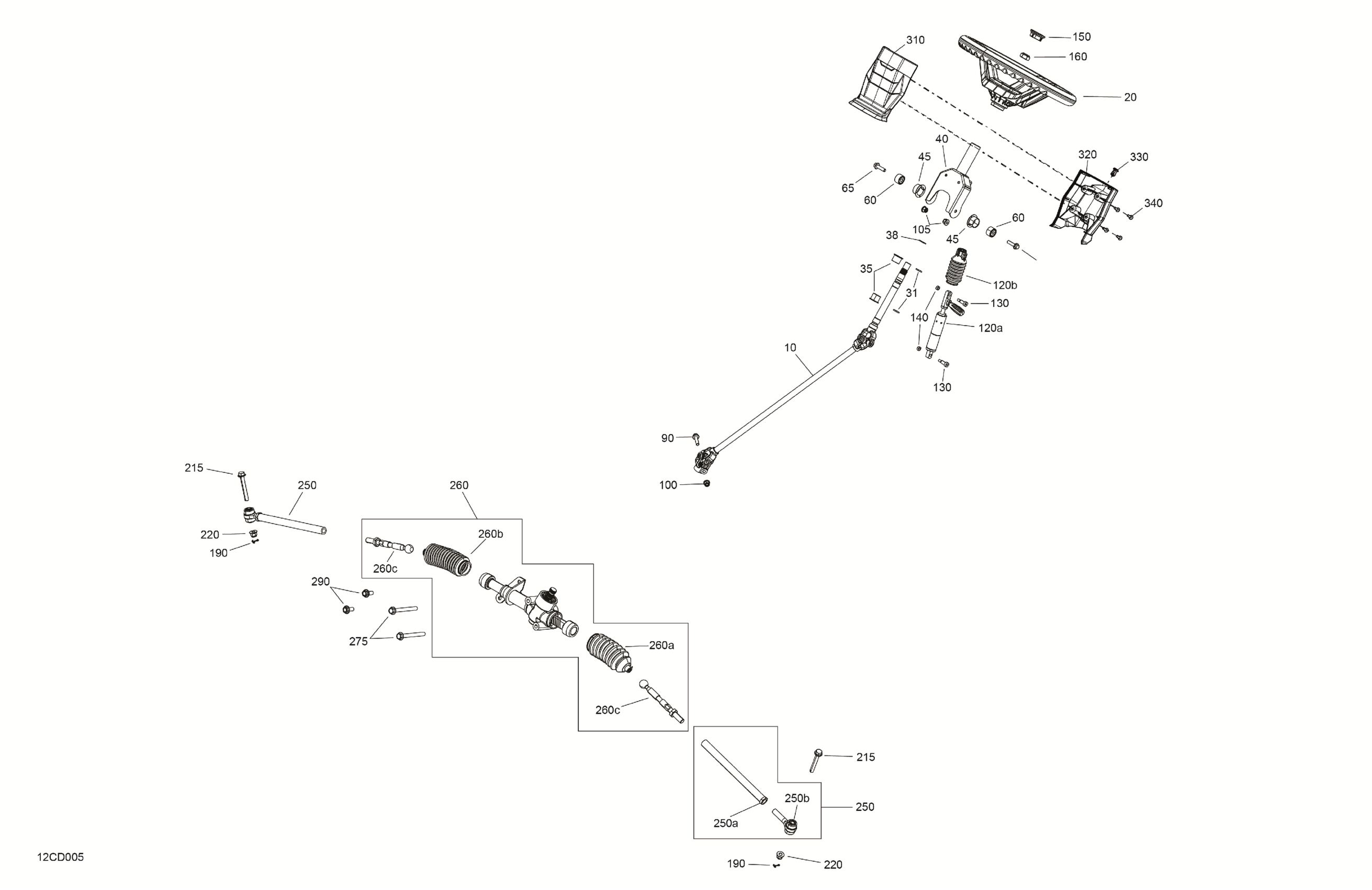

Can-Am Defender HD7 - BASE - 6XRA - Tundra Green - 62" Width CALI, 2024 Mechanic - Steering Diagram

Description

Price

Steering Column

709402491

$184.58

Steering Wheel

709401513

$507.66

O-Ring

293300144

$3.98

Steering Bushing

709402725

$3.17

Circlip

293370110

$2.31

Steering Support

709401602

$78.43

Bushing

709401603

$6.57

Bushing

709401604

$4.52

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

Hex. Flange Screw M8 X 35

250001021

$3.61

100

Hex. Elastic Flange Nut M8

233281416

$1.25

105

Hex. Elastic Flange Nut M8

233281416

$1.25

120a

Adjustment Cylinder

709402506

$69.20

120b

Boot Tube Side

709401232

$13.62

130

Socket Head Screw M8 X 16

250000669

$2.61

140

Elastic Stop Nut M6

232561434

$1.55

150

Steering Cap

709401514

$15.35

160

Elastic Lock Nut M16

232511414

$1.64

190

Cotter Pin

211400017

$0.25

215

Screw Hex Cap M10 X 75

250000814

$3.95

220

Hex. Flange Elastic Nut M10

233201436

$1.74

250

Tie Rod Ass'y | Includes 250 to 250b

709401627

$69.20

250a

Steering Rod Nut

715900238

$2.31

250b

Ball Joint

709401601

$50.34

260

Steering Rack And Pinion | Includes 260 to 260d

709402317

$387.66

260a

Boot Kit, Pinion Side

715900235

$55.35

260b

Boot Kit, Tube Side

715900236

$55.35

260c

Steering Rod Nut

715900238

$2.31

260d

Steering Rod

715900951

$41.51

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

290

Hex. Flange Screw M10 X 25

207502546

$1.74

310

Steering Box Cover

707900401

$13.83

320

Steering Box Cover

707900406

$13.83

330

Tuflok Plastic Rivet

293150230

$1.21

340

Torx Screw K50 X 16

250000720

$1.39
