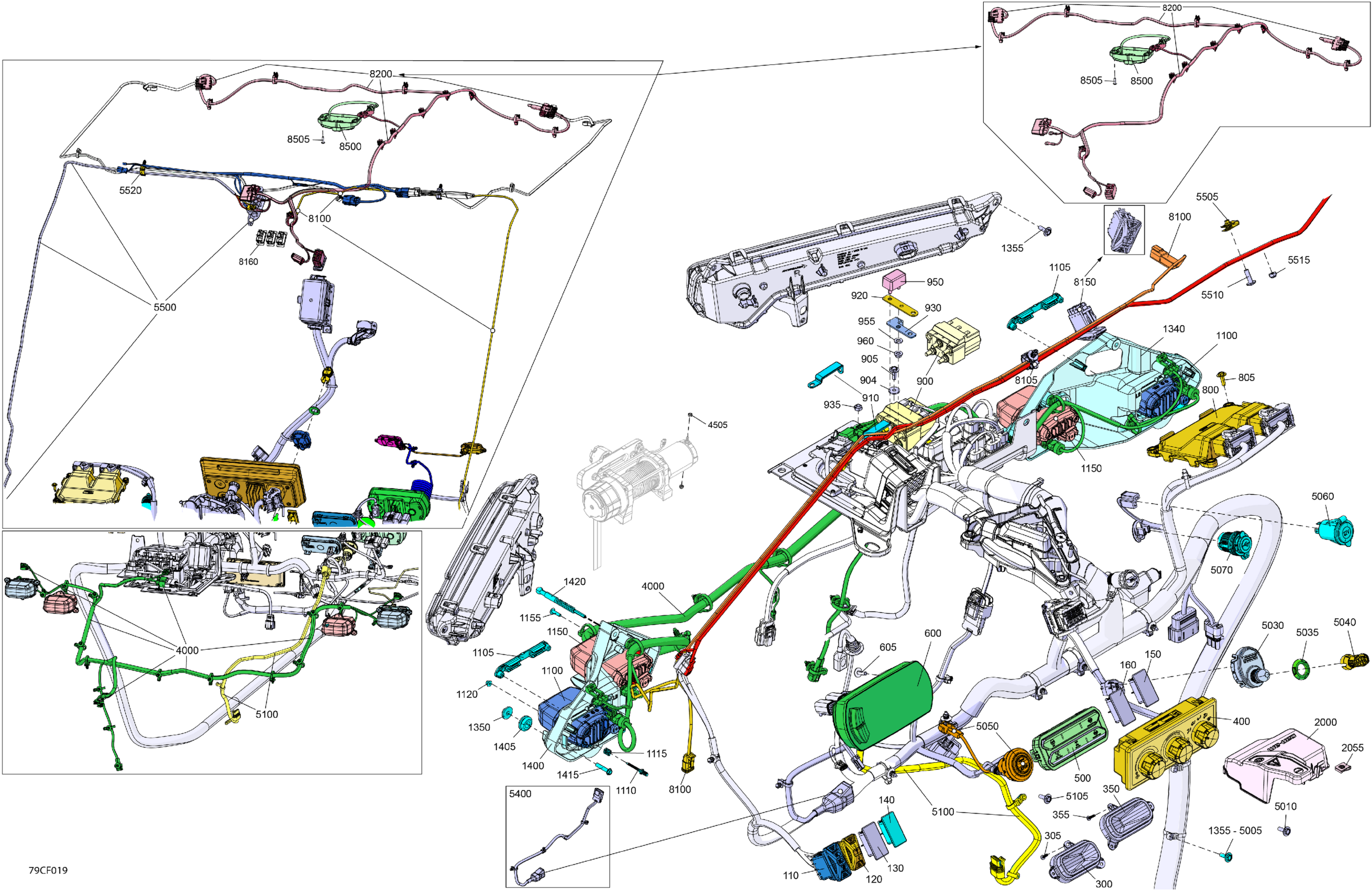

Can-Am Defender - HD7 - BASE - 6XTC - Compass Green - 62" Width - CALI, 2026 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710007663

$46.12

120

Winch Switch

710007665

$87.66

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

300

LH Steering Wheel Trim

709402625

$5.52

305

Screw Plastite Torx K30 X 12

250001234

$0.55

350

RH Steering Wheel Trim

709402628

$5.52

355

Screw Plastite Torx K30 X 12

250001234

$0.55

400

A/C Unit Control

710010452

$636.89

500

Multifunction Switch

710010535

$124.58

600

Multifunction Compact Gauge

710008298

$364.58

605

Screw PT Type K-50 X 16

250000959

$1.74

800

Module_Bcm Opt #5

710009076

$904.58

805

Screw PT Type K-50 X 16

250000959

$1.74

900

Solenoid

710006991

$59.97

904

Washer M5

250200025

$0.61

905

Screw PT Type K-50 X 16

250000959

$1.74

910

Power Bar

710004772

$11.98

920

Copper Busbar

710006401

$11.98

930

Power Bar

710004873

$11.98

935

Elastic Stop Nut M6, Brass

232561200

$3.51

950

Circuit Breaker 50 Amp

710007039

$18.43

955

Lock Washer Helical M6

234161601

$0.92

960

Hex. Flange Nut M5

250100071

$1.77

1100

Low Beam Light

710008088

$156.89

1105

Support Pivot | Not Shown

517309049

$2.66

1110

Threaded Rod | Not Shown

517309133

$6.20

1115

Compression Spring | Not Shown

517309058

$7.23

1120

Specialized Nut | Not Shown

517309134

$0.98

1150

HIgh Beam Light

710006910

$156.89

1155

Torx-Truss Pt K40 X 16

250000759

$1.74

1340

RH Headlight Support

710009206

$42.28

1350

Shoulder Bushing

710004749

$2.75

1355

Screw PT Type K-50 X 16

250000959

$1.74

1400

LH Headlight Support

710009482

$42.28

1405

Overmolded Grommet

293720130

$4.38

1415

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

1420

Screw Lux

710009786

$6.45

2000

Junction Block Cover

710009444

$6.45

2055

Panel Nut M6 X 1.0

250100208

$1.07

4000

Front Wiring Harness

710009233

$101.51

4505

Elastic Stop Nut M6

232561434

$1.55

5005

Torx Screw M6 X 20

250000712

$1.74

5010

Screw PT Type K-50 X 16

250000959

$1.74

5030

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

5035

Specialized Nut

278004274

$2.72

5040

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

5050

Start-Stop Button | Not Shown

710005213

$59.97

5060

12V Power Outlet

710005374

$27.27

5070

USB Connector

710008594

$50.74

5100

Trottle Pedal Harness

710009717

$226.12

5105

Screw PT Type K-50 X 16

250000959

$1.74

5400

Front Differential Wiring Harness

710009348

$46.12

5500

Power Roof Wiring Harness

710009343

$92.28

5505

Panel Nut M6 X 1.0

250100198

$1.73

5510

Torx Screw M6 X 20

250000722

$1.34

5515

Elastic Stop Nut M6, Brass

232561200

$3.51

5520

Support Cable

293750083

$2.75

8100

Wiper Harness

710009716

$32.28

8105

Support Cable

293750083

$2.75

8150

Wiper Switch

710008374

$83.05

8160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

8200

Roof Harness

710009713

$169.99

8500

Dome Light

710010738

$92.28

8505

Torx-Truss Pt K40 X 16

250000759

$1.74
