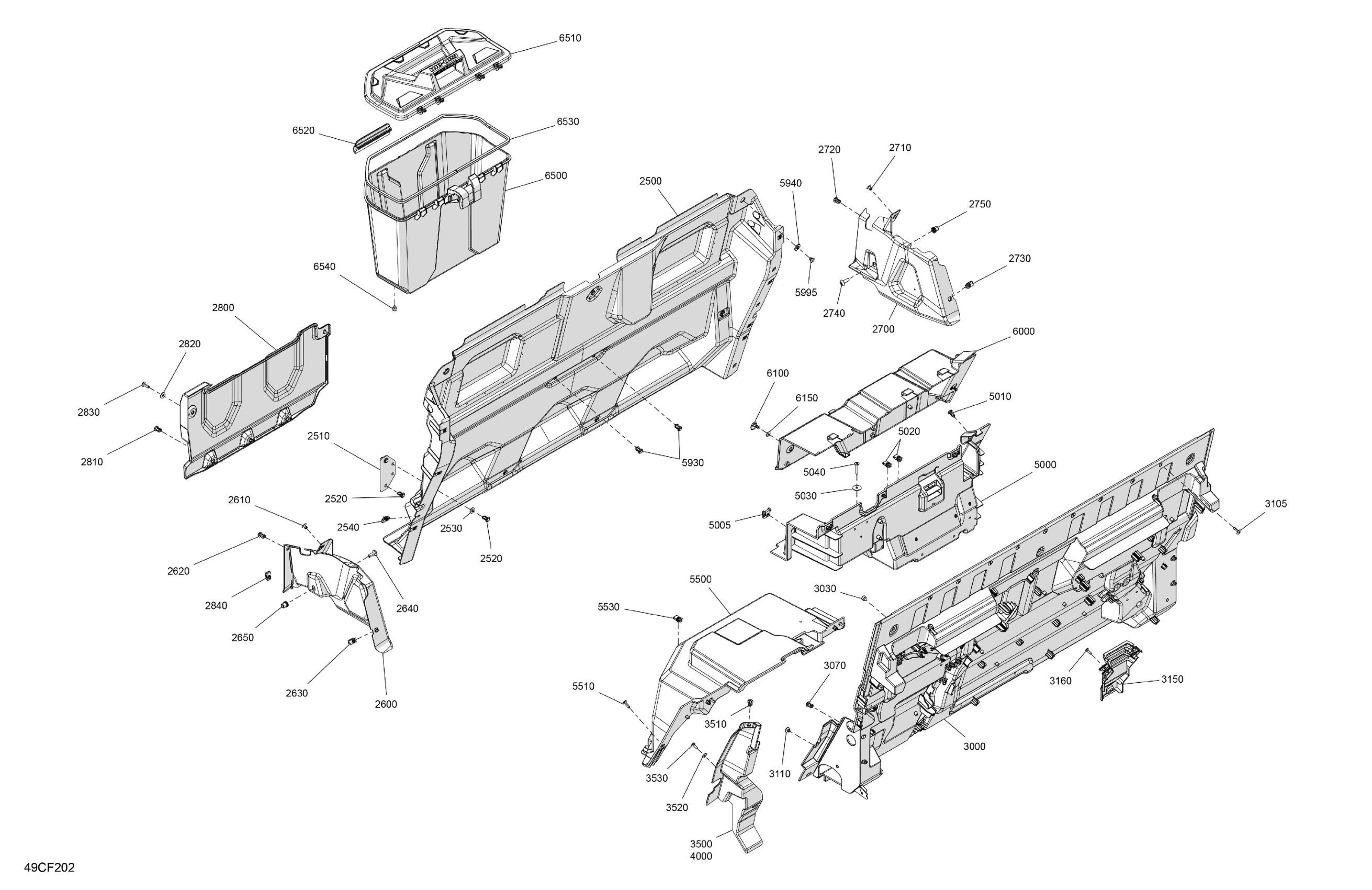

Can-Am Defender MAX - HD11 - Lone Star - 6UTA - Stealth Black - 65" Width, 2026 Cab Interior - Back Wall Diagram

Description

Price

2500

Middle Deflector

707900997

Unavailable

2510

Plate

707900469

$28.43

2520

Tuflok Plastic Rivet

293150230

$1.21

2530

Washer

503192494

$3.11

2540

Panel Nut M6 X 1.0

250100198

$1.73

2600

LH Lower Panel

707900994

$78.43

2610

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

2620

Tuflok Plastic Rivet

293150230

$1.21

2630

Panel Nut M6 X 1.0

250100198

$1.73

2640

Torx Truss M8 X 25

250000874

$1.74

2650

Insert Half Hex Body M8 x 1.25

293450307

$2.03

2700

RH Lower Panel

707900995

$78.43

2710

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

2720

Tuflok Plastic Rivet

293150230

$1.21

2730

Panel Nut M6 X 1.0

250100198

$1.73

2740

Torx Truss M8 X 25

250000874

$1.74

2750

Insert Half Hex Body M8 x 1.25

293450307

$2.03

2800

Rear Panel

707900996

$92.28

2810

Tuflok Plastic Rivet

293150230

$1.21

2820

Stainless Steel Flat Washer

234062670

$1.74

2830

Torx Screw M6 X 20

250000722

$1.34

2840

Panel Nut M6 X 1.0

250100198

$1.73

3000

Rear Upper Cab Panel

707901168

$406.12

3030

Rubber Bumper

293830005

$5.33

3070

Tuflok Plastic Rivet

293150230

$1.21

3105

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

3110

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

3150

Rear Lower Wiring Harness Guard

707901216

$78.43

3160

Torx Screw K50 X 16

250000720

$1.39

3500

LH Upper Body Panel Deflector

707901166

$50.74

3510

Tuflok Plastic Rivet

293150230

$1.21

3520

Stainless Steel Flat Washer

234062670

$1.74

3530

Torx Screw K50 X 16

250000720

$1.39

4000

RH Upper Body Panel Deflector

707901167

$50.74

5000

Rear Lower Cab Panel

707901163

$207.66

5005

Quarter Turn Nut

705002651

$3.84

5010

Tuflok Plastic Rivet

293150230

$1.21

5020

Panel Nut M6 X 1.0

250100198

$1.73

5030

Washer M6

250200029

$1.83

5040

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

5500

Fuel Pump Cover

707901213

$207.66

5510

Torx Screw M6 X 20

250000722

$1.34

5530

Panel Nut M6 X 1.0

250100198

$1.73

5930

Tuflok Plastic Rivet

293150230

$1.21

5940

Flat Washer 8 mm, Nylon

292001663

$1.18

5995

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

6000

Battery Cover

707901165

$87.66

6100

Quarter Turn Screw

705002649

$12.57

6150

Washer

708400286

$4.02

6500

Storage Box

715003314

$109.24

6510

Storage Box

715003314

$109.24

6520

Clip | Outlander Max

269501945

$15.19

6530

Neoprene Seal

293250453

$14.92

6540

Rubber Bumper

293830005

$5.33
