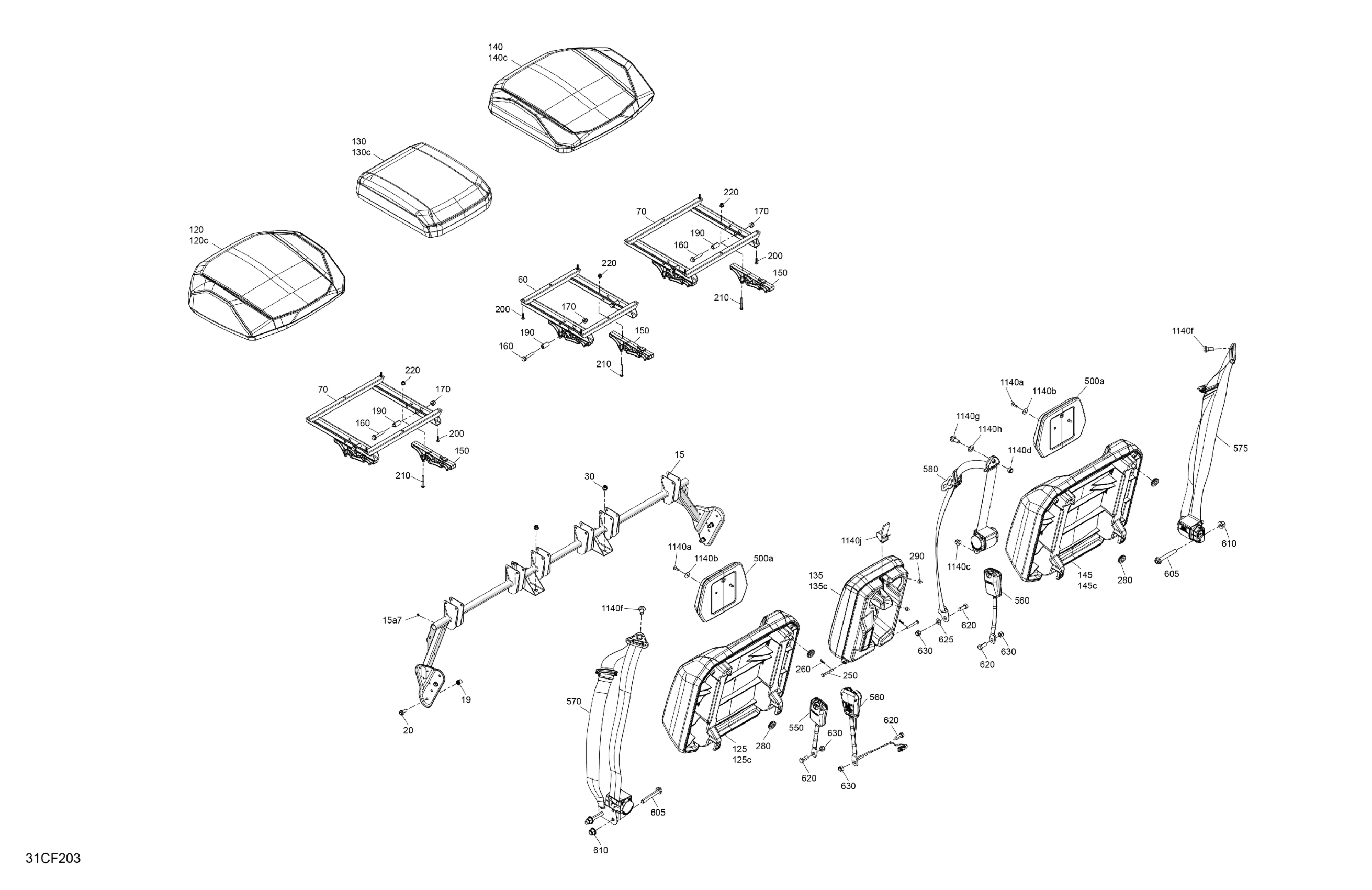

Can-Am Defender MAX - HD11 - XT - 8KTC - Dusty Navy Satin - 65" Width, 2026 Body - Seat - Rear Section Diagram

#

Description
Price

15

Seat Support | Includes 10 to 10a7

708003621

$133.82

15a7

Pop Rivet 3/16 X ,425

293150293

$0.26

19

Insert Half Hex Body M8 x 1.25

293450307

$2.03

20

Hex Screw Washer Head M8 X 20

207582054

$2.61

30

Hex. Elastic Flange Nut M8

233281416

$1.25

60

Mid Seat Member

708002815

$193.82

70

Passenger Seat Member

708002821

$193.82

120

LH Seat Cushion Ass'y | Includes 90 to 90c

708003897

$267.66

120c

LH Cushion Cover

708003898

$92.28

125

Backrest Ass'y | Includes 115 to 115c

708004243

$332.28

125c

Backrest Cover

708004259

$99.99

130

Central Seat Cushion Ass'y | Includes 100 to 100c

708003976

$235.35

130c

Central Cushion Cover

708003980

$92.28

135

Central Backrest Ass'y | Includes 105 to 105c

708003984

$323.05

135c

Central Backrest Cover

708003988

$92.28

140

RH Seat Cushion Ass'y | Includes 110 to 110c

708003903

$267.66

140c

RH Cushion Cover

708003904

$92.28

145

Backrest Ass'y | Includes 115 to 115c

708004243

$332.28

145c

Backrest Cover

708004259

$99.99

150

Seat Base Pivot

708002581

$9.98

160

Hex. Flange Screw M8 X 45

207684544

$3.68

170

Hex. Elastic Flange Nut M8

233281416

$1.25

190

Bushing

708003749

$3.08

200

Torx Screw Truss Head K50X20 T20

250000760

$1.74

210

Hex. Screw M6 X 45

207064544

$2.02

220

Hex. Flange Elastic Nut M6

233261494

$1.26

250

Pin

250400069

$3.08

260

Hairpin Cotter

269800431

$1.00

280

Grommet

517303756

$3.15

290

Rubber Bumper

293830005

$5.33

500a

Headrest

708002853

$55.35

550

Middle Buckle

708003163

$64.58

560

Passenger Buckle

708002329

$64.58

570

LH Safety Belt

708003082

$230.74

575

RH Safety Belt

708003200

$230.74

580

Central Safety Belt

708003688

$230.74

605

Hex. Screw M12 X 80

207028046

$3.25

610

Elastic Flange Nut M12

250001195

$2.15

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.85

625

Flat Washer M12

250200102

$1.74

630

Lock Nut Nylon 7/16

250100183

$1.64

1140a

Torx Screw M6 X 20

250000722

$1.34

1140b

Flat Washer M6.6 X 22

250200162

$1.91

1140c

Elastic Flange Nut M12

233221416

$2.33

1140d

Lock Nut Nylon 7/16

250100183

$1.64

1140f

Safety Belt screw

708002504

$5.52

1140g

Safety Belt Screw

708000890

$3.68

1140h

Position Washer

708000891

$1.15

1140j

Latch

269501487

$12.97
