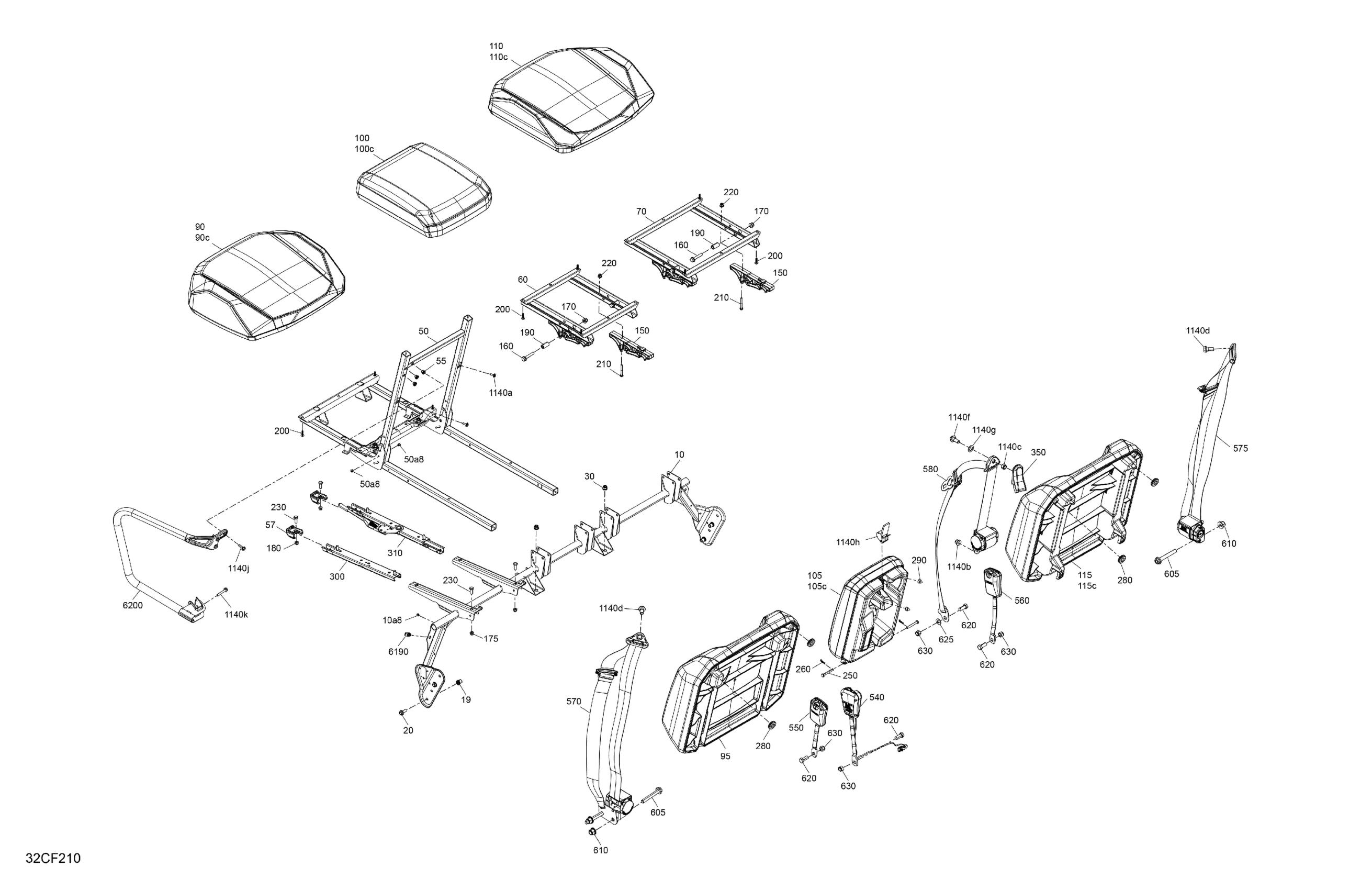

Can-Am Defender MAX - HD11 - XT - 8KTC - Dusty Navy Satin - 65" Width, 2026 Body - Seat - Front Section Diagram

#

Description
Price

10

Seat Support | Includes 10 to 10a8

708003619

$129.99

10a8

Pop Rivet 3/16 X ,425

293150293

$0.30

19

Insert Half Hex Body M8 x 1.25

293450307

$1.97

20

Hex Screw Washer Head M8 X 20

207582054

$3.00

30

Hex. Elastic Flange Nut M8

233281416

$1.43

50

Driver Seat Base | Includes 50 to 50a8

708004350

$296.24

50a8

Pop Rivet 3/16 X ,425

293150293

$0.30

55

Insert Half Hex Body M6 x 1.0

250100199

$2.91

57

Seat Rail Cap

708004160

$35.04

60

Mid Seat Member

708002815

$182.81

70

Passenger Seat Member

708002821

$182.81

90

LH Seat Cushion Ass'y | Includes 90 to 90c

708003897

$255.19

90c

LH Cushion Cover

708003898

$99.99

95

Backrest Ass'y

708004246

$349.99

100

Central Seat Cushion Ass'y | Includes 100 to 100c

708003976

$223.85

100c

Central Cushion Cover

708003980

$99.99

105

Central Backrest Ass'y | Includes 105 to 105c

708003984

$339.99

105c

Central Backrest Cover

708003988

$99.99

110

RH Seat Cushion Ass'y | Includes 110 to 110c

708003903

$255.19

110c

RH Cushion Cover

708003904

$99.99

115

Backrest Ass'y | Includes 115 to 115c

708004243

$349.99

115c

Backrest Cover

708004259

$99.99

150

Seat Base Pivot

708002581

$9.33

160

Hex. Flange Screw M8 X 45

207684544

$3.57

170

Hex. Elastic Flange Nut M8

233281416

$1.43

175

Hex. Elastic Flange Nut M8

233281416

$1.43

180

Hex. Elastic Flange Nut M8

233281416

$1.43

190

Bushing

708003749

$2.85

200

Torx Screw Truss Head K50X20 T20

250000760

$2.00

210

Hex. Screw M6 X 45

207064544

$1.96

220

Hex. Flange Elastic Nut M6

233261494

$1.45

230

Hex. Screw M8 X 20

207182044

$0.70

250

Pin

250400069

$2.88

260

Hairpin Cotter

269800431

$0.97

280

Grommet

517303756

$3.61

290

Rubber Bumper

293830005

$6.12

300

LH Seat Rail

708003314

$52.99

310

Rail_Seat RH

708003701

$43.99

350

Belt Guard Trim

708004033

$34.30

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$60.42

560

Passenger Buckle

708002329

$60.42

570

LH Safety Belt

708003082

$219.37

575

RH Safety Belt

708003200

$219.37

580

Central Safety Belt

708003688

$219.37

605

Hex. Screw M12 X 80

207028046

$3.73

610

Elastic Flange Nut M12

250001195

$2.46

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.79

625

Flat Washer M12

250200102

$2.00

630

Lock Nut Nylon 7/16

250100183

$1.88

6190

Panel Nut M6 X 1.0

250100198

$1.99

6200

Deep Black, LH Guard

708003700

$68.63

1140a

Screw PT Type K-50 X 16

250000959

$2.00

1140b

Elastic Flange Nut M12

233221416

$2.67

1140c

Lock Nut Nylon 7/16

250100183

$1.88

1140d

Safety Belt screw

708002504

$4.76

1140f

Safety Belt Screw

708000890

$3.79

1140g

Position Washer

708000891

$0.97

1140h

Latch

269501487

$14.90

1140j

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1140k

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.15
