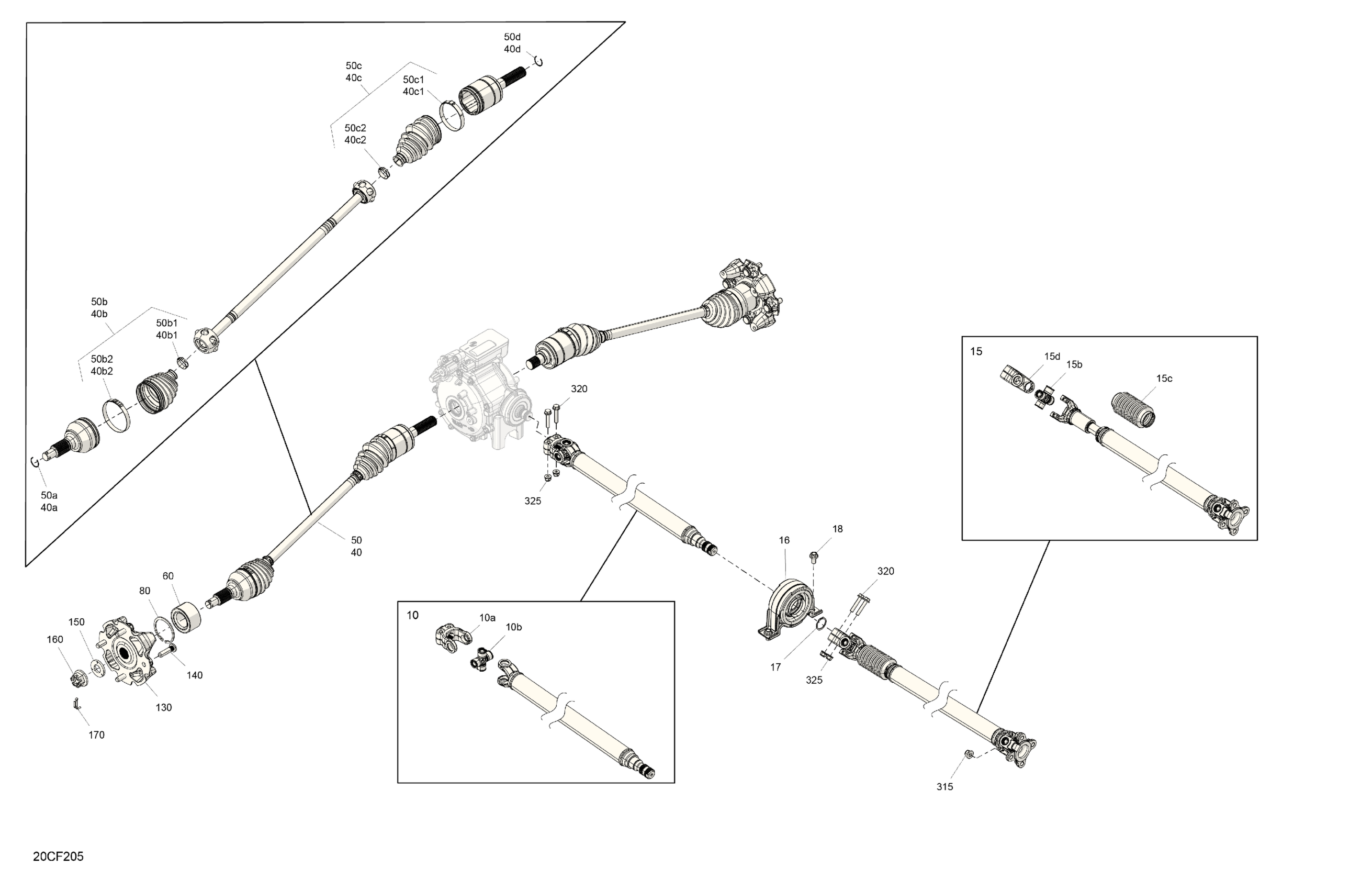

Can-Am Defender MAX - HD11 - XT - 8KTC - Dusty Navy Satin - 65" Width, 2026 Drive - Front - Common Parts Diagram

Front Drive Axle Ass'y | Includes 10 to 10b

705403463

$226.12

Connecting Yoke 20Th

715900939

$23.05

Universal Joint Ass'y

715900911

$46.12

Rear Drive Axle Ass'y | Includes 15 to 15d

705403761

$281.51

Universal Joint Ass'y

715900911

$46.12

Boot Ass'y

715901025

$41.51

Connecting Yoke 18Th

715900938

$23.05

Bearing_Ball Ass'y

705403766

$46.12

Snap Ring

293370098

$3.11

Hex. Flange Screw M10 X 20

207502046

$1.74

Front CV Jointr Ass'y | Includes 40 to 40d

705403360

$226.12

Circlip Joint

715901033

$5.52

CV Joint Boot Kit | Includes 40b to 40b2

715901034

$41.51

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900260

$7.84

CV Joint Boot Kit | Includes 40c to 40c2

715901035

$41.51

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

Circlip

715900569

$5.52

Front CV Jointl Ass'y | Includes 50 to 50d

705403361

$226.12

Circlip Joint

715901033

$5.52

CV Joint Boot Kit | Includes 40b to 40b2

715901034

$41.51

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900260

$7.84

CV Joint Boot Kit | Includes 40c to 40c2

715901035

$41.51

Oetiker Clamp, Small

715900261

$4.39

Oetiker Clamp, Large

715900262

$7.84

Circlip

715900569

$5.52

Ball Bearing

293350151

$69.74

Internal Retaining Ring

293370169

$1.37

Machined Wheel Hub

705503479

$110.74

Wheel Stud M12X1.5

250300625

$3.85

Conical Spring Washer M20

250200170

$11.00

Castle Nut M20

250100193

$6.66

Cotter Pin

250400084

$1.79

Flange Elastic Nut M10

233201466

$2.63

Hex. Flange Screw M8 X 42

250001050

$0.95

Hex. Elastic Flange Nut M8

233281416

$1.25
