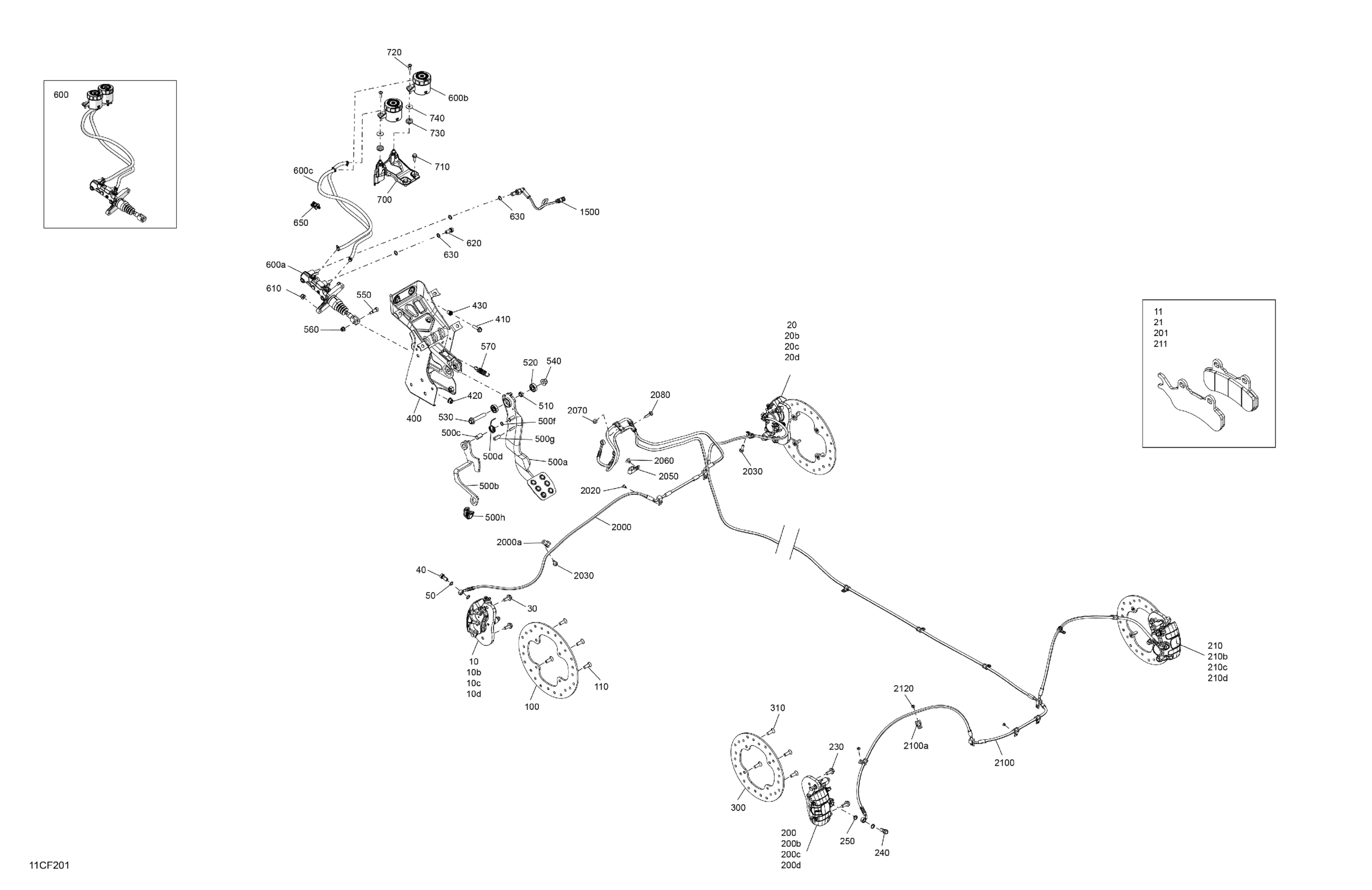

Can-Am Defender MAX - HD11 - Lone Star - 6UTA - Stealth Black - 65" Width, 2026 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10d

705602220

$249.99

10b

Pin Kit | Packages STD & PRO

715900384

$12.12

10c

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

11

LH/RH Brake Pad Kit

703501260

$119.99

20

RH Front Brake Caliper | Includes 20 to 20d

705602221

$249.99

20b

Pin Kit | Packages STD & PRO

715900384

$12.12

20c

Bleeding Screw

705601017

$6.35

20d

Cap Spring Kit

715900385

$17.59

21

LH/RH Brake Pad Kit

703501260

$119.99

30

Hex. Flange Screw M10 X 25

207502546

$2.11

40

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

50

Copper Washer

705601628

$4.44

100

Front Disc Brake

705602082

$119.99

110

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

200

LH Rear Brake Caliper | Includes 200 to 200d

705602222

$229.99

200b

Pin Kit | Packages STD & PRO

715900384

$12.12

200c

Bleeding Screw

705601017

$6.35

200d

Cap Spring Kit

715900385

$17.59

201

LH/RH Brake Pad Kit

703501260

$119.99

210

RH Rear Brake Caliper | Includes 210 to 210d

705602223

$229.99

210b

Pin Kit | Packages STD & PRO

715900384

$12.12

210c

Bleeding Screw

705601017

$6.35

210d

Cap Spring Kit

715900385

$17.59

211

LH/RH Brake Pad Kit

703501260

$119.99

230

Hex. Flange Screw M10 X 25

207502546

$2.11

240

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

250

Copper Washer

705601628

$4.44

300

Rear Brake Disc

705602083

$109.99

310

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

400

Pedal Support

705602126

$58.99

410

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

420

Hex. Elastic Flange Nut M8

233281416

$1.48

430

Insert Half Hex Body M8 x 1.25

293450307

$2.69

500a

Brake Pedal

705602086

$58.99

500b

Parking Brake Lever

705602134

$48.99

500c

Bushing

705601722

$8.85

500d

Torsion Spring

705602174

$11.49

500f

Circlip

705601770

$2.68

500g

Hose

219704549

$50.99

500h

Adjustment Handle

708002655

$16.99

510

Bushing

705601622

$14.81

520

Bearing

705600458

$19.99

530

Hex. Flange Screw M10 X 55

207605546

$2.11

540

Flange Elastic Nut M10

233201466

$3.17

550

Socket Head Screw M8 X 16

250000669

$3.17

560

Hex. Flange Elastic Nut M6

233261494

$1.58

570

Brake Pedal Spring

705600792

$9.10

600

Brake Master Cylinder | Includes 600 to 600c

705602238

$294.99

600a

Master Cylinder

705602306

$379.99

600b

Oil Tank

705601020

$39.99

600c

Oil Tank Hose

705602239

$11.49

610

Hex. Elastic Flange Nut M8

233281416

$1.48

620

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

630

Copper Washer

705601628

$4.44

650

HARNESS SUPPOR - Call your local BRP dealership

709000634

Unavailable

700

Tank Support

705602201

$3.99

710

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

720

Torx Screw K50 X 16

250000720

$1.69

730

Grommet

414036300

$2.79

740

Flat Washer

250200040

$1.90

1500

Brake Switch

705601250

$59.49

2000

Front Caliper Hose | Includes 2000 to 2000a

705602100

$149.99

2000a

Clamp

293650256

$5.49

2020

Pop Rivet 3/16 X ,425

293150293

$0.35

2030

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

2050

Open Clamp

515175507

$1.89

2060

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2070

Elastic Flange Nut M5

233251494

$2.11

2080

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

2100

Rear Caliper Hose | Includes 2100 to 2100a

705602103

$149.99

2100a

Clamp

293650256

$5.49

2120

Pop Rivet 3/16 X ,425

293150293

$0.35
