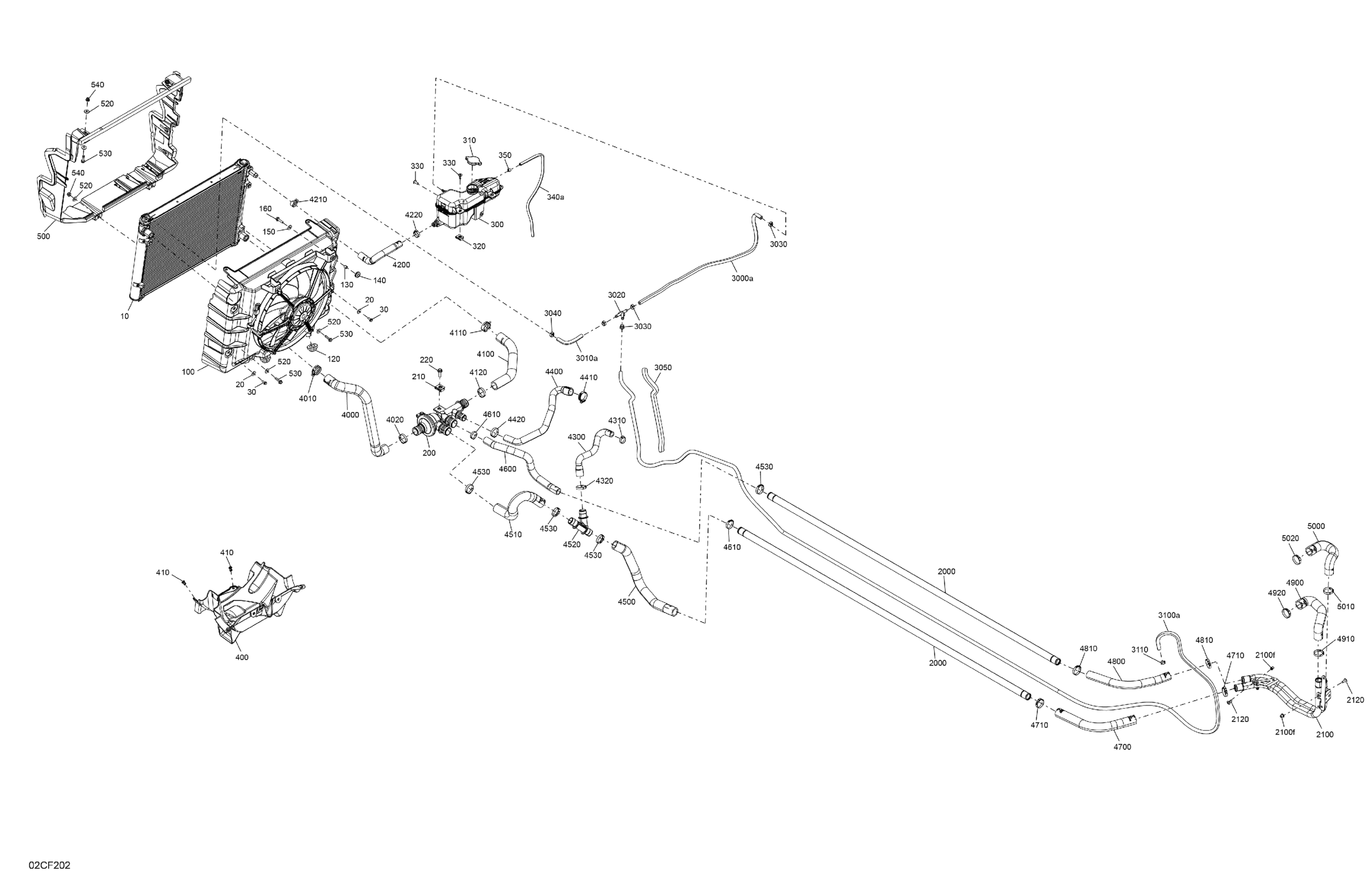

Can-Am Defender MAX - HD11 - Lone Star - 6UTA - Stealth Black - 65" Width, 2026 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709201484

$299.99

20

Washer M6

250200029

$2.50

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

100

Cooling Fan Ass'y

709201383

$254.99

120

Rubber Stopper

709201320

$9.69

130

Bushing

293900105

$7.65

140

Overmolded Grommet

293720130

$4.69

150

Stainless Steel Flat Washer

234062670

$2.11

160

Hex. Flange Screw M6 X 25

207662554

$1.48

200

Thermostat Housing

709201310

$99.99

210

Panel Nut M6 X 1.0

250100208

$1.46

220

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

300

Coolant Tank

709201340

$80.99

310

Radiator Pressure Cap

709200207

$25.49

320

Panel Nut M6 X 1.0

250100208

$1.46

330

Torx Truss Screw M6 X 16

250000721

$1.69

340a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

350

Spring Clamp

414554800

$0.88

400

Air Deflector

709201311

$99.99

410

Tuflok Plastic Rivet

293150230

$1.47

500

Front Radiator Deflector

709201321

$49.99

520

Stainless Steel Flat Washer

234062670

$2.11

530

Hex. Flange Screw M6 X 25

207662554

$1.48

540

Hex. Flange Elastic Nut M6

233261494

$1.58

2000

Heater Tubing

709200658

$39.99

2100

Rigid Engine Hose | Includes 2100 to 2100f

709201424

$38.99

2100f

Insert

293450275

$12.99

2120

Torx Truss Screw M6 X 16

250000721

$1.69

3000a

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

3010a

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

3020

Y-Fitting

293710059

$9.69

3030

Crimp Clamp, 15.3-706R

293650047

$3.29

3040

Oetiker Clamp

293650042

$3.09

3050

Tubing 16 Mm 1000Mm Long

219704408

$7.49

3100a

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

3110

Crimp Clamp, 15.3-706R

293650047

$3.29

4000

Radiator Hose In

709201305

$16.99

4010

Norma Spring Clamp

293650166

$4.44

4020

Crimp Clamp

293650332

$4.44

4100

Radiator Hose Out

709201306

$11.49

4110

Norma Spring Clamp

293650166

$4.44

4120

Crimp Clamp

293650332

$4.44

4200

Coolant Tank Hose

709201299

$38.99

4210

Norma Spring Clamp

293650243

$2.74

4220

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

4300

Thermostat Hose HVAC

709201308

$13.99

4310

Gear Clamp

293650284

$4.44

4320

Crimp Clamp

293650332

$4.44

4400

Thermostat Hose HVAC

709201309

$13.99

4410

Norma Gear Clamp

293650098

$4.44

4420

Oetiker Gear Clamp

293650165

$5.39

4500

Thermostat Hose IN

709201304

$22.49

4510

Thermostat Hose

709201514

$13.99

4520

Y Hose Fitting

709201588

$16.99

4530

Crimp Clamp

293650332

$4.44

4600

Thermostat Hose Out

709201307

$13.99

4610

Crimp Clamp

293650332

$4.44

4700

Engine Hose Out

709201298

$42.99

4710

Crimp Clamp

293650332

$4.44

4800

Engine Hose In

709201301

$42.99

4810

Crimp Clamp

293650332

$4.44

4900

Engine Hose

709201551

$20.99

4910

Crimp Clamp

293650332

$4.44

4920

Crimp Clamp

293650333

$4.44

5000

Engine Hose

709201423

$20.99

5010

Crimp Clamp

293650332

$4.44

5020

Crimp Clamp

293650333

$4.44
