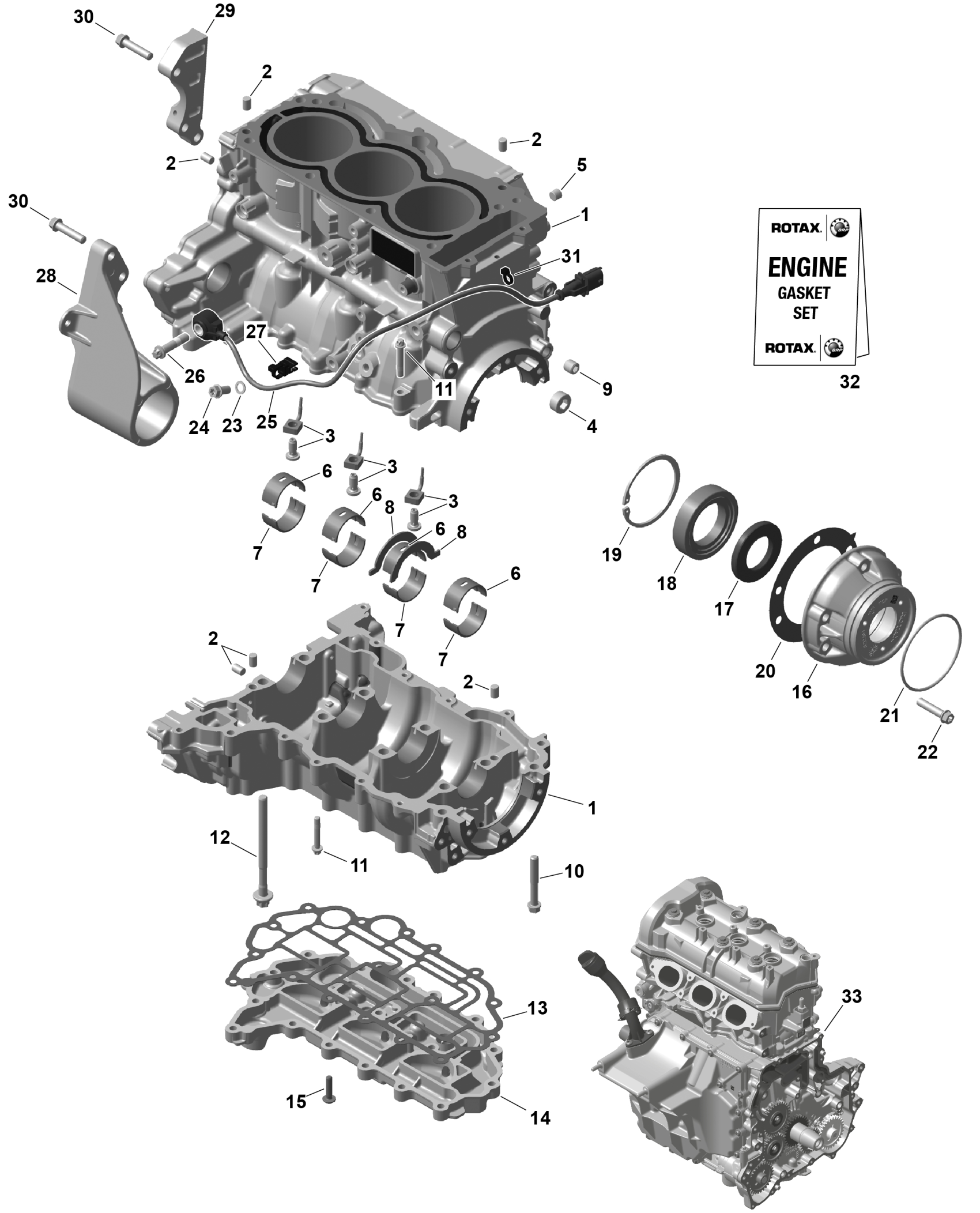

Can-Am Defender MAX - HD11 - Lone Star - 6UTA - Stealth Black - 65" Width, 2026 ROTAX - Crankcase Diagram

#

Description
Price

1

Engine Block Ass'y | Includes no. 1-7

420894340

$2.00

2

Center Pin 8 X 12

420632014

$3.89

3

Oil Spray Nozzle

420656731

$17.61

4

Plug Screw M20 X 1.5

420641317

$14.22

5

Plug Screw M10 X 1

420641323

$14.28

6

Cushion

420933180

$17.58

7

Cushion

420933185

$18.49

8

Ring Half

420933140

$11.60

9

Threaded Pin

420840508

$18.49

10

Torx Flange Screw M8 X 55

420641213

$7.41

11

Torx Flange Screw M6 X 35

420641258

$3.38

12

Torx Flange Screw M9 X 113

420940945

$13.70

13

Oil Sump Gasket | Included in gasket kit

420431822

$15.89

14

Oil Sump

420911132

$96.99

15

Torx Flange Screw M6 X 25

420841549

$2.00

16

PTO Cover

420212464

$109.99

17

PTO Cover Oil Seal | Included in gasket kit

420630153

$19.49

18

Roller Bearing

420232497

$56.99

19

Retaining Ring

420845790

$7.51

20

PTO Cover Gasket

420450080

$7.65

21

O-Ring Din 3771-75X3-N.Fpm70

420901961

$4.79

22

Torx Flange Screw M8 X 35

420440861

$3.27

23

Sealing Ring | Included in gasket kit

420950144

$2.00

24

Torx Flange Screw M8 X 16

420440852

$4.12

25

Noise Sensor

420664031

$63.99

26

Torx Flange Screw M8 X 35

420641188

$7.41

27

Tie Rap With Mount 150X4.6

420951651

$8.69

28

Engine Bracket MAG Side

420212648

$43.99

29

Small Gearbox Bracket

420212642

$26.99

30

Torx Flange Screw M8 X 35

420440861

$3.27

31

Tie Wrap 142X 3.2mm

420866722

$0.18

32

Gasket Set Engine 999

420893056

$639.99

33

Longblock

420099901

$4.00
