Partiron

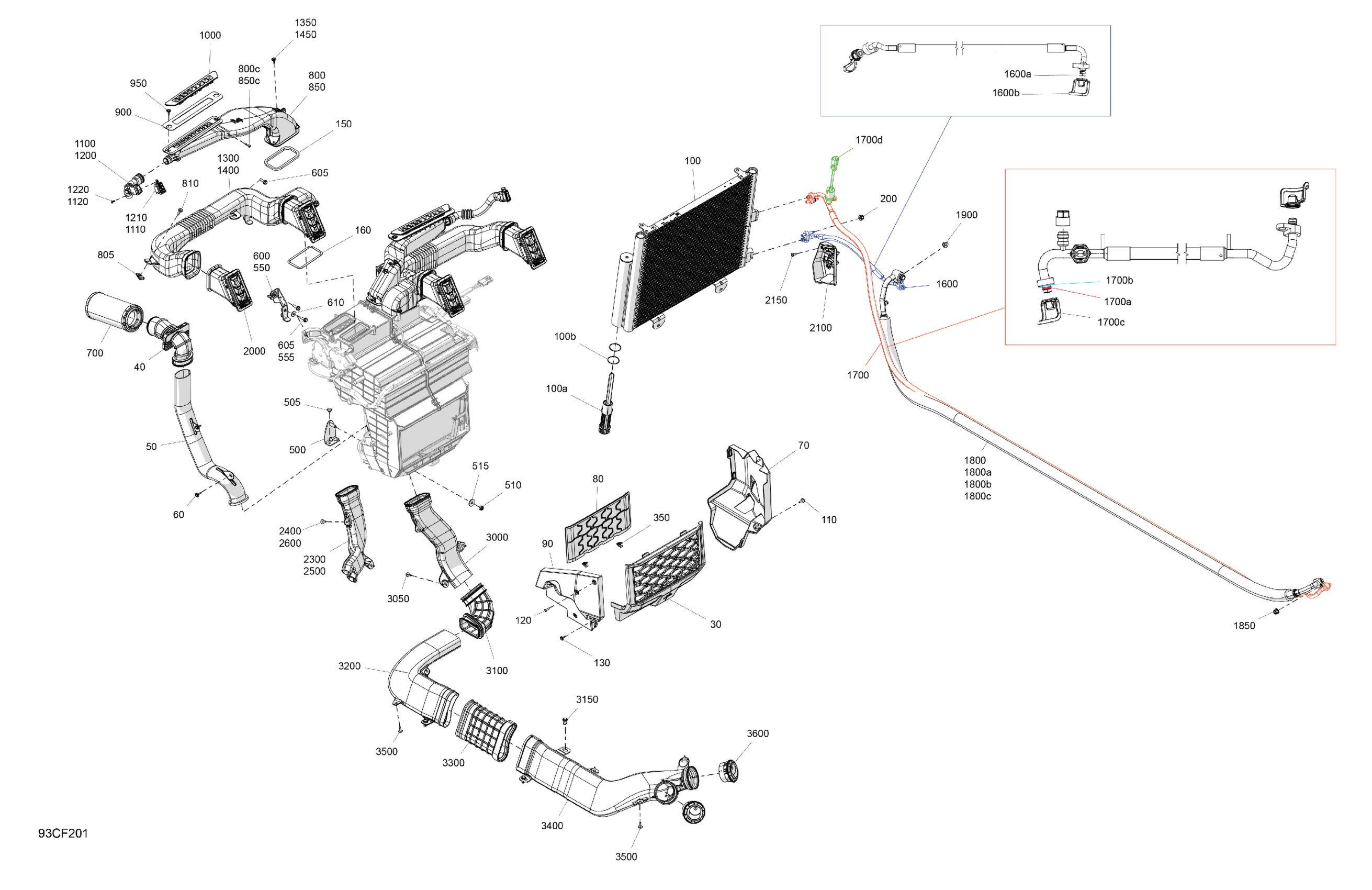

Can-Am Defender MAX - HD11 - Lone Star CAB - 6LTA - Stealth Black - 65" Width, 2026 Miscellaneous - Options Diagram

#

Description
Price

30

Ventilation Grille

705801049

$12.45

40

Ventilation Duct Intake

705801171

$10.00

50

Ventilation Duct

705801134

$27.66

60

Screw M4 X 16

250000725

$2.87

70

Rear Molded Ext Trim

705801488

$11.98

80

Air Filter

705801050

$43.05

90

LH Lower Panel

705801503

$11.98

100

Condenser | Includes 100 to 100b

705801165

$516.89

100a

Dessicant Cartridge

715900672

$46.12

100b

O-RIng

715900915

$3.68

110

Screw M4 X 16

250000725

$2.87

120

Torx-Truss Pt K40 X 16

250000759

$1.74

130

Screw M4 X 16

250000725

$2.87

150

Gasket

705801663

$8.29

160

Gasket

705801664

$8.29

200

Hex. Elastic Flange Nut M8

233281416

$1.25

350

Clip

517306478

$1.37

500

Lower Console Support

705801245

$18.43

505

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

510

Hex. Elastic Stop Nut M8

232581414

$0.47

515

Flat Washer 8 mm

234082410

$1.11

550

RH Upper Console Support

705801810

$15.35

555

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

600

LH Upper Console Support

705801811

$13.83

605

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

610

Stainless Steel Flat Washer

234062670

$1.74

700

Air Filter

705800395

$32.28

800

LH Front Ventilation Grille Ass'y | Includes 800 to 800c

705801074

$55.35

800c

Torx-Truss Pt K40 X 16

250000759

$1.74

805

Panel Nut M6 X 1.0

250100208

$1.07

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

850

RH Front Ventilation Grille Ass'y | Includes 850 to 850c

705801073

$55.35

850c

Torx-Truss Pt K40 X 16

250000759

$1.74

900

Gasket Cut

705801508

$8.29

950

Screw M4 X 16

250000725

$2.87

1000

Ventilation Grille

705801069

$11.18

1100

LH Front Soft Ventilation Duct

705801621

$10.00

1110

RH Upper Ventilation Grille

705801541

Unavailable

1120

Torx-Truss Screw K40 X 10

250001034

$0.81

1200

RH Front Soft Ventilation Duct

705801622

$10.00

1210

LH Upper Ventilation Grille

705801540

Unavailable

1220

Torx-Truss Screw K40 X 10

250001034

$0.81

1300

LH Front Formed Ventilation Duct

705801056

$65.35

1350

Screw M4 X 16

250000725

$2.87

1400

RH Front Formed Ventilation Duct

705801055

$65.35

1450

Screw M4 X 16

250000725

$2.87

1600

Hose | Includes 1600 to 1600b

705801003

$16.89

1600a

O'Ring | Not Shown

715900707

$3.68

1600b

Sealing Washer #6

715900665

$10.14

1700

Compressor Hose | Includes 1700 to 1700d

705801084

$146.12

1700a

O'Ring | Not Shown

715900707

$3.68

1700b

Sealing Washer #8

715900666

$10.14

1700c

Plastic Cap

715901057

$8.29

1700d

Pressure Switch

715901058

Unavailable

1800

Compressor Hose | Includes 1800 to 1800c

705801083

$147.66

1800a

O'Ring

715900708

$4.60

1800b

Sealing Washer #12

715900667

$10.14

1800c

Plastic Cap

715901056

$8.29

1850

Hex. Elastic Flange Nut M8

233281416

$1.25

1900

Hex. Elastic Flange Nut M8

233281416

$1.25

2000

Ventilation Grille Ass'y

705801059

Unavailable

2100

Hose Support

705801166

$6.45

2150

Torx Screw K50 X 16

250000720

$1.39

2300

LH Under Formed Ventilation Duct

705801058

$16.89

2400

Screw M4 X 16

250000725

$2.87

2500

RH Under Formed Ventilation Duct

705801057

$19.20

2600

Screw M4 X 16

250000725

$2.87

3000

LH Rear Ventilation Duct

705801168

$17.66

3050

Screw M4 X 16

250000725

$2.87

3100

Rear Central Soft Ventilation Duct

705801263

$10.00

3150

Tuflok Plastic Rivet

293150230

$1.21

3200

Rear Central Ventilation Duct

705801413

$27.66

3300

Rear Central Ventilation Duct

705801403

$10.00

3400

Rear Upper Ventilation Duct

705801261

$67.66

3500

Screw M4 X 16

250000725

$2.87

3600

Grille Scoop

705800436

$23.05
