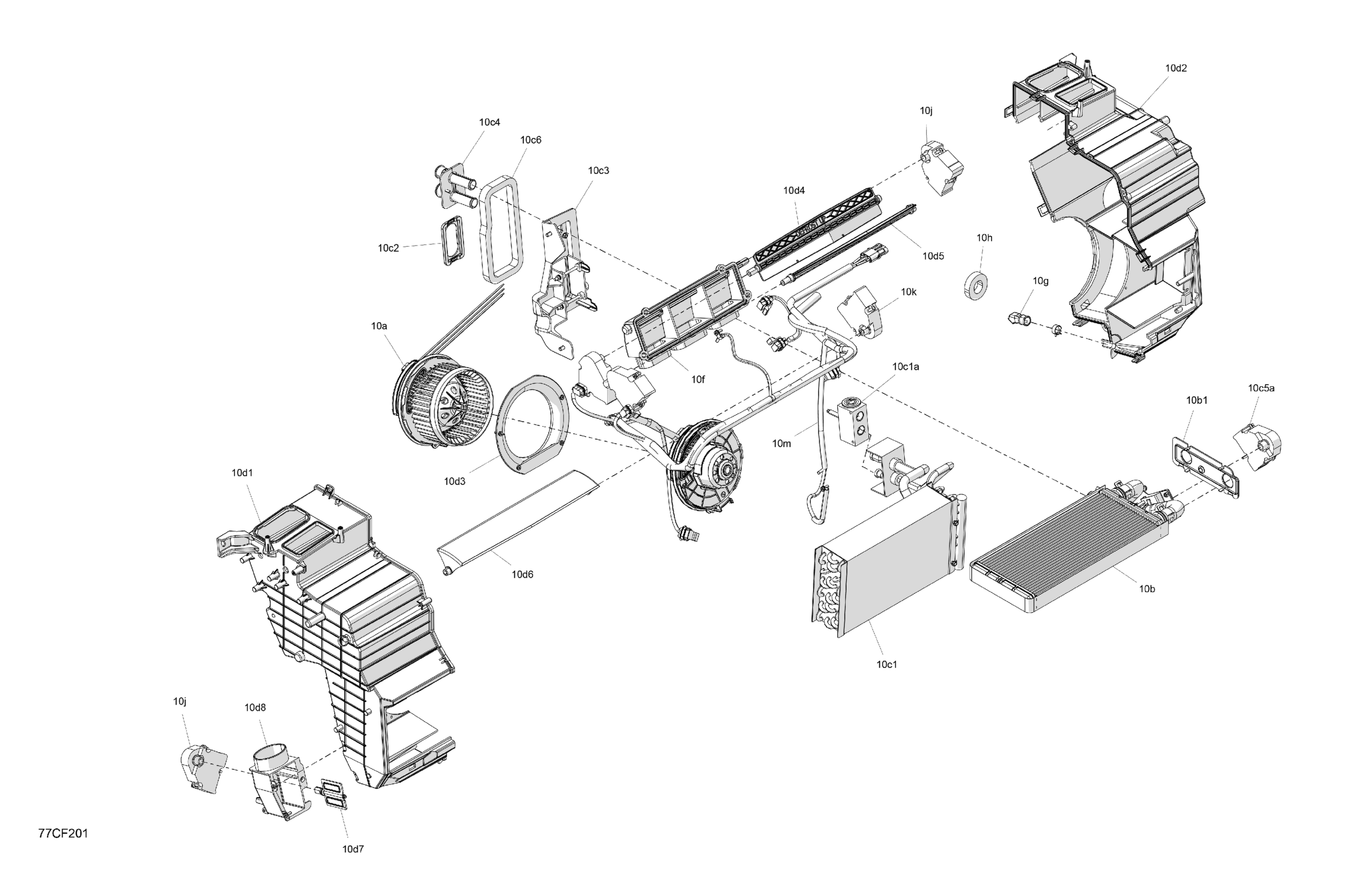

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Enclosure Cab - Air Conditioning Unit Diagram

Description

Price

10a

Heater Unit Fan

705801475

$379.99

10b

Radiator Ass'y | Includes 10b to 10b2

705801076

$599.99

10b1

RH Molded Cover Int

705801490

$19.99

10c1

Evaporator | Includes 10c1 to 10c1a

705801082

$499.99

10c1a

Expansion Valve

705801835

$76.99

10c2

Gasket

705800519

$20.99

10c3

Molded Lateral Support Reinforcement

705801489

$64.99

10c4

Rear Coolant Manifold

705801577

$39.99

10c5a

Actuator

705801478

$189.99

10c6

Gasket Cut

705801492

Unavailable

10d1

LH Fan Housing

705801416

Unavailable

10d2

RH Fan Housing

705801417

Unavailable

10d3

Molded Ventilation Duct interior

705801487

Unavailable

10d4

Vent Door

705801481

Unavailable

10d5

Vent Door

705801482

Unavailable

10d6

Molded Temperature Control Valve

705801484

Unavailable

10d7

Vent Door

705801483

Unavailable

10d8

Molded Air Inlet Box

705801485

Unavailable

10f

Distributer | Includes 10f to 10f3

705801857

$49.99

10g

Drain Valve

705800809

$6.19

10h

Self Adhesive Weather Strip

705800496

$7.69

10j

Actuator

705801478

$189.99

10k

Actuator

705801479

$309.99

10m

Air Conditioning Wiring Harness

705801491

$159.99
