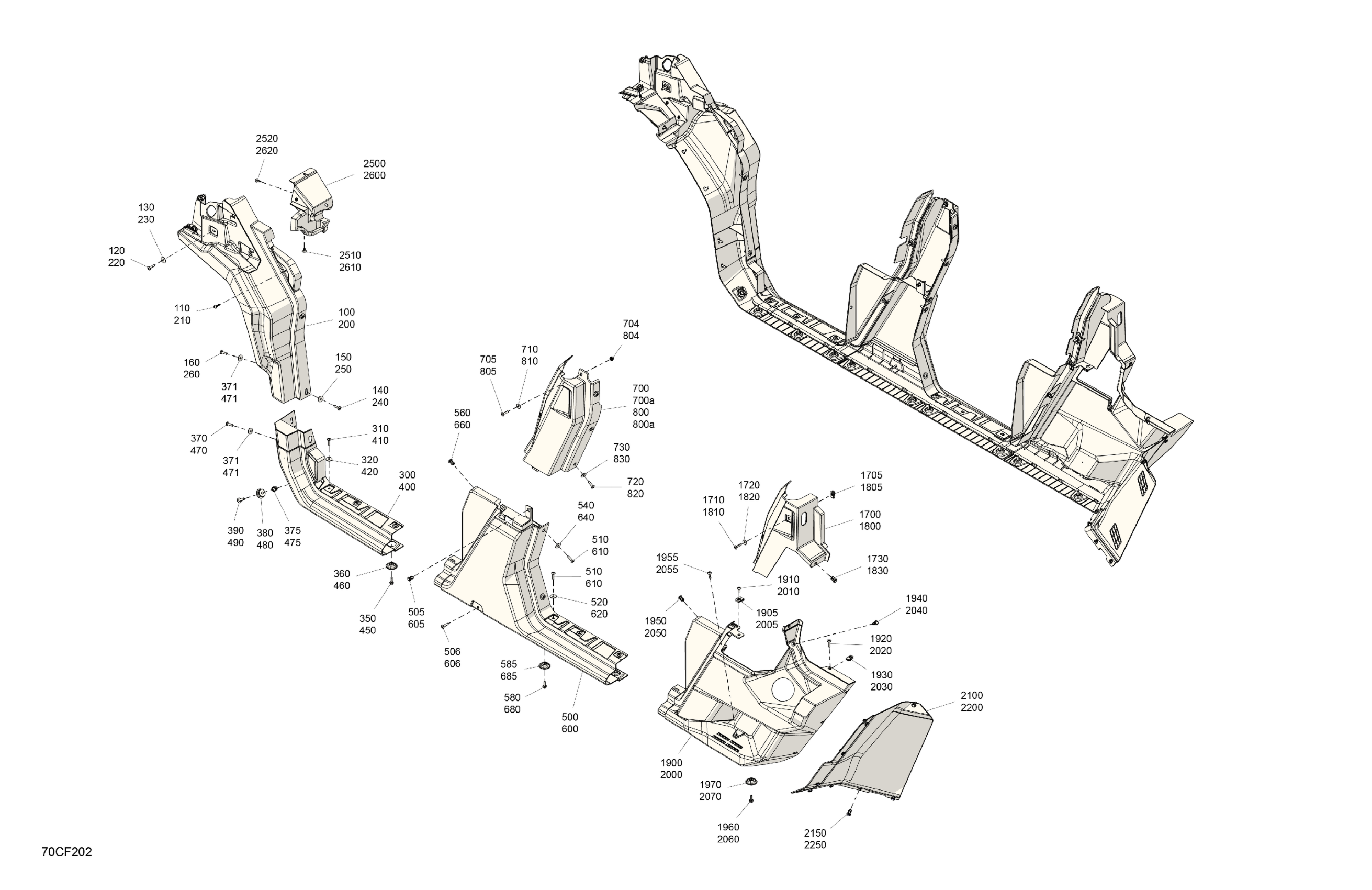

Can-Am Defender MAX - HD11 - LTD CAB - 6MTC - Dusty Navy Satin - 65" Width, 2026 Body - System Diagram

#

Description
Price

100

LH Front Mud Guard

705017731

$65.99

110

Torx Screw Truss Head K50X20 T20

250000760

$2.11

120

Torx Truss Screw M6 X 25

250000807

$2.11

130

Flat Washer M6.6 X 22

250200162

$2.32

140

Torx Truss Screw M6 X 25

250000807

$2.11

150

Flat Washer M6.6 X 22

250200162

$2.32

160

Torx Truss Screw M6 X 25

250000807

$2.11

200

RH Front Mud Guard

705017732

$65.99

210

Torx Screw Truss Head K50X20 T20

250000760

$2.11

220

Torx Truss Screw M6 X 25

250000807

$2.11

230

Flat Washer M6.6 X 22

250200162

$2.32

240

Torx Truss Screw M6 X 25

250000807

$2.11

250

Flat Washer M6.6 X 22

250200162

$2.32

260

Torx Truss Screw M6 X 25

250000807

$2.11

300

LH Front Side Panel

705018368

$65.99

310

Torx Truss Screw M6 X 25

250000807

$2.11

320

Flat Washer M6.6 X 22

250200162

$2.32

320

Flat Washer M6.6 X 22

250200162

$2.32

350

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

360

Cup

705018367

$7.89

370

Torx Truss Screw M6 X 25

250000807

$2.11

371

Flat Washer M6.6 X 22

250200162

$2.32

375

Insert Half Hex Body M8 x 1.25

293450307

$2.69

380

Spacer

708305071

$20.99

390

Hex Torx Truss M8 X30

250000745

$3.17

400

RH Front Body Panel

705018369

$65.99

410

Torx Truss Screw M6 X 25

250000807

$2.11

420

Flat Washer M6.6 X 22

250200162

$2.32

420

Flat Washer M6.6 X 22

250200162

$2.32

450

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

460

Cup

705018367

$7.89

470

Torx Truss Screw M6 X 25

250000807

$2.11

471

Flat Washer M6.6 X 22

250200162

$2.32

475

Insert Half Hex Body M8 x 1.25

293450307

$2.69

480

Spacer

708305071

$20.99

490

Hex Torx Truss M8 X30

250000745

$3.17

500

LH Middle Side Panel

705018446

$109.99

505

Tuflok Plastic Rivet

293150230

$1.47

506

Torx Screw M6 X 20

250000722

$1.68

510

Torx Truss Screw M6 X 25

250000807

$2.11

520

Flat Washer M6.6 X 22

250200162

$2.32

540

Flat Washer M6.6 X 22

250200162

$2.32

560

Tuflok Plastic Rivet

293150230

$1.47

580

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

585

Cup

705018367

$7.89

600

RH Middle Side Panel

705018447

$109.99

605

Tuflok Plastic Rivet

293150230

$1.47

606

Torx Screw M6 X 20

250000722

$1.68

610

Torx Truss Screw M6 X 25

250000807

$2.11

620

Flat Washer M6.6 X 22

250200162

$2.32

640

Flat Washer M6.6 X 22

250200162

$2.32

660

Tuflok Plastic Rivet

293150230

$1.47

680

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

685

Cup

705018367

$7.89

700

LH Middle Cage Cover | Includes 1150 to 1150a

705011955

$37.99

700a

LH Middle Cage Cover

705010601

$38.99

704

Insert Half Hex Body M6 x 1.0

250100199

$3.19

705

Torx Truss Screw M6 X 25

250000807

$2.11

710

Stainless Steel Flat Washer

234062670

$2.11

720

Torx Truss Screw M6 X 25

250000807

$2.11

730

Flat Washer M6.6 X 22

250200162

$2.32

800

RH Middle Cage Cover | Includes 1160 to 1160a

705011957

$38.99

800a

RH Middle Cage Cover

705010602

$38.99

804

Insert Half Hex Body M6 x 1.0

250100199

$3.19

805

Torx Truss Screw M6 X 25

250000807

$2.11

810

Stainless Steel Flat Washer

234062670

$2.11

820

Torx Truss Screw M6 X 25

250000807

$2.11

830

Flat Washer M6.6 X 22

250200162

$2.32

1700

LH Rear Cage Trim

715011318

$21.99

1705

Panel Nut M6 X 1.0

250100198

$2.11

1710

Torx Truss Screw M6 X 25

250000807

$2.11

1720

Stainless Steel Flat Washer

234062670

$2.11

1730

Tuflok Plastic Rivet

293150230

$1.47

1800

RH Rear Cage Trim

715011319

$21.99

1805

Panel Nut M6 X 1.0

250100198

$2.11

1810

Torx Truss Screw M6 X 25

250000807

$2.11

1820

Stainless Steel Flat Washer

234062670

$2.11

1830

Tuflok Plastic Rivet

293150230

$1.47

1900

LH Rear Fender

705017733

$109.99

1905

Panel Nut M6 X 1.0

250100208

$1.46

1910

Torx Truss M6X14

250000789

$5.39

1920

Torx Screw M6 X 20

250000722

$1.68

1930

Panel Nut M6 X 1.0

250100198

$2.11

1940

Tuflok Plastic Rivet

293150230

$1.47

1950

Tuflok Plastic Rivet

293150230

$1.47

1955

Torx Screw M6 X 20

250000722

$1.68

1960

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1970

Cup

705018367

$7.89

2000

RH Rear Fender

705017734

$109.99

2005

Panel Nut M6 X 1.0

250100208

$1.46

2010

Torx Truss M6X14

250000789

$5.39

2020

Torx Screw M6 X 20

250000722

$1.68

2030

Panel Nut M6 X 1.0

250100198

$2.11

2040

Tuflok Plastic Rivet

293150230

$1.47

2050

Tuflok Plastic Rivet

293150230

$1.47

2055

Torx Screw M6 X 20

250000722

$1.68

2060

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

2070

Cup

705018367

$7.89

2100

LH Rear Deflector

705017744

$51.99

2150

Tuflok Plastic Rivet

293150230

$1.47

2200

RH Rear Deflector

705017745

$51.99

2250

Tuflok Plastic Rivet

293150230

$1.47

2500

LH Front Deflector

705018750

$54.99

2510

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2520

Screw PT Type K-50 X 16

250000959

$2.11

2600

RH Front Deflector

705018751

$54.99

2610

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2620

Screw PT Type K-50 X 16

250000959

$2.11
