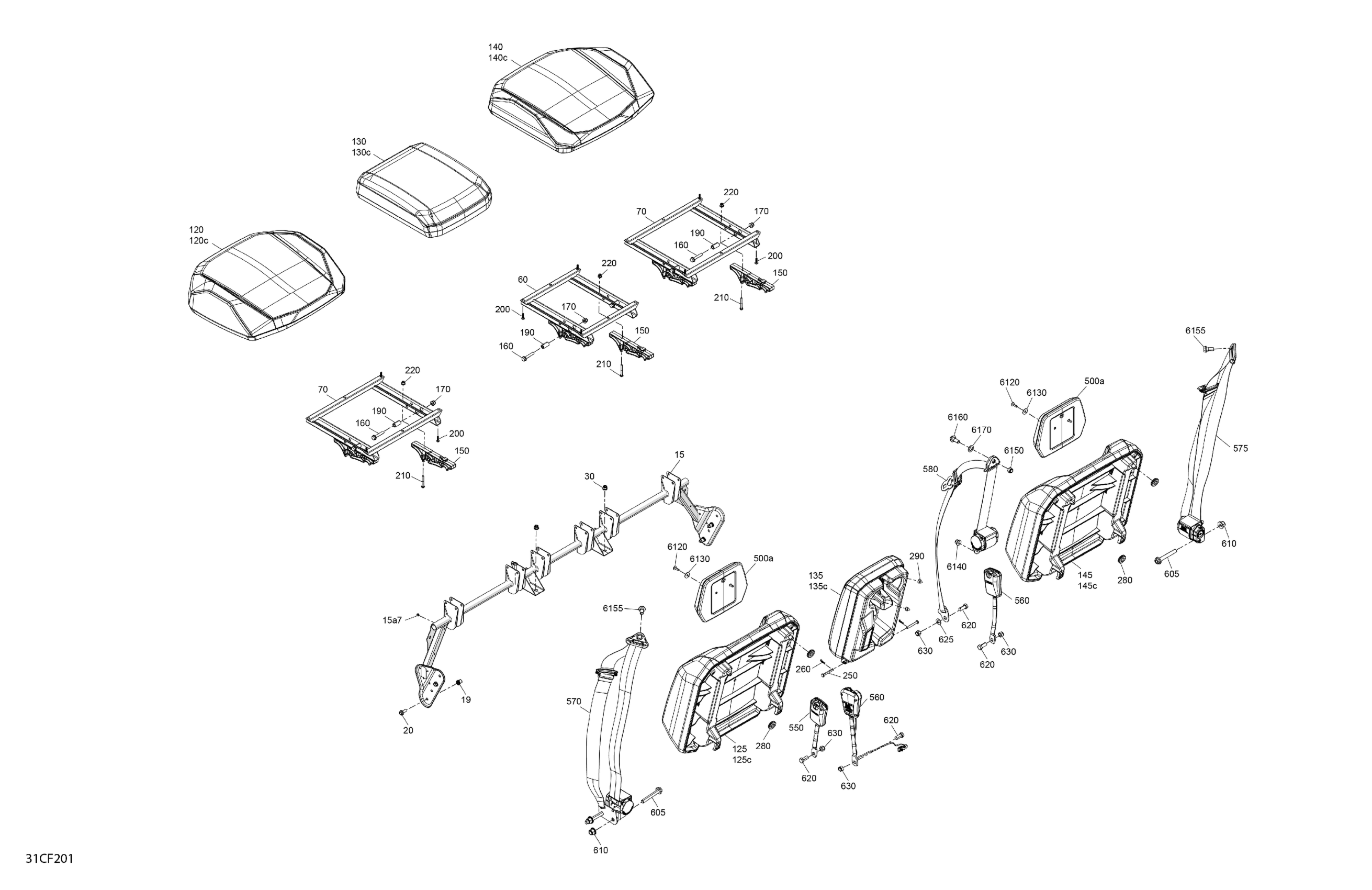

Can-Am Defender MAX - HD11 - LTD CAB - 6MTC - Dusty Navy Satin - 65" Width, 2026 Body - Seat - Rear Section Diagram

#

Description
Price

15

Seat Support | Includes 10 to 10a7

708003621

$126.09

15a7

Pop Rivet 3/16 X ,425

293150293

$0.30

19

Insert Half Hex Body M8 x 1.25

293450307

$1.97

20

Hex Screw Washer Head M8 X 20

207582054

$3.00

30

Hex. Elastic Flange Nut M8

233281416

$1.43

60

Mid Seat Member

708002815

$182.81

70

Passenger Seat Member

708002821

$182.81

120

LH Seat Cushion Ass'y | Includes 90 to 90c

708003895

$253.70

120c

LH Cushion Cover

708003896

$99.99

125

Backrest Ass'y | Includes 115 to 115c

708004242

$349.99

125c

Backrest Cover

708004258

$99.99

130

Central Seat Cushion Ass'y | Includes 100 to 100c

708003975

$253.70

130c

Central Cushion Cover

708003979

$99.99

135

Central Backrest Ass'y | Includes 105 to 105c

708003983

$349.99

135c

Central Backrest Cover

708003987

$99.99

140

RH Seat Cushion Ass'y | Includes 110 to 110c

708003901

$253.70

140c

RH Cushion Cover

708003902

$99.99

145

Backrest Ass'y | Includes 115 to 115c

708004242

$349.99

145c

Backrest Cover

708004258

$99.99

150

Seat Base Pivot

708002581

$9.33

160

Hex. Flange Screw M8 X 45

207684544

$3.57

170

Hex. Elastic Flange Nut M8

233281416

$1.43

190

Bushing

708003749

$2.85

200

Torx Screw Truss Head K50X20 T20

250000760

$2.00

210

Hex. Screw M6 X 45

207064544

$1.96

220

Hex. Flange Elastic Nut M6

233261494

$1.45

250

Pin

250400069

$2.88

260

Hairpin Cotter

269800431

$0.97

280

Grommet

517303756

$3.61

290

Rubber Bumper

293830005

$6.12

500a

Headrest

708002853

$52.21

550

Middle Buckle

708003163

$60.42

560

Passenger Buckle

708002329

$60.42

570

LH Safety Belt

708003082

$219.37

575

RH Safety Belt

708003200

$219.37

580

Central Safety Belt

708003688

$219.37

605

Hex. Screw M12 X 80

207028046

$3.73

610

Elastic Flange Nut M12

250001195

$2.46

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.79

625

Flat Washer M12

250200102

$2.00

630

Lock Nut Nylon 7/16

250100183

$1.88

6120

Torx Screw M6 X 20

250000722

$1.54

6130

Flat Washer M6.6 X 22

250200162

$2.19

6140

Elastic Flange Nut M12

233221416

$2.67

6150

Lock Nut Nylon 7/16

250100183

$1.88

6155

Safety Belt screw

708002504

$4.76

6160

Safety Belt Screw

708000890

$3.79

6170

Position Washer

708000891

$0.97
