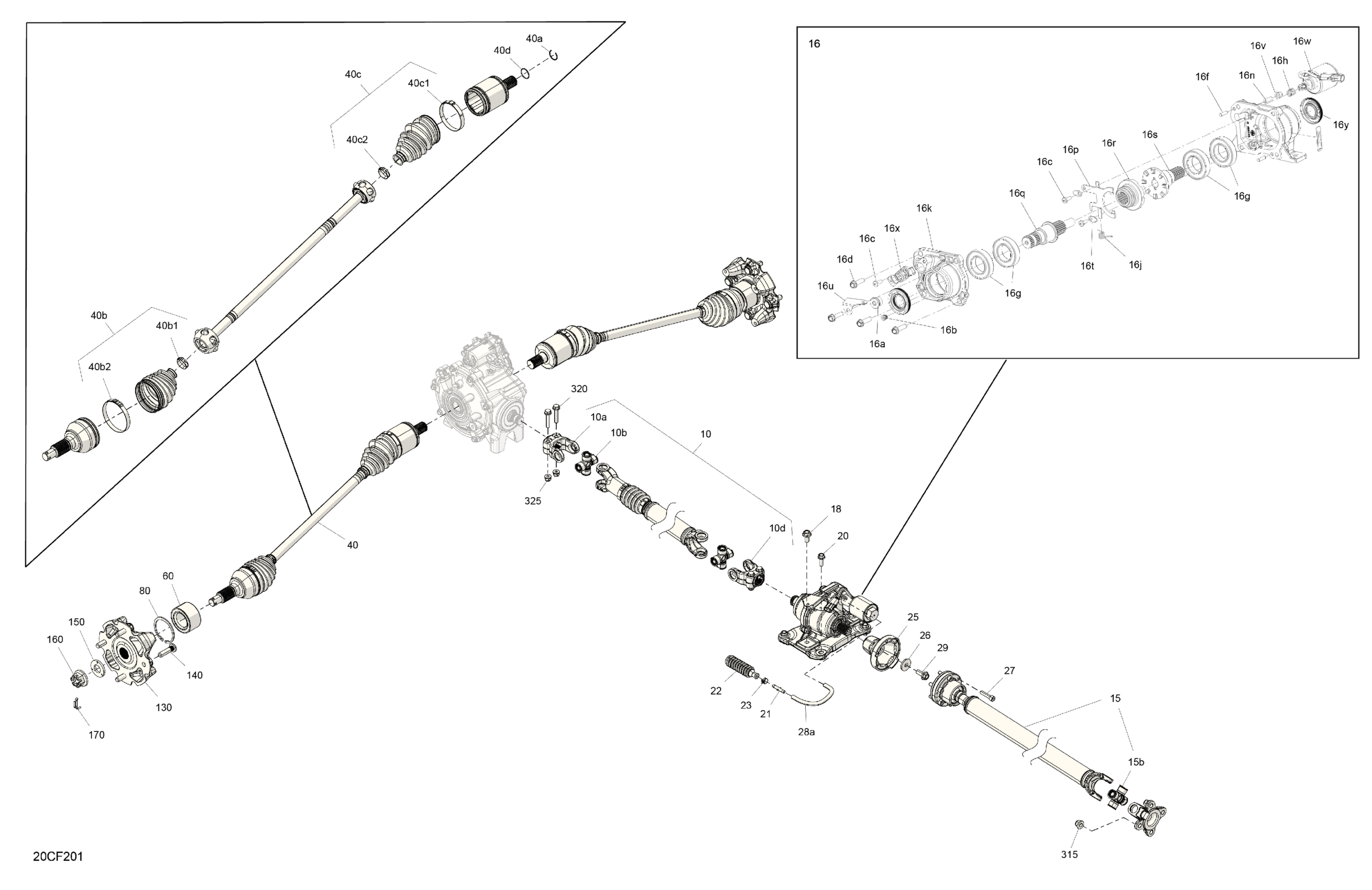

Can-Am Defender MAX - HD11 - Lone Star - 6UTA - Stealth Black - 65" Width, 2026 Drive - Front - Common Parts Diagram

#

Description
Price

10

Front Drive Axle Ass'y | Includes 10 to 10d

705403453

$219.37

10a

Connecting Yoke 20Th

715900939

$23.10

10b

Universal Joint Ass'y

715900911

$43.25

10d

Connecting Yoke 18Th

715900938

$23.10

15

Rear Drive Axle Ass'y | Includes 15 to 15b

705403487

$268.63

15b

Universal Joint Ass'y

715900911

$43.25

16

Clutch Ass'y | Includes 16 to 16y

705403345

$376.09

16a

Fill Level Plug

705501889

$18.63

16b

Fill Level Plug M10

715900563

$25.34

16c

Torx Screw M6 X 16

705402845

$9.25

16d

Bolt

705501886

$6.30

16f

Housing

715900674

$127.58

16g

Ball Bearing

705402847

$44.75

16h

Compression Spring

715900756

$12.21

16j

Return Torsion Spring

715900884

Unavailable

16k

Cover

715900885

Unavailable

16n

Vent Tube 1/4

715900887

$10.31

16p

Shift Fork Pivot

715900888

Unavailable

16q

Output Shaft

715900889

Unavailable

16r

Disconnect Dog

715900960

$72.36

16s

Input Shaft

715901004

$107.43

16t

Retainer Fork | Not Shown

715900766

$10.78

16u

Solenoid Clip Bracket

715901005

$12.97

16v

Vent Cap 5/16

715900533

$6.30

16w

Solenoid

715900894

$217.13

16x

Position Sensor

715900895

$104.45

16y

Triple Lip Seal 27.5X55.0X7.5

715900896

$44.00

18

Hex. Flange Screw M10 X 20

207502046

$2.00

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

21

Fitting Pipe Straight

293710221

$1.73

22

Rubber Bellow | 4X4

705400552

$5.84

23

Spring Clamp

414415200

$0.81

25

Flange

705403460

$32.06

26

Washer

503183300

$5.51

27

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.48

28a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

29

Hex. Flange Screw M10 X 25

207502546

$2.00

40

Front CV Joint Ass'y | Includes 40 to 40d

705403358

$219.37

40a

Circlip Joint

715901033

$5.27

40b

CV Joint Boot Kit | Includes 40b to 40b2

715901034

$39.52

40b1

Oetiker Clamp, Small

715900261

$5.04

40b2

Oetiker Clamp, Large

715900260

$9.00

40c

CV Joint Boot Kit | Includes 40c to 40c2

715901035

$39.52

40c1

Oetiker Clamp, Small

715900261

$5.04

40c2

Oetiker Clamp, Large

715900262

$9.00

40d

O-ring

715900580

$1.97

60

Ball Bearing

293350151

$69.34

80

Internal Retaining Ring

293370169

$1.30

130

Machined Wheel Hub

705503479

$107.43

140

Wheel Stud M12X1.5

250300625

$3.73

150

Conical Spring Washer M20

250200170

$12.63

160

Castle Nut M20

250100193

$7.64

170

Cotter Pin

250400084

$2.06

315

Flange Elastic Nut M10

233201466

$3.01

320

Hex. Flange Screw M8 X 42

250001050

$1.09

325

Hex. Elastic Flange Nut M8

233281416

$1.43
