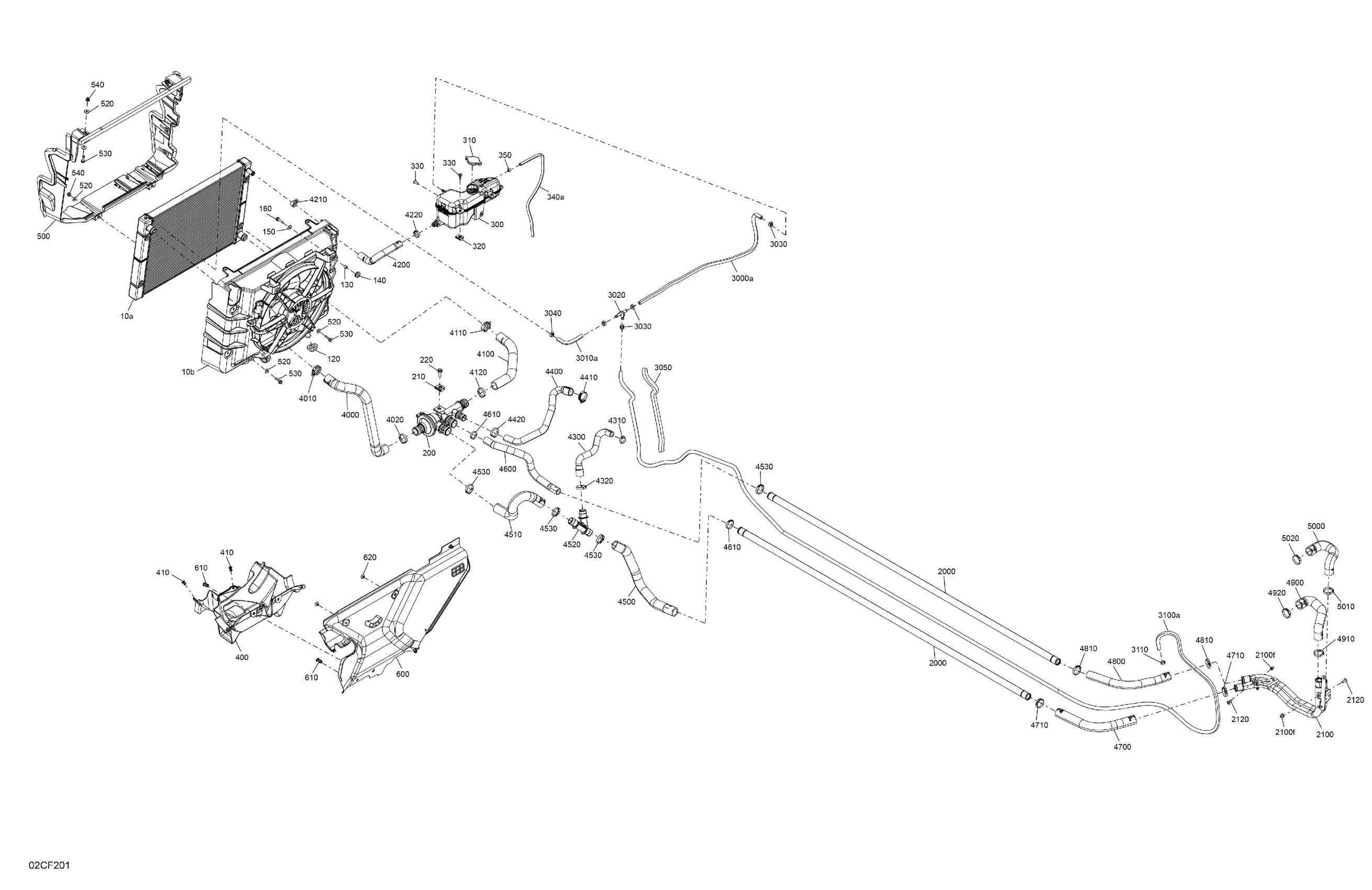

Can-Am Defender MAX - HD11 - Lone Star CAB - 6LTA - Stealth Black - 65" Width, 2026 Engine - Cooling Diagram

#

Description
Price

10a

Radiator

709201485

$304.58

10b

Cooling Fan Ass'y

709201490

Unavailable

120

Rubber Stopper

709201320

$9.22

130

Bushing

293900105

$6.26

140

Overmolded Grommet

293720130

$4.38

150

Stainless Steel Flat Washer

234062670

$1.74

160

Hex. Flange Screw M6 X 25

207662554

$1.48

200

Thermostat Housing

709201310

$96.89

210

Panel Nut M6 X 1.0

250100208

$1.07

220

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

300

Coolant Tank

709201340

$78.43

310

Radiator Pressure Cap

709200207

$18.82

320

Panel Nut M6 X 1.0

250100208

$1.07

330

Torx Truss Screw M6 X 16

250000721

$1.39

340a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

350

Spring Clamp

414554800

$0.83

400

Air Deflector

709201311

$99.97

410

Tuflok Plastic Rivet

293150230

$1.21

500

Front Radiator Deflector

709201321

$42.28

520

Stainless Steel Flat Washer

234062670

$1.74

530

Hex. Flange Screw M6 X 25

207662554

$1.48

540

Hex. Flange Elastic Nut M6

233261494

$1.26

600

Rear Air Deflector

709201327

$46.12

610

Tuflok Plastic Rivet

293150230

$1.21

620

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2000

Heater Tubing

709200658

$13.98

2100

Rigid Engine Hose | Includes 2100 to 2100f

709201424

$36.89

2100f

Insert

293450275

$9.89

2120

Torx Truss Screw M6 X 16

250000721

$1.39

3000a

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

3010a

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

3020

Y-Fitting

293710059

$8.19

3030

Crimp Clamp, 15.3-706R

293650047

$2.64

3040

Oetiker Clamp

293650042

$1.40

3050

Tubing 16 Mm 1000Mm Long

219704408

$6.23

3100a

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

3110

Crimp Clamp, 15.3-706R

293650047

$2.64

4000

Radiator Hose In

709201305

$15.35

4010

Norma Spring Clamp

293650166

$4.28

4020

Crimp Clamp

293650332

$7.37

4100

Radiator Hose Out

709201306

$11.06

4110

Norma Spring Clamp

293650166

$4.28

4120

Crimp Clamp

293650332

$7.37

4200

Coolant Tank Hose

709201299

$36.89

4210

Norma Spring Clamp

293650243

$2.62

4220

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

4300

Thermostat Hose HVAC

709201308

$13.98

4310

Gear Clamp

293650284

$3.61

4320

Crimp Clamp

293650332

$7.37

4400

Thermostat Hose HVAC

709201309

$13.98

4410

Norma Gear Clamp

293650098

$4.28

4420

Oetiker Gear Clamp

293650165

$4.32

4500

Thermostat Hose IN

709201304

$23.05

4510

Thermostat Hose

709201514

$13.98

4520

Y Hose Fitting

709201588

$15.35

4530

Crimp Clamp

293650332

$7.37

4600

Thermostat Hose Out

709201307

$13.98

4610

Crimp Clamp

293650332

$7.37

4700

Engine Hose Out

709201298

$41.51

4710

Crimp Clamp

293650332

$7.37

4800

Engine Hose In

709201301

$41.51

4810

Crimp Clamp

293650332

$7.37

4900

Engine Hose

709201551

$18.43

4910

Crimp Clamp

293650332

$7.37

4920

Crimp Clamp

293650333

$3.55

5000

Engine Hose

709201423

$18.43

5010

Crimp Clamp

293650332

$7.37

5020

Crimp Clamp

293650333

$3.55
