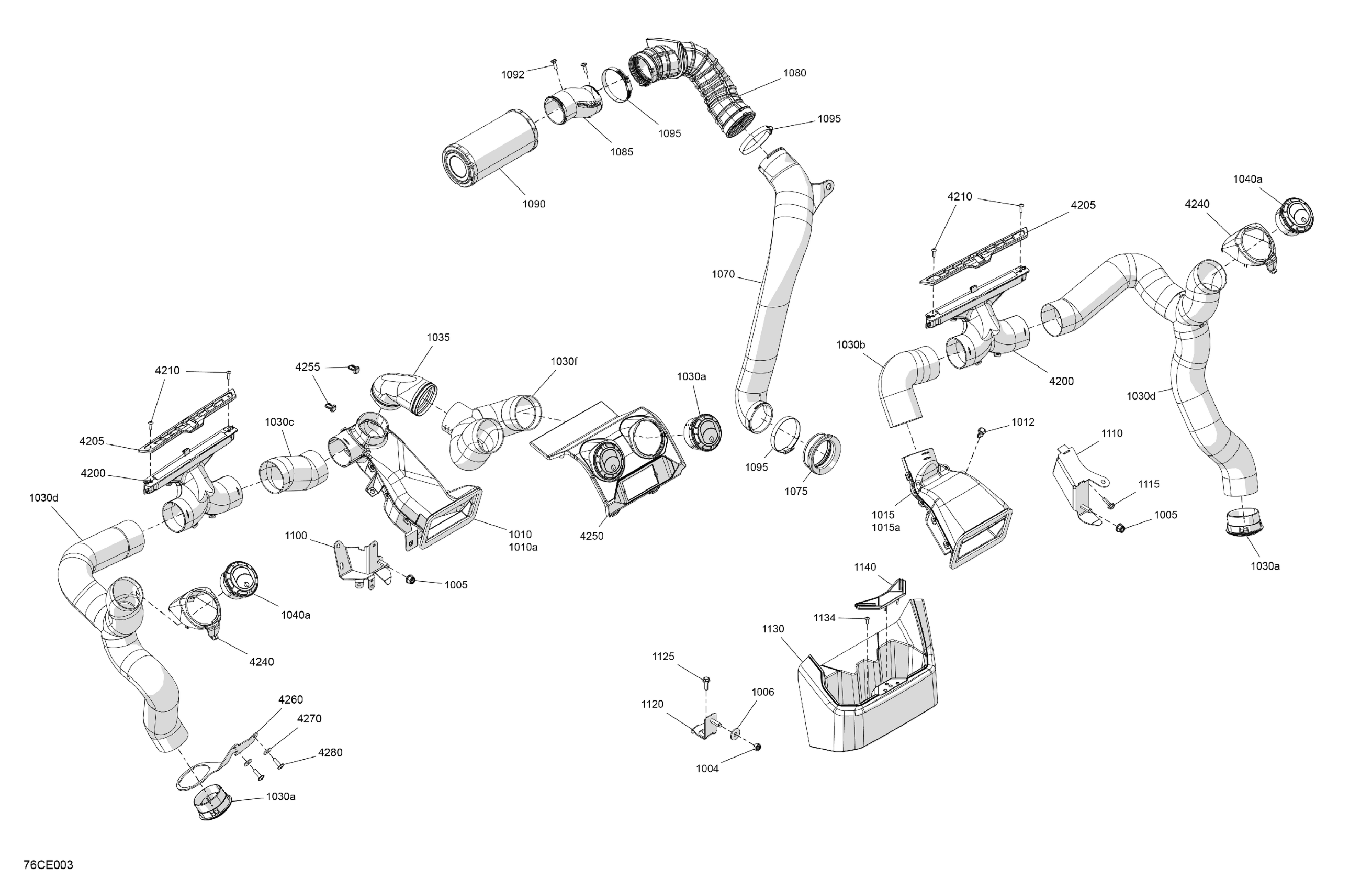

Can-Am Defender - HD10 - LTD CAB - 8JSA - Fiery Red Metallic - 65" Width CALI, 2025 Enclosure Cab - Air Conditioning System Diagram

Description

Price

1004

Hex. Elastic Stop Nut M8

232581414

$0.47

1005

Hex. Flange Elastic Nut M8

233281414

$1.14

1006

Flat Washer 8 mm

234082410

$1.11

1010

LH Manifold Ass'y | Includes 1010 to 1010a

705800649

$18.43

1010a

LH Manifold Ass'y | Includes 1010 to 1010a

705800649

$18.43

1012

Tuflok Plastic Rivet

293150230

$1.21

1015

RH Manifold Ass'y | Includes 1015 to 1015a

705800650

$18.43

1015a

RH Manifold Ass'y | Includes 1015 to 1015a

705800650

$18.43

1030a

Grille Scoop

705800436

$23.05

1030b

Duct Ventilation Kit

705800706

$10.00

1030c

Duct Ventilation Kit

705800706

$10.00

1030d

Duct Ventilation Kit

705800842

$67.66

1030f

Ventilation Duct Kit

705800707

$71.51

1035

Adaptor

705800690

$27.66

1040a

Grille Scoop

705800436

$23.05

1070

Intake Duct

705800377

$27.66

1075

Lower Intake Fitting

705800437

$18.43

1080

Upper Intake Fitting

705800438

$55.35

1085

Upper Intake Duct

705800439

$32.28

1090

Air Filter

705800395

$32.28

1092

Torx Screw K50 X 16

250000720

$1.39

1095

Norma Gear Clamp

293650118

$9.74

1100

LH Upper Console Support

705801110

Unavailable

1110

RH Upper Console Support

705801112

$64.58

1115

Hex. Flange Screw M6 X 20

207662044

$1.66

1120

Lower Console Support

705801148

Unavailable

1125

Hex. Flange Screw M6 X 20

207662044

$1.66

1130

Cup Holder

705800452

$36.89

1134

Torx Truss PT K40 x 12

250001131

$1.74

1140

Cup Retainer

707900036

$6.45

4200

Central Adapter

705800501

$27.66

4205

Front Ventilation Grille

705800425

$11.18

4210

Torx-Truss Pt K40 X 16

250000759

$1.74

4240

Side Grille Support

705800426

$4.95

4250

Central Grille Support

705800994

$23.05

4255

Tuflok Plastic Rivet

293150230

$1.21

4260

LH Lower Grille Support

705801099

$23.05

4270

Stainless Steel Flat Washer

234062670

$1.74

4280

Torx Screw M6 X 20

250000722

$1.34
