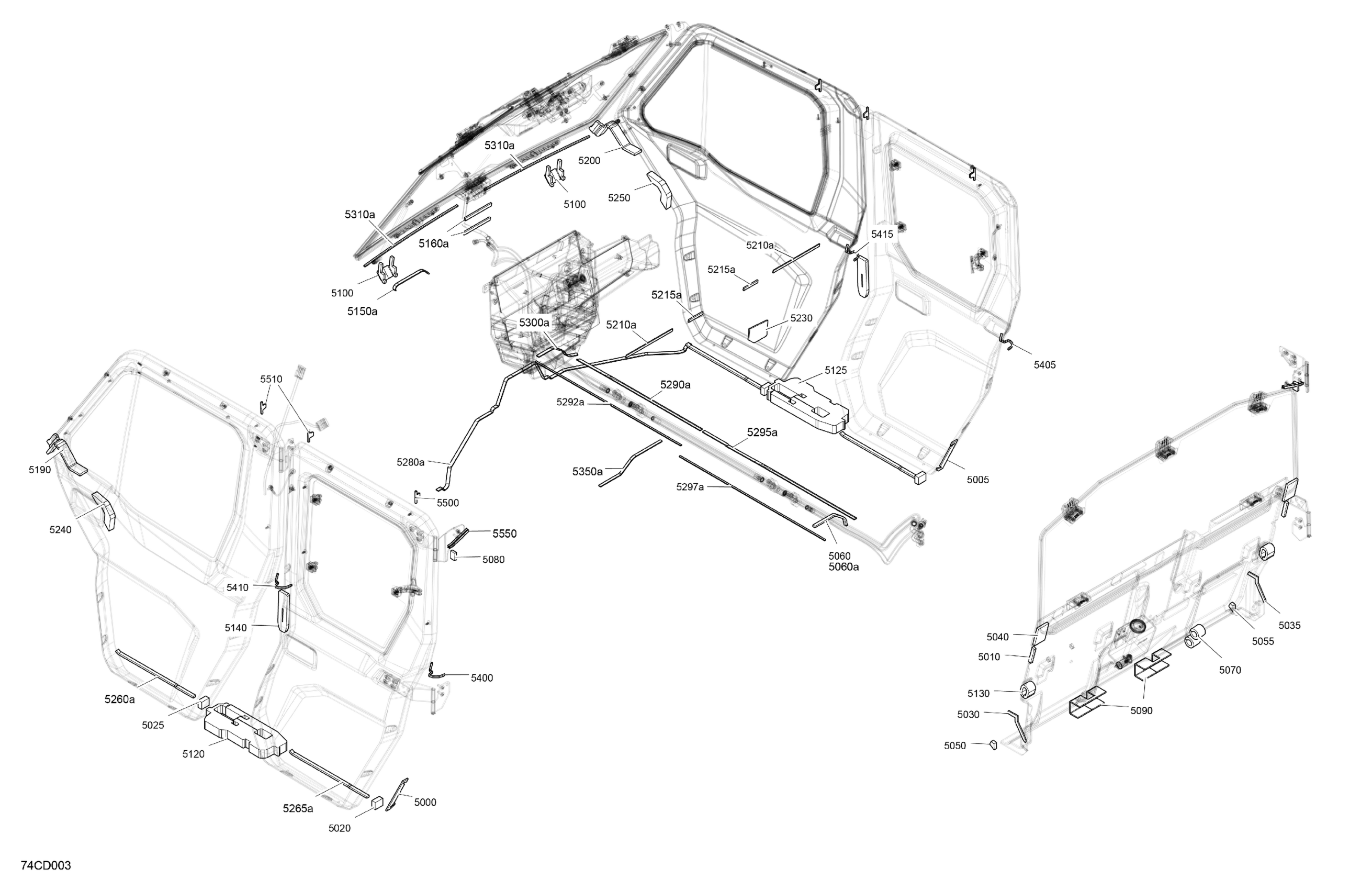

Can-Am Defender MAX HD10 - LTD CAB - 6MRA - Fiery Red Metallic - 67" Width CALI, 2024 Enclosure Cab - Isolations Diagram

Description

Price

5000

Acoustic Insulation

705800504

$5.29

5005

Acoustic Insulation

705800515

$5.29

5010

Acoustic Insulation

705800580

$2.99

5020

Acoustic Insulation

705800506

$5.29

5025

Acoustic Insulation

705800506

$5.29

5030

Acoustic Insulation

705800507

$5.29

5035

Acoustic Insulation

705800505

$5.29

5040

Acoustic Insulation

705800508

$5.29

5050

Acoustic Insulation

705800509

$5.29

5055

Acoustic Insulation

705800579

$5.29

5060

Neoprene Seal (1PAC=3M)

293200003

Unavailable

5060a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5070

Acoustic Insulation

705800764

$5.29

5080

Acoustic Insulation

705800512

$5.29

5090

Acoustic Insulation

705800513

$5.29

5100

Acoustic Insulation

705800684

$5.29

5120

Acoustic Insulation

705800644

$24.49

5125

Acoustic Insulation

705800645

$24.49

5130

Acoustic Insulation

705800765

$5.29

5140

Acoustic Insulation

705800662

$5.29

5150a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5160a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5190

Acoustic Insulation

705800682

$5.29

5200

Acoustic Insulation

705800683

$5.29

5210a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5215a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5230

Acoustic Insulation

705800583

$2.99

5240

LH Insulating Foam

705800845

$9.39

5250

RH Insulating Foam

705800846

$9.39

5260a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5265a

Neoprene Seal (1PAC=3M)

219704364

$27.49

5280a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5290a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5292a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5295a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5297a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5300a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5310a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5350a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

5400

Acoustic Insulation

705800507

$5.29

5405

Acoustic Insulation

705800505

$5.29

5410

Acoustic Insulation

705800507

$5.29

5415

Acoustic Insulation

705800505

$5.29

5500

Acoustic Insulation

705800671

$5.59

5510

Acoustic Insulation

705800671

$5.59

5550

Outer Seal

705800054

$35.99
