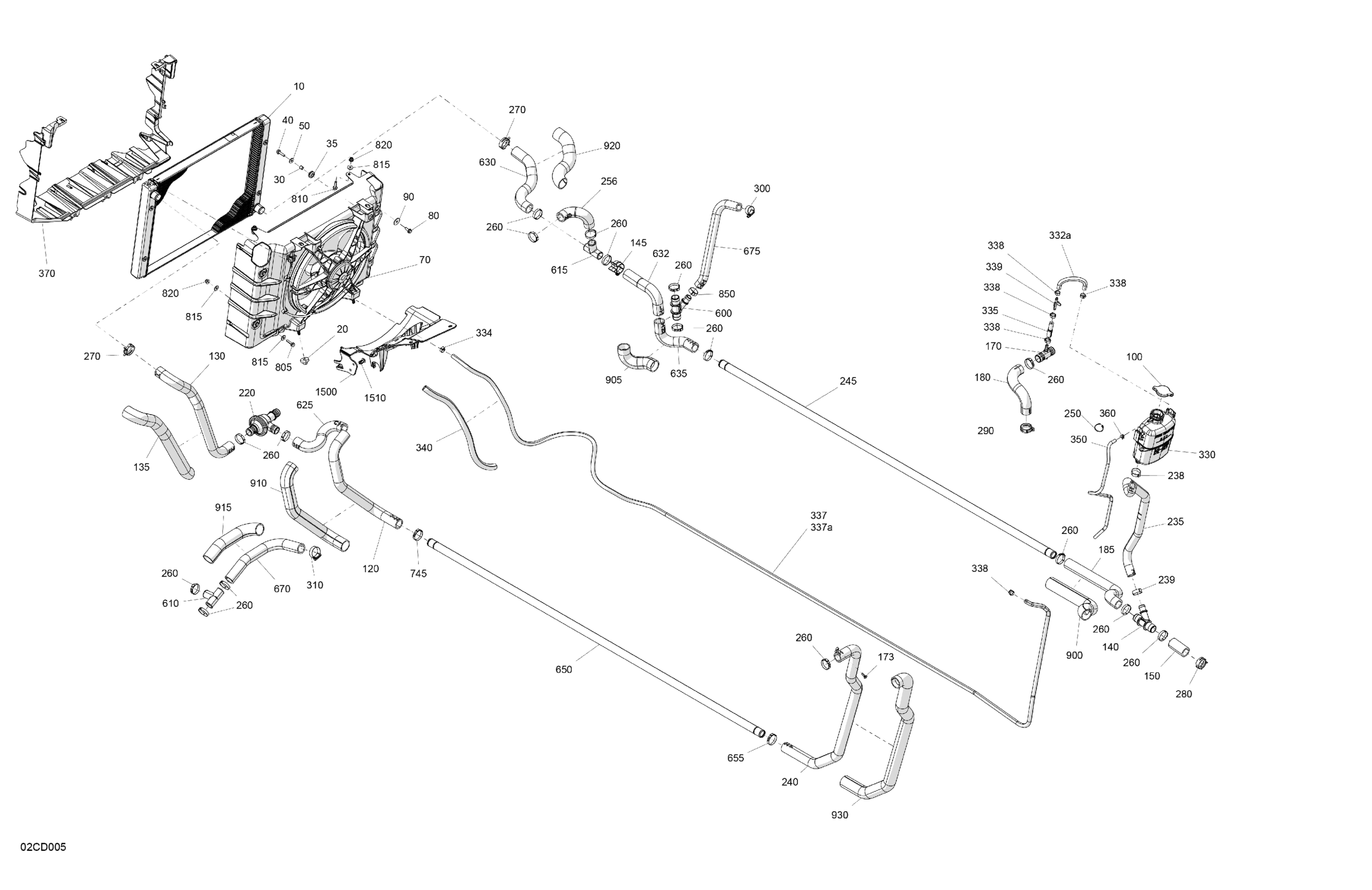

Can-Am International - Defender MAX HD10 - LTD CAB - 6MRK - Macchiato Satin - 67" Width, 2024 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200829

$259.67

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.07

35

Overmolded Grommet

293720130

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Cooling Fan Ass'y

709201287

$232.06

80

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

90

Washer M6

250200029

$1.78

100

Radiator Pressure Cap

709200207

$18.82

120

Hose

709200973

$13.39

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y Fitting

509001200

$5.10

145

Retainer

275500590

$7.18

150

Hose

709200299

$6.69

170

T-Fitting

509000510

$11.18

173

Torx Screw K50 X 16

250000720

$1.39

180

Hose Engine Out

709200915

$38.03

185

Hose

709200971

$38.03

220

Thermostat Housing

709200986

$89.52

235

Hose Coolant Tank Out

709201103

$34.30

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Hose

709200969

$33.55

245

Heater Tubing

709200658

$13.58

250

Tie Wrap

293750108

$7.25

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$5.84

270

Norma Spring Clamp

293650166

$4.15

280

Norma Spring Clamp

293650166

$4.15

290

Norma Spring Clamp

293650166

$4.15

300

Aba Gear Clamp, 26-38 MM

509000443

$5.64

310

Aba Gear Clamp, 26-38 MM

509000443

$5.64

330

Coolant Tank

709201323

$72.36

332a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

334

Oetiker Clamp

293650042

$1.40

335

Bleeding Hose

709200606

$18.63

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

337a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.81

370

Radiator Deflector Ass'y

715008988

$171.61

600

Y Fitting

509001200

$5.10

610

T-Fitting

509001313

$14.90

615

T-Fitting

509001313

$14.90

625

Hose Thermostat In

709201031

$14.91

630

Formed Radiator Hose OUT

709201444

$10.51

632

Formed Radiator Hose OUT

709201437

$10.51

635

Hose

709200972

$13.39

650

Heater Tubing

709200658

$13.58

655

Gear Clamp

509000162

$5.84

670

Hose

709200976

$13.39

675

Hose

709200975

$13.39

745

Gear Clamp

509000162

$5.84

805

Hex. Flange Screw M6 X 25

207662544

$0.53

810

Hex. Flange Screw M6 X 25

207662544

$0.53

815

Flat Washer 6 mm

234062410

$0.64

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

850

Oetiker Gear Clamp

293650165

$4.32

900

Tubing 35 MM 1000MM Long

219704428

$8.57

905

Tubing 35 MM 1000MM Long

219704428

$8.57

910

Tubing 35 MM 1000MM Long

219704428

$8.57

915

Tubing 35 MM 1000MM Long

219704428

$8.57

920

Tubing 35 MM 1000MM Long

219704428

$8.57

930

Tubing 35 MM 1000MM Long

219704428

$8.57

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.21
