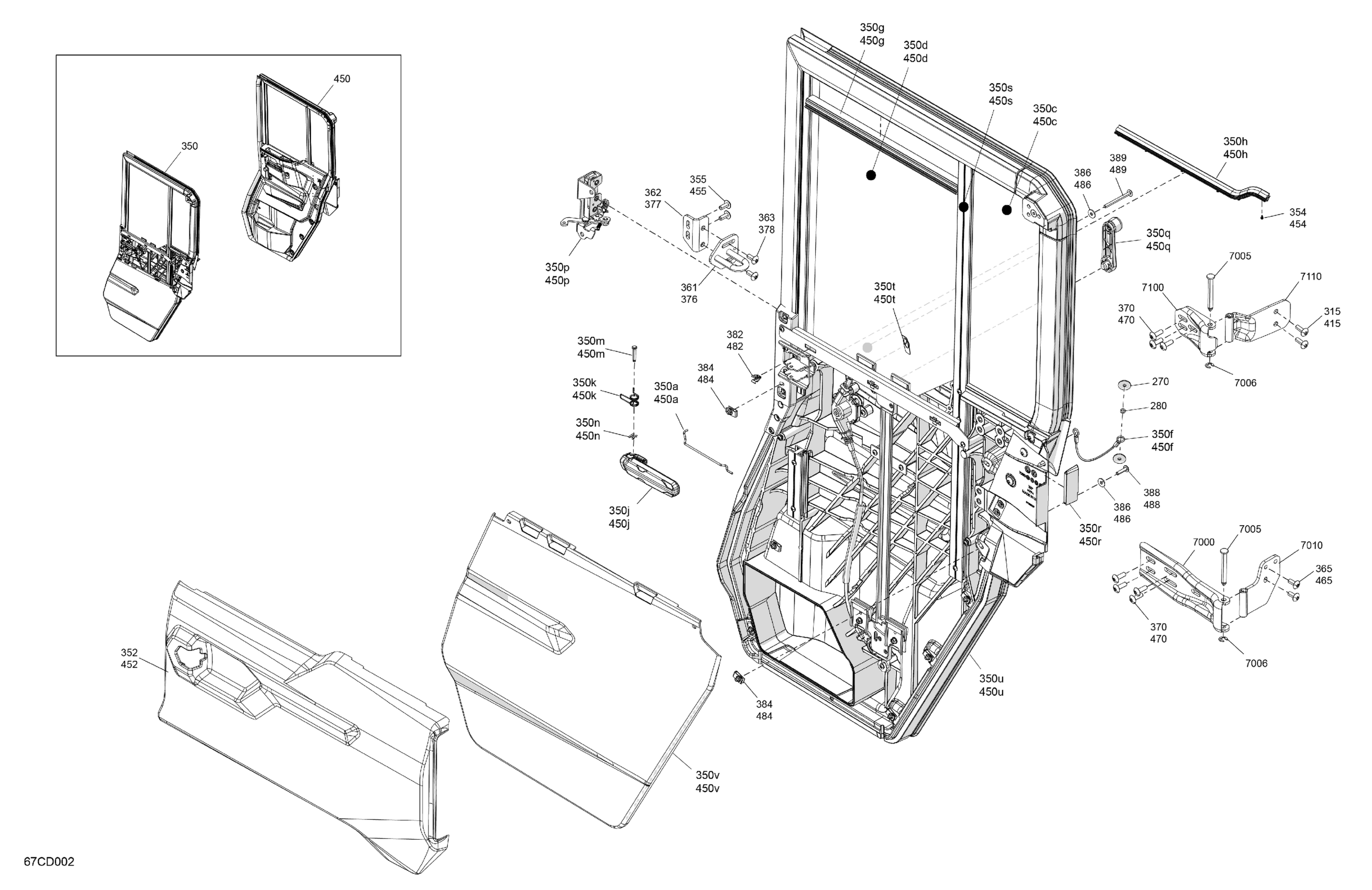

Can-Am Defender MAX HD10 - LTD CAB - 6MRC - Asphalt Grey - 67" Width CALI, 2024 Enclosure Cab - Rear Doors Diagram

#

Description
Price

270

Washer M6

250200029

$1.78

280

Bushing

708300737

$4.43

315

Torx Truss M8 X 25

250000874

$2.00

350

LH Rear Rigid Door Ass'y | Includes 350 to 350v

705801237

$1,999.99

350a

Guide Pin

705801454

$40.27

350c

Rear Door Window

705801373

$199.99

350d

Sliding Cab Window

705801378

$459.99

350f

Retaining Cable

705800903

$8.66

350g

Gasket

705801315

$99.22

350h

Gasket

705800964

$31.31

350j

Door Handle

705017152

$12.57

350k

Handle Spring

705013062

$13.28

350m

Handle Axle

705207440

$10.55

350n

External Retaining Ring

705601875

$3.94

350p

LH Rear Door Latch

705801466

$179.07

350q

Window Crank

705800871

$104.45

350r

Trim

705800992

$90.27

350s

Rear Window Guide Extrusion

705800723

$198.48

350t

LH Door Pictogram Label

704909996

Unavailable

350u

Not Available As Spare Parts

XXX

Unavailable

350v

LH Lower Door Panel

705800718

$279.99

352

Asphalt Grey, LH Rear Door Panel

705801423

$239.99

354

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.88

355

Torx Truss M/S M8 X 20

250000953

$2.00

361

Rear Door Stricker

705801024

$48.48

362

LH Striker Support

705800851

$15.64

363

Torx Truss M/S M8 X 20

250000953

$2.00

365

Torx Truss M/S M8 X 20

250000953

$2.00

370

Torx Truss M8 X 25

250000874

$2.00

376

Rear Door Stricker

705801024

$48.48

377

RH Support Striker

705800852

$15.64

378

Torx Truss M/S M8 X 20

250000953

$2.00

382

Clip

517306478

$1.03

384

Panel Nut M6 X 1.0

250100198

$1.99

386

Stainless Steel Flat Washer

234062670

$2.00

388

Torx Truss Screw M6 X 25

250000807

$2.00

389

Torx Screw M6 X 70

250000954

$1.79

415

Torx Truss M8 X 25

250000874

$2.00

450

RH Rear Rigid Door Ass'y | Includes 450 to 450v

705801239

$1,999.99

450a

Guide Pin

705801455

$40.27

450c

Rear Door Window

705801376

$199.99

450d

Sliding Cab Window

705801379

$459.99

450f

Retaining Cable

705800903

$8.66

450g

Gasket

705801315

$99.22

450h

Gasket

705800964

$31.31

450j

Door Handle

705017152

$12.57

450k

Handle Spring

705013062

$13.28

450m

Handle Axle

705207440

$10.55

450n

External Retaining Ring

705601875

$3.94

450p

RH Rear Door Latch

705801467

$179.07

450q

Window Crank

705800871

$104.45

450r

Trim

705800993

$90.27

450s

Rear Window Guide Extrusion

705800723

$198.48

450t

RH Door Pictogram Label

704909998

Unavailable

450u

Not Available As Spare Parts

XXX

Unavailable

450v

RH Lower Door Panel

705800719

$227.99

452

Asphalt Grey, RH Rear Door Panel

705801424

$227.99

454

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.88

455

Torx Truss M/S M8 X 20

250000953

$2.00

465

Torx Truss M/S M8 X 20

250000953

$2.00

470

Torx Truss M8 X 25

250000874

$2.00

482

Clip

517306478

$1.03

484

Panel Nut M6 X 1.0

250100198

$1.99

486

Stainless Steel Flat Washer

234062670

$2.00

488

Torx Truss Screw M6 X 25

250000807

$2.00

489

Torx Screw M6 X 70

250000954

$1.79

7000

Door Hinge

705800751

$37.99

7005

Hinge Pin

705800781

$0.54

7006

Retaining Ring

293370125

$1.91

7010

Lower Hinge

705801025

$39.52

7100

Upper Door Hinge

705800752

$39.52

7110

Upper Door Hinge

705800755

$28.33
