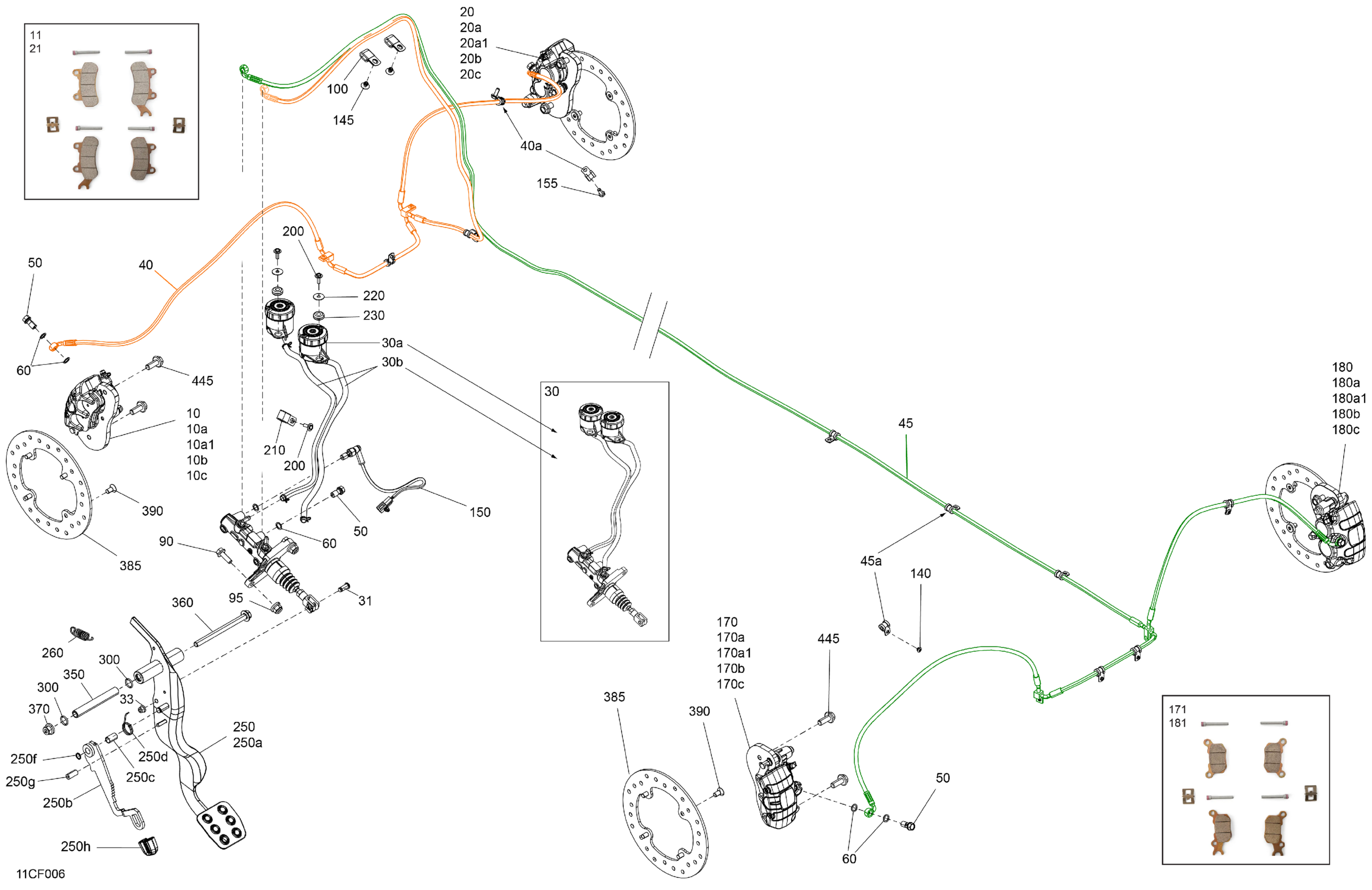

Can-Am Defender - HD7 - XT - 7ETC - Dusty Navy Satin - 62" Width - CALI, 2026 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$360.49

10a

LH Brake Pads

715900379

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10b

Bleeding Screw

705601017

$6.35

10c

Cap Spring Kit

715900385

$17.59

11

Front Brake Pad Set

703501198

$116.49

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$370.99

20a

RH Brake Pads

715900380

$79.49

20a1

Pin Kit | Packages STD & PRO

715900384

$12.12

20b

Bleeding Screw

705601017

$6.35

20c

Cap Spring Kit

715900385

$17.59

21

Front Brake Pad Set

703501198

$116.49

30

Master Cylinder Ass'y | Includes 30 to 30c

705602307

$289.99

30a

Oil Tank

705601020

$39.99

30b

Housing Oil Hose

705601866

$15.87

31

Socket Head Screw M8 X 16

250000669

$3.17

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Front Caliper Hose | Includes 40 to 40a

705601812

$148.49

40a

Clamp

293650256

$5.49

45

Rear Caliper Hose | Includes 45 to 45a

705601813

$163.99

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682544

$1.35

95

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Open Clamp

515175507

$1.89

140

Pop Rivet 3/16 X ,425

293150293

$0.35

145

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

150

Brake Switch

705601250

$59.49

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

170

LH Rear Brake Caliper | Includes 170 to 170c

705602182

$259.49

170a

LH Brake Pads

715900381

$79.49

170a1

Pin Kit | Packages STD & PRO

715900384

$12.12

170b

Bleeding Screw

705601017

$6.35

170c

Cap Spring Kit

715900385

$17.59

171

Rear Brake Pad Set

703501200

$116.49

180

RH Rear Brake Caliper | Includes 180 to 180c

705602183

$280.99

180a

RH Brake Pads

715900382

$79.49

180a1

Pin Kit | Packages STD & PRO

715900384

$12.12

180b

Bleeding Screw

705601017

$6.35

180c

Cap Spring Kit

715900385

$17.59

181

Rear Brake Pad Set

703501200

$116.49

200

Screw PT Type K-50 X 16

250000959

$2.11

210

Open Clamp

515175507

$1.89

220

Flat Washer

250200040

$1.90

230

Grommet

414036300

$2.79

250

Brake Pedal Ass'y | Includes 250 to 250h

705602268

$62.99

250a

Brake Pedal | Includes 250 to 250a

705601777

$57.99

250b

Lever

705601725

$13.49

250c

Bushing

705601722

$8.85

250d

Return Spring

705602266

$9.53

250f

Circlip

705601770

$2.68

250g

Hose

219704549

$50.99

250h

Adjustment Handle

708002655

$16.99

260

Brake Pedal Spring

705600792

$9.10

300

O-Ring

293300144

$3.82

350

Inside Sleeve

705601373

$12.11

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

445

Hex. Flange Screw M10 X 25

207502546

$2.11
