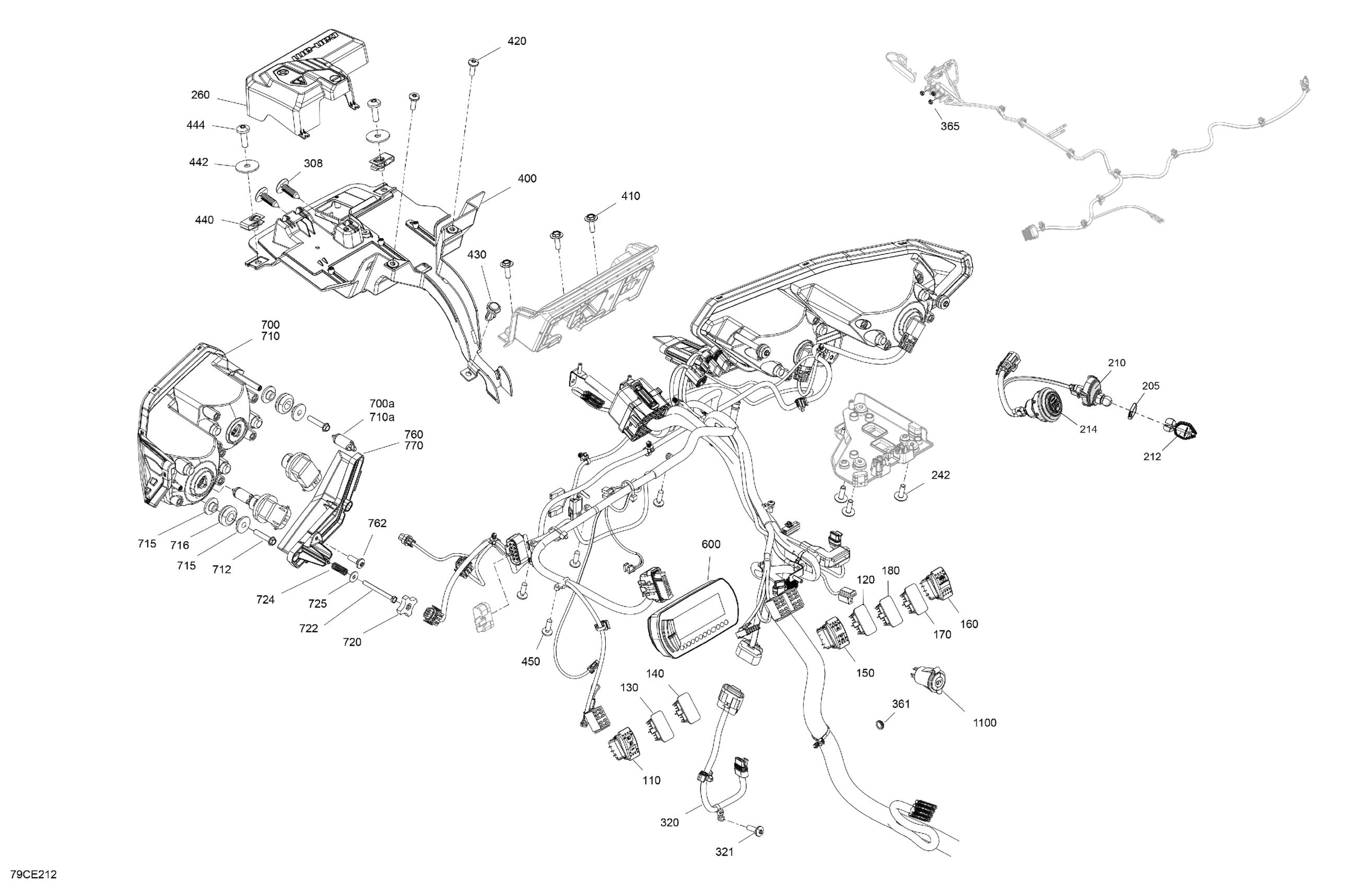

Can-Am International - Defender - HD9 - XU - 9WSC - Stealth Black - 62" Width - 2025 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$47.49

120

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

150

Switch 2X4

710005489

$31.99

160

Differential Lock Switch

710005470

$46.49

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

205

Specialized Nut

278004274

$3.28

210

Terminal DESS One Wire

515179305

$74.99

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

214

Start-Stop Button | Not Shown

710005213

$60.49

242

Screw PT Type K-50 X 16

250000959

$2.11

260

Junction Block Cover

710006707

$6.35

308

Black, Dart

293730006

$0.99

320

Throttle Pedal Harness

710006837

$239.99

321

Torx Screw K50 X 16

250000720

$1.69

361

Boot

710002743

$3.29

365

Elastic Stop Nut M6, Brass

232561200

$4.23

400

Wiring Harness Support

710006649

$24.49

410

Screw PT Type K-50 X 16

250000959

$2.11

420

Torx Screw K50 X 16

250000720

$1.69

430

Tuflok Plastic Rivet

293150230

$1.47

440

Panel Nut M6 X 1.0

250100198

$2.11

442

Washer M6

250200029

$2.50

444

Torx Screw M6 X 20

250000712

$2.11

450

Screw PT Type K-50 X 16

250000959

$2.11

600

Multifunction Compact Gauge

710008296

$409.99

700

LH Beam | Includes 700 to 700a

710008316

$199.99

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

710

RH Beam | Includes 710 to 710a

710008317

$199.99

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

715

Shoulder Bushing

710004749

$2.69

716

Overmolded Grommet

293720130

$4.69

720

Handle

572106600

$10.33

722

Hex. Screw K40 X 45

250000718

$2.11

724

Spring

517168600

$7.39

725

Flat Washer 4 mm, Stainless

234042600

$1.15

760

Deep Black, LH Front Headlight Trim

710008973

$20.99

762

Screw PT Type K-50 X 16

250000959

$2.11

770

Deep Black, RH Front Headlight Trim

710008974

$20.99

1100

12V Power Outlet

710005374

$33.99
