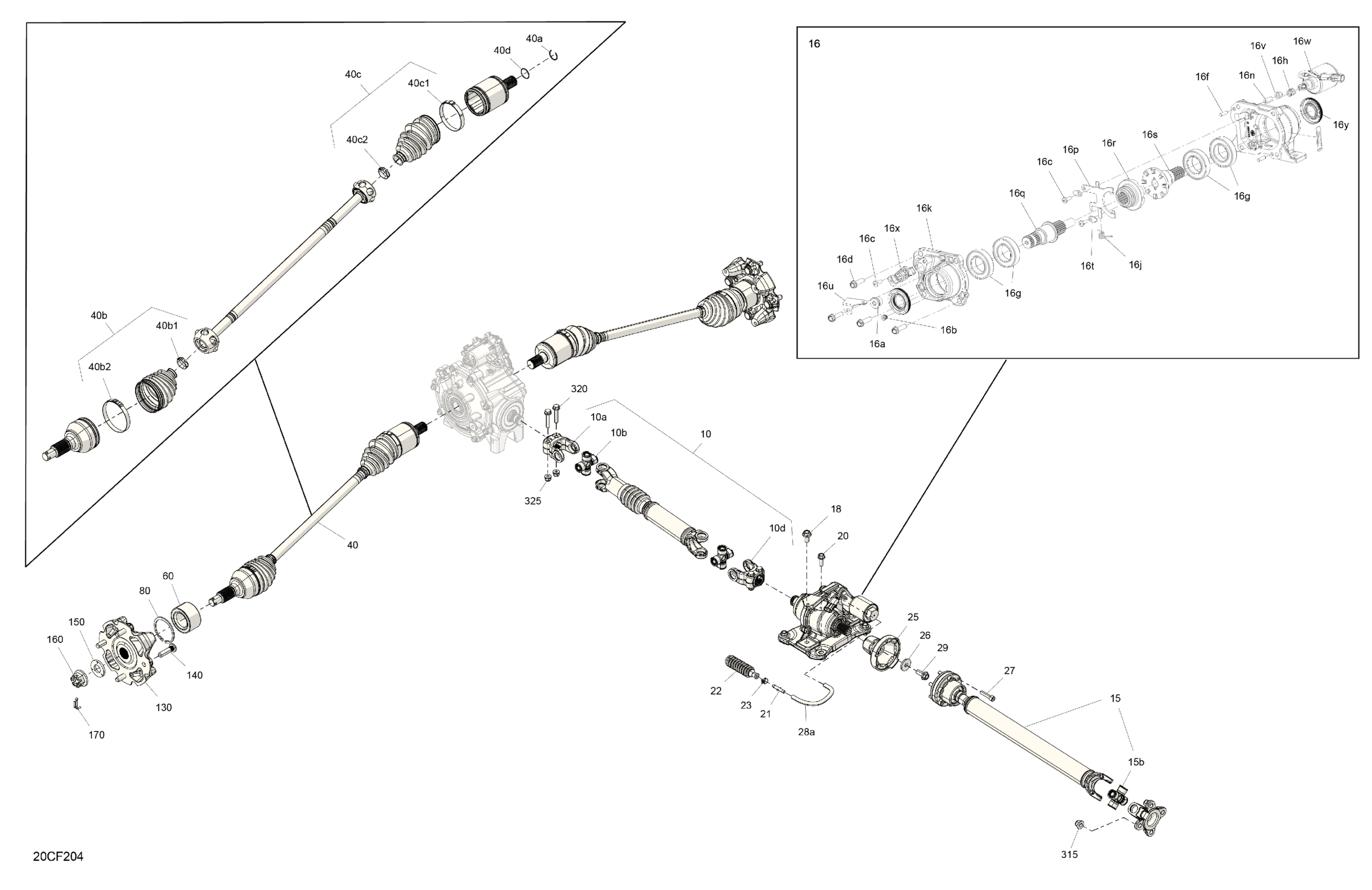

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Drive - Front - Common Parts Diagram

#

Description
Price

10

Front Drive Axle Ass'y | Includes 10 to 10d

705403452

$239.99

10a

Connecting Yoke 20Th

715900939

$24.99

10b

Universal Joint Ass'y

715900911

$46.49

10d

Connecting Yoke 18Th

715900938

$24.99

15

Rear Drive Axle Ass'y | Includes 15 to 15b

705403454

$299.99

15b

Universal Joint Ass'y

715900911

$46.49

16

Clutch Ass'y | Includes 16 to 16y

705403345

$419.99

16a

Fill Level Plug

705501889

$20.49

16b

Fill Level Plug M10

715900563

$27.49

16c

Torx Screw M6 X 16

705402845

$11.05

16d

Bolt

705501886

$7.69

16f

Housing

715900674

$144.99

16g

Ball Bearing

705402847

$49.99

16h

Compression Spring

715900756

$14.99

16j

Return Torsion Spring

715900884

Unavailable

16k

Cover

715900885

Unavailable

16n

Vent Tube 1/4

715900887

$11.12

16p

Shift Fork Pivot

715900888

Unavailable

16q

Output Shaft

715900889

Unavailable

16r

Disconnect Dog

715900960

$80.99

16s

Input Shaft

715901004

$119.99

16t

Retainer Fork | Not Shown

715900766

$14.49

16u

Solenoid Clip Bracket

715901005

$14.49

16v

Vent Cap 5/16

715900533

$7.69

16w

Solenoid

715900894

$244.99

16x

Position Sensor

715900895

$119.99

16y

Triple Lip Seal 27.5X55.0X7.5

715900896

$47.49

18

Hex. Flange Screw M10 X 20

207502046

$2.11

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

21

Fitting Pipe Straight

293710221

$1.99

22

Rubber Bellow | 4X4

705400552

$6.14

23

Spring Clamp

414415200

$0.88

25

Flange

705403460

$35.99

26

Washer

503183300

$5.82

27

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

28a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

29

Hex. Flange Screw M10 X 25

207502546

$2.11

40

Front CV Joint Ass'y | Includes 40 to 40d

705403358

$244.99

40a

Circlip Joint

715901033

$5.89

40b

CV Joint Boot Kit | Includes 40b to 40b2

715901034

$42.49

40b1

Oetiker Clamp, Small

715900261

$5.29

40b2

Oetiker Clamp, Large

715900260

$10.33

40c

CV Joint Boot Kit | Includes 40c to 40c2

715901035

$42.49

40c1

Oetiker Clamp, Small

715900261

$5.29

40c2

Oetiker Clamp, Large

715900262

$10.33

40d

O-ring

715900580

$2.51

60

Ball Bearing

293350151

$71.49

80

Internal Retaining Ring

293370169

$1.37

130

Machined Wheel Hub

705503479

$119.99

140

Wheel Stud M12X1.5

250300625

$3.91

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

315

Flange Elastic Nut M10

233201466

$3.17

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
