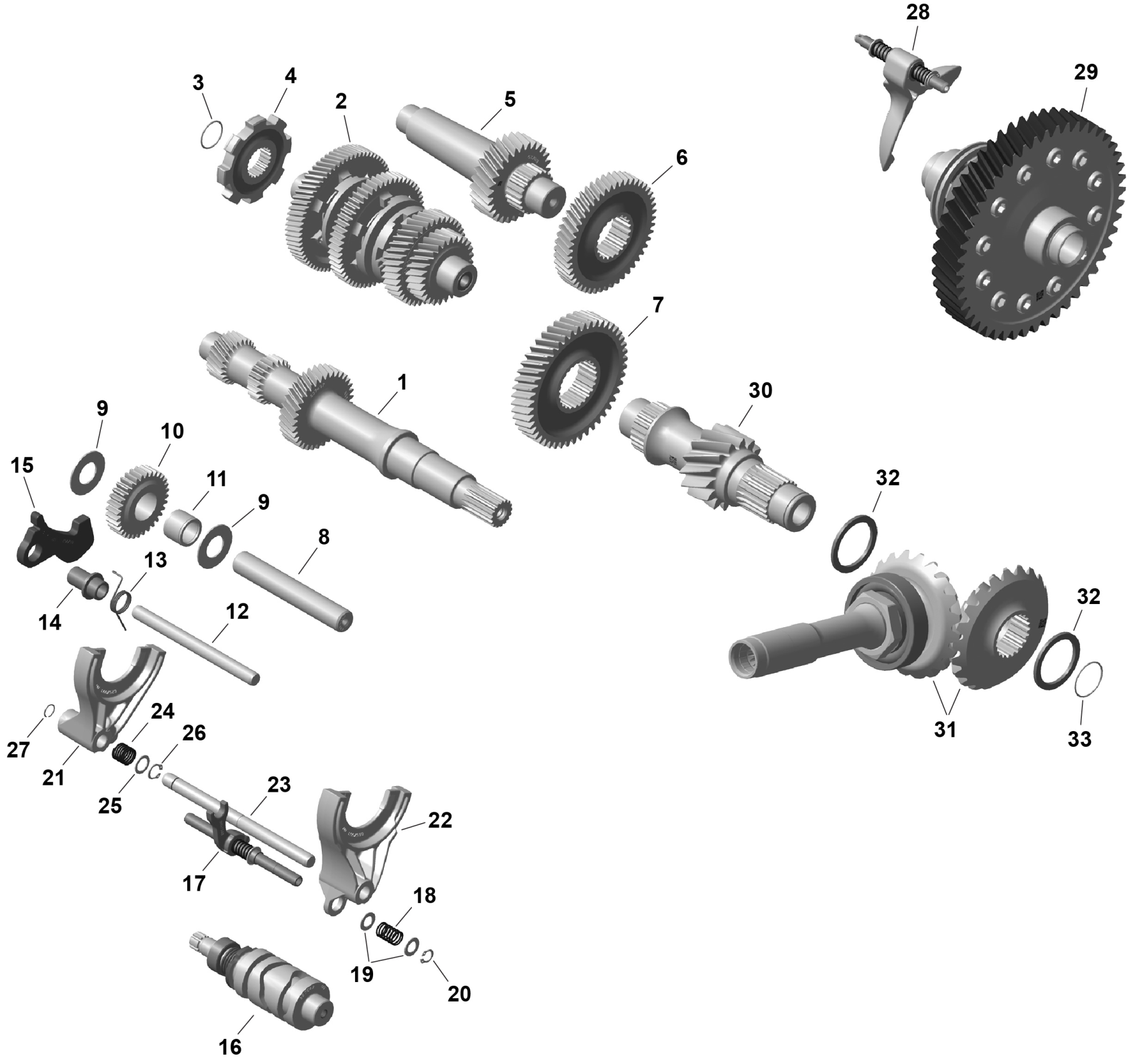

Can-Am Defender - HD11 - XMR - 8YTA - Loft Green Satin - 65" Width, 2026 ROTAX - GearBox 2 Diagram

#

Description
Price

1

Countershaft

420637499

$359.97

2

Main Shaft | Includes no. 2-4

420637766

$863.82

3

O-Ring

420931391

$10.14

4

Park Lock Gear

420634933

$63.05

5

Intermedeiate Shaft 28T Int 2

420637684

$73.82

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Intermediate Gear Shaft

420637554

$48.43

9

Thrust Washer 20.2/40/1.5

420427120

Unavailable

10

Intermediate Gear 32T

420435874

$44.58

11

Needle Cage Kit 20X26X19.8

420632902

Unavailable

12

Dowel Pin 12X140

420229240

Unavailable

13

Cylindrical Helical Coiled Spring

420638187

$4.60

14

Collar Sleeve

420647133

$36.89

15

Parking Lock Lever

420657762

$73.82

16

Shifting Drum Ass'y

420657543

$290.74

17

Shift Block Ass'y

420657704

$27.66

18

Spring

420638151

$4.60

19

Thrust Washer

420827590

$3.86

20

Snap Ring

420245330

$1.43

21

Gearshift Fork Ass'y

420257004

$41.51

22

Gearshift Fork Ass'y

420657564

$41.51

23

Fork Spindle

420657439

$36.89

24

Spring

420638153

$2.99

25

Retaining Ring

420945470

$5.52

26

Retaining Ring

420945470

$5.52

27

Retaining Ring

420645035

$5.52

28

Shifting Fork Ass'y

420657478

$27.66

29

Differential Ass'y

420686406

$701.51

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

O-Ring | Included In Gasket KIt

420950416

$1.83
