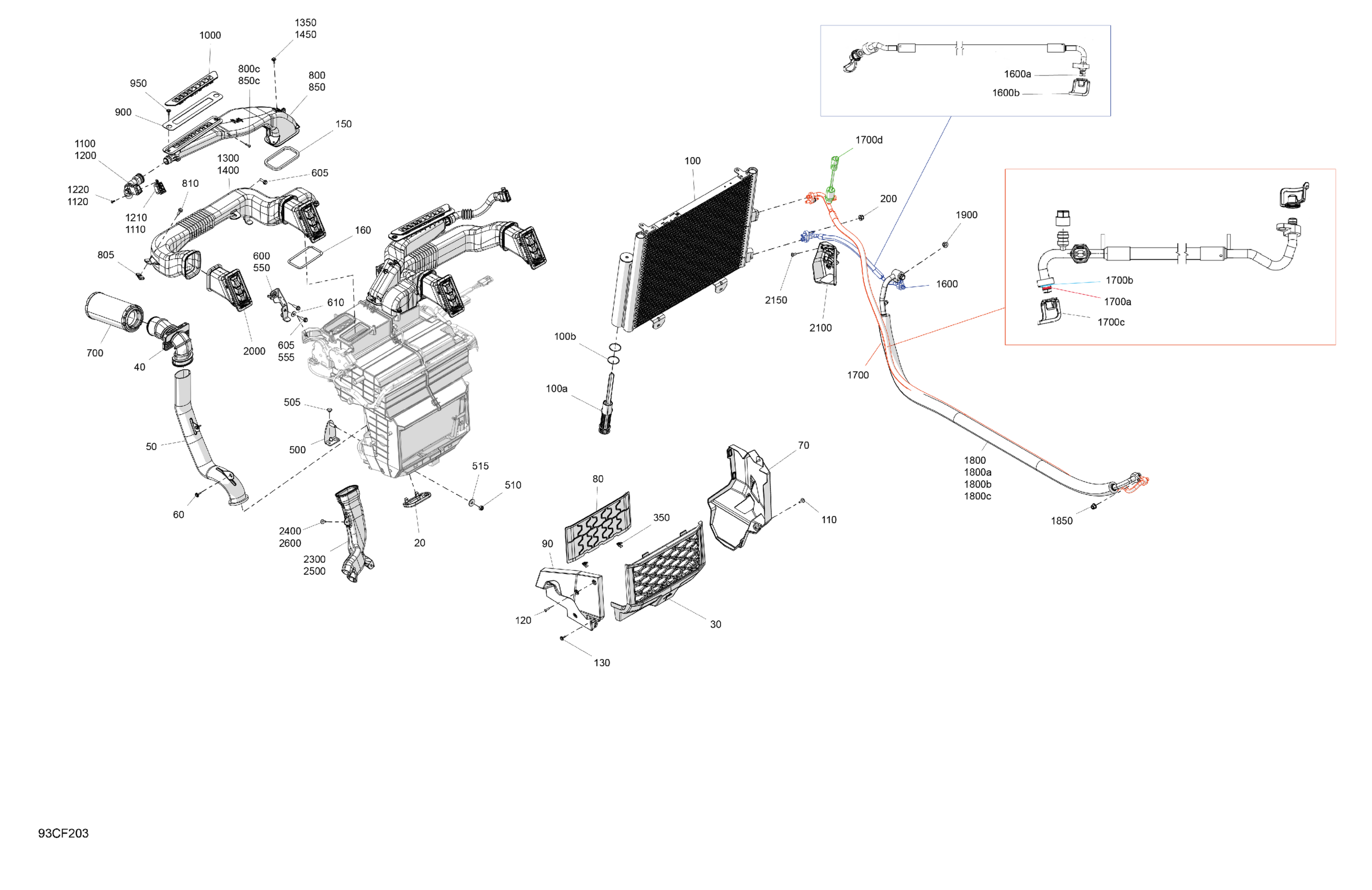

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Miscellaneous - Options Diagram

#

Description
Price

20

Molded Collector Cap

705801418

$4.19

30

Ventilation Grille

705801049

$13.49

40

Ventilation Duct Intake

705801171

$12.99

50

Ventilation Duct

705801134

$27.99

60

Screw M4 X 16

250000725

$3.49

70

Rear Molded Ext Trim

705801488

$12.49

80

Air Filter

705801050

$46.99

90

LH Lower Panel

705801503

$12.49

100

Condenser | Includes 100 to 100b

705801165

$549.99

100a

Dessicant Cartridge

715900672

$47.99

100b

O-RIng

715900915

$3.29

110

Screw M4 X 16

250000725

$3.49

120

Torx-Truss Pt K40 X 16

250000759

$2.11

130

Screw M4 X 16

250000725

$3.49

150

Gasket

705801663

$8.89

160

Gasket

705801664

$8.89

200

Hex. Elastic Flange Nut M8

233281416

$1.48

350

Clip

517306478

$1.09

500

Lower Console Support

705801245

$20.99

505

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

510

Hex. Elastic Stop Nut M8

232581414

$0.56

515

Flat Washer 8 mm

234082410

$1.47

550

RH Upper Console Support

705801810

$16.49

555

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

600

LH Upper Console Support

705801811

$14.49

605

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

610

Stainless Steel Flat Washer

234062670

$2.11

700

Air Filter

705800395

$35.99

800

LH Front Ventilation Grille Ass'y | Includes 800 to 800c

705801074

$56.99

800c

Torx-Truss Pt K40 X 16

250000759

$2.11

805

Panel Nut M6 X 1.0

250100208

$1.46

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

850

RH Front Ventilation Grille Ass'y | Includes 850 to 850c

705801073

$56.99

850c

Torx-Truss Pt K40 X 16

250000759

$2.11

900

Gasket Cut

705801508

$8.89

950

Screw M4 X 16

250000725

$3.49

1000

Ventilation Grille

705801069

$13.49

1100

LH Front Soft Ventilation Duct

705801621

$12.99

1110

RH Upper Ventilation Grille

705801541

Unavailable

1120

Torx-Truss Screw K40 X 10

250001034

$0.98

1200

RH Front Soft Ventilation Duct

705801622

$12.99

1210

LH Upper Ventilation Grille

705801540

Unavailable

1220

Torx-Truss Screw K40 X 10

250001034

$0.98

1300

LH Front Formed Ventilation Duct

705801056

$77.99

1350

Screw M4 X 16

250000725

$3.49

1400

RH Front Formed Ventilation Duct

705801055

$77.99

1450

Screw M4 X 16

250000725

$3.49

1600

Hose | Includes 1600 to 1600b

705801003

$134.99

1600a

O'Ring | Not Shown

715900707

$3.28

1600b

Sealing Washer #6

715900665

$11.06

1700

Compressor Hose | Includes 1700 to 1700d

705801085

$154.99

1700a

O'Ring | Not Shown

715900707

$3.28

1700b

Sealing Washer #8

715900666

$11.06

1700c

Plastic Cap

715901057

$8.29

1700d

Pressure Switch

715901058

Unavailable

1800

Compressor Hose | Includes 1800 to 1800c

705801005

$154.99

1800a

O'Ring

715900708

$4.44

1800b

Sealing Washer #12

715900667

$11.06

1800c

Plastic Cap

715901056

$8.29

1850

Hex. Elastic Flange Nut M8

233281416

$1.48

1900

Hex. Elastic Flange Nut M8

233281416

$1.48

2000

Ventilation Grille Ass'y

705801059

Unavailable

2100

Hose Support

705801166

$6.49

2150

Torx Screw K50 X 16

250000720

$1.69

2300

LH Under Formed Ventilation Duct

705801058

$18.49

2400

Screw M4 X 16

250000725

$3.49

2500

RH Under Formed Ventilation Duct

705801057

$20.99

2600

Screw M4 X 16

250000725

$3.49
