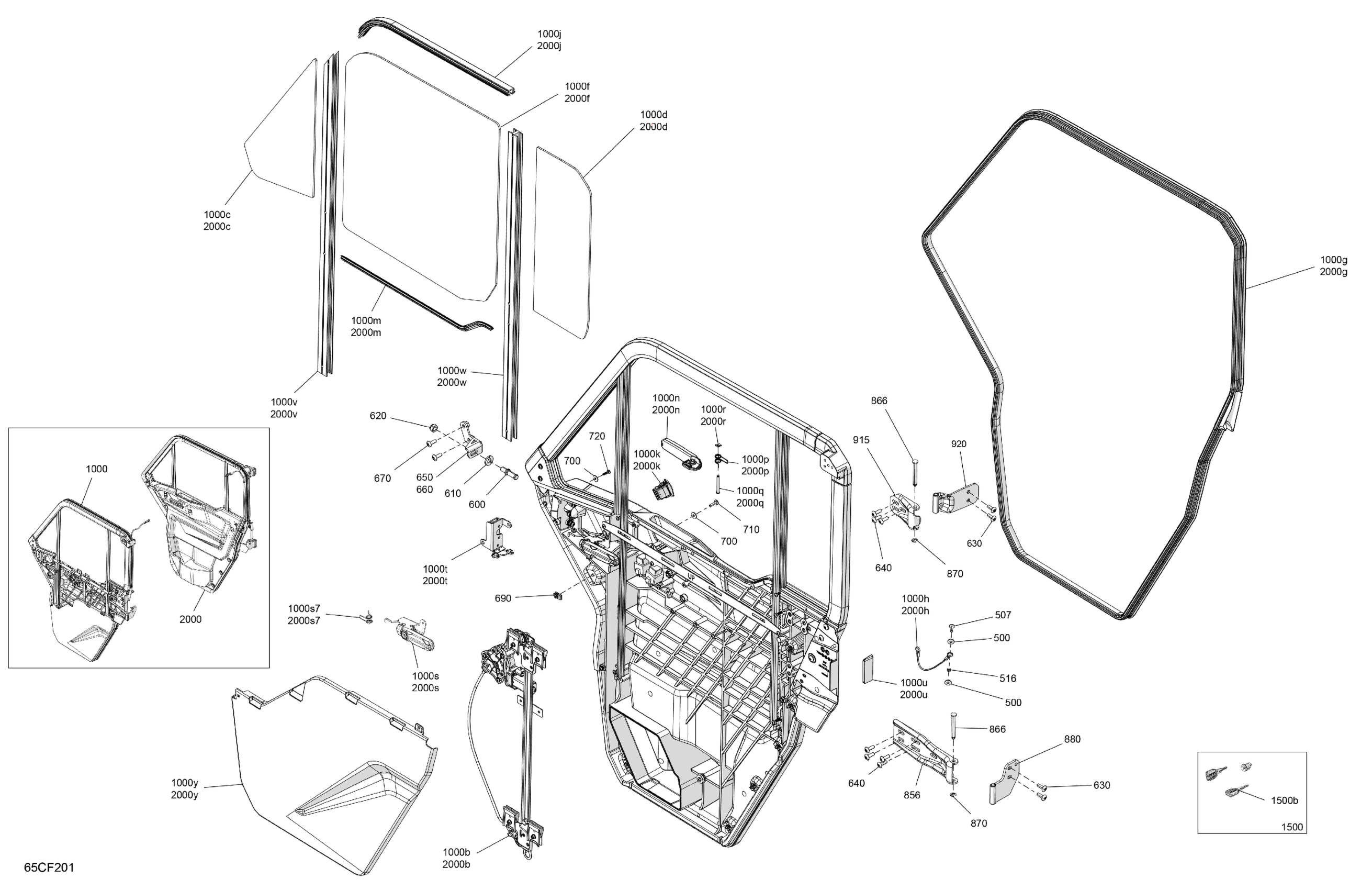

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Enclosure Cab - Doors Diagram

#

Description
Price

500

Washer M6

250200029

$1.78

507

Torx Screw M6 X 20

250000722

$1.54

516

Bushing

708300737

$4.43

600

Rod Latch

705800850

$26.84

610

Conical Spring Washer M12

250200005

$3.04

620

Elastic Stop Nut M12

232521416

$1.61

630

Torx Truss M8 X 25

250000874

$2.00

640

Torx Truss M8 X 25

250000874

$2.00

650

LH Front Striker Support

705801086

$40.27

660

RH Front Striker Support

705801097

$40.27

670

Torx Truss M8 X 25

250000874

$2.00

690

Panel Nut M6 X 1.0

250100198

$1.99

700

Stainless Steel Flat Washer

234062670

$2.00

710

Torx Truss Screw M6 X 25

250000807

$2.00

720

Torx Screw Truss Head K50X20 T20

250000760

$2.00

856

Door Hinge

705800751

$37.99

866

Hinge Pin

705800781

$0.54

870

Retaining Ring

293370125

$1.91

880

Lower Hinge

705801025

$39.52

915

Upper Door Hinge

705800752

$39.52

920

Upper Door Hinge

705800755

$28.33

1000

LH Front Rigid Door Ass'y | Includes 1000 to 1000y

705801606

$1,999.99

1000a

LH Door Wiring Harness

705800881

$211.91

1000b

LH Front Window Actuator

705801143

$744.00

1000c

Tinted, LH Front Door Window

705801323

$189.99

1000d

Tinted, LH Rear Door Window

705801324

$189.99

1000f

Tinted, LH Front Sliding Cab Window

705801325

$199.99

1000g

LH Gasket

705801311

$63.99

1000h

Retaining Cable

705800896

$8.25

1000j

Gasket

705801312

$99.22

1000k

Switch

710008375

$81.31

1000m

Gasket

705800867

$99.22

1000n

Door Handle

705017152

$12.57

1000p

Handle Spring

705013062

$13.28

1000q

Handle Axle

705207440

$10.55

1000r

External Retaining Ring

705601875

$3.94

1000s

LH Front Door Handle Ass'y | Includes 300t to 300t7

705018945

$175.74

1000s7

Handle Spring

705013062

$13.28

1000t

LH Latch

705800872

$179.07

1000u

Trim

705800992

$90.27

1000v

Front Window Guide Extrusion

705800722

$198.48

1000w

Rear Window Guide Extrusion

705800723

$198.48

1000y

LH Lower Door Panel

705800716

$239.99

1500

Lock Barrel Ass'y | Includes 7550 to 7550b

705801380

$98.48

1500b

Key

710010366

Unavailable

2000

RH Front Rigid Door Ass'y | Includes 2000 to 2000y

705801607

$1,999.99

2000a

RH Door Wiring Harness

705800882

$226.84

2000b

RH Front Window Actuator

705801144

$744.00

2000c

Tinted, RH Front Door Window

705801326

$189.99

2000d

Tinted, RH Rear Door Window

705801327

$189.99

2000f

Tinted, RH Front Sliding Cab Window

705801328

$199.99

2000g

RH Gasket

705801313

$63.99

2000h

Retaining Cable

705800896

$8.25

2000j

Gasket

705801312

$99.22

2000k

Switch

710008375

$81.31

2000m

Gasket

705800867

$99.22

2000n

Door Handle

705017152

$12.57

2000p

Handle Spring

705013062

$13.28

2000q

Handle Axle

705207440

$10.55

2000r

External Retaining Ring

705601875

$3.94

2000s

RH Front Door Handle Ass'y | Includes 400t to 400t7

705018951

$179.07

2000s7

Handle Spring

705013062

$13.28

2000t

RH Latch

705800873

$179.07

2000u

Trim

705800992

$90.27

2000v

Front Window Guide Extrusion

705800722

$198.48

2000w

Rear Window Guide Extrusion

705800723

$198.48

2000y

RH Lower Door Panel

705800717

$239.99
