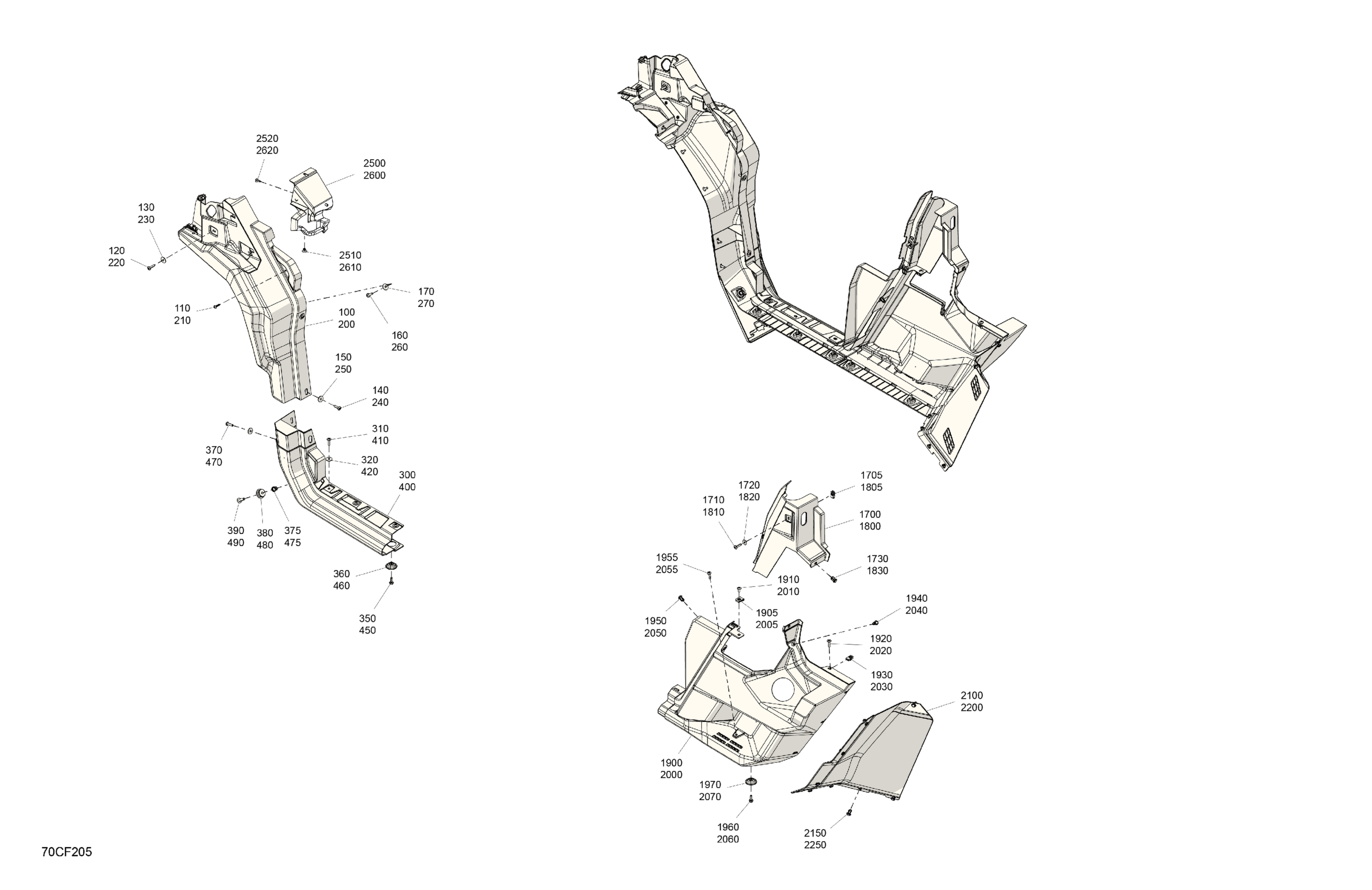

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Body - System Diagram

#

Description
Price

100

LH Front Mud Guard

705017731

$64.58

110

Torx Screw Truss Head K50X20 T20

250000760

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

130

Flat Washer M6.6 X 22

250200162

$1.91

140

Torx Truss Screw M6 X 25

250000807

$1.74

150

Flat Washer M6.6 X 22

250200162

$1.91

160

Torx Truss Screw M6 X 25

250000807

$1.74

170

Flat Washer M6.6 X 22

250200162

$1.91

200

RH Front Mud Guard

705017732

$64.58

210

Torx Screw Truss Head K50X20 T20

250000760

$1.74

220

Torx Truss Screw M6 X 25

250000807

$1.74

230

Flat Washer M6.6 X 22

250200162

$1.91

240

Torx Truss Screw M6 X 25

250000807

$1.74

250

Flat Washer M6.6 X 22

250200162

$1.91

260

Torx Truss Screw M6 X 25

250000807

$1.74

270

Flat Washer M6.6 X 22

250200162

$1.91

300

LH Front Side Panel

705018368

$64.58

310

Torx Truss Screw M6 X 25

250000807

$1.74

320

Flat Washer M6.6 X 22

250200162

$1.91

320

Flat Washer M6.6 X 22

250200162

$1.91

350

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

360

Cup

705018367

$7.37

370

Torx Truss Screw M6 X 25

250000807

$1.74

375

Insert Half Hex Body M8 x 1.25

293450307

$2.03

380

Spacer

708305071

$17.66

390

Hex Torx Truss M8 X30

250000745

$3.05

400

RH Front Body Panel

705018369

$64.58

410

Torx Truss Screw M6 X 25

250000807

$1.74

420

Flat Washer M6.6 X 22

250200162

$1.91

420

Flat Washer M6.6 X 22

250200162

$1.91

450

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

460

Cup

705018367

$7.37

470

Torx Truss Screw M6 X 25

250000807

$1.74

475

Insert Half Hex Body M8 x 1.25

293450307

$2.03

480

Spacer

708305071

$17.66

490

Hex Torx Truss M8 X30

250000745

$3.05

1700

LH Rear Cage Trim

715011318

$19.97

1705

Panel Nut M6 X 1.0

250100198

$1.73

1710

Torx Truss Screw M6 X 25

250000807

$1.74

1720

Stainless Steel Flat Washer

234062670

$1.74

1730

Tuflok Plastic Rivet

293150230

$1.21

1800

RH Rear Cage Trim

715011319

$19.97

1805

Panel Nut M6 X 1.0

250100198

$1.73

1810

Torx Truss Screw M6 X 25

250000807

$1.74

1820

Stainless Steel Flat Washer

234062670

$1.74

1830

Tuflok Plastic Rivet

293150230

$1.21

1900

LH Rear Fender

705017733

$106.12

1905

Panel Nut M6 X 1.0

250100208

$1.07

1910

Torx Truss M6X14

250000789

$4.41

1920

Torx Screw M6 X 20

250000722

$1.34

1930

Panel Nut M6 X 1.0

250100198

$1.73

1940

Tuflok Plastic Rivet

293150230

$1.21

1950

Tuflok Plastic Rivet

293150230

$1.21

1955

Torx Screw M6 X 20

250000722

$1.34

1960

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1970

Cup

705018367

$7.37

2000

RH Rear Fender

705017734

$106.12

2005

Panel Nut M6 X 1.0

250100208

$1.07

2010

Torx Truss M6X14

250000789

$4.41

2020

Torx Screw M6 X 20

250000722

$1.34

2030

Panel Nut M6 X 1.0

250100198

$1.73

2040

Tuflok Plastic Rivet

293150230

$1.21

2050

Tuflok Plastic Rivet

293150230

$1.21

2055

Torx Screw M6 X 20

250000722

$1.34

2060

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

2070

Cup

705018367

$7.37

2100

LH Rear Deflector

705017744

$50.74

2150

Tuflok Plastic Rivet

293150230

$1.21

2200

RH Rear Deflector

705017745

$50.74

2250

Tuflok Plastic Rivet

293150230

$1.21

2500

LH Front Deflector

705018750

$50.74

2510

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

2520

Screw PT Type K-50 X 16

250000959

$1.74

2600

RH Front Deflector

705018751

$50.74

2610

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

2620

Screw PT Type K-50 X 16

250000959

$1.74
