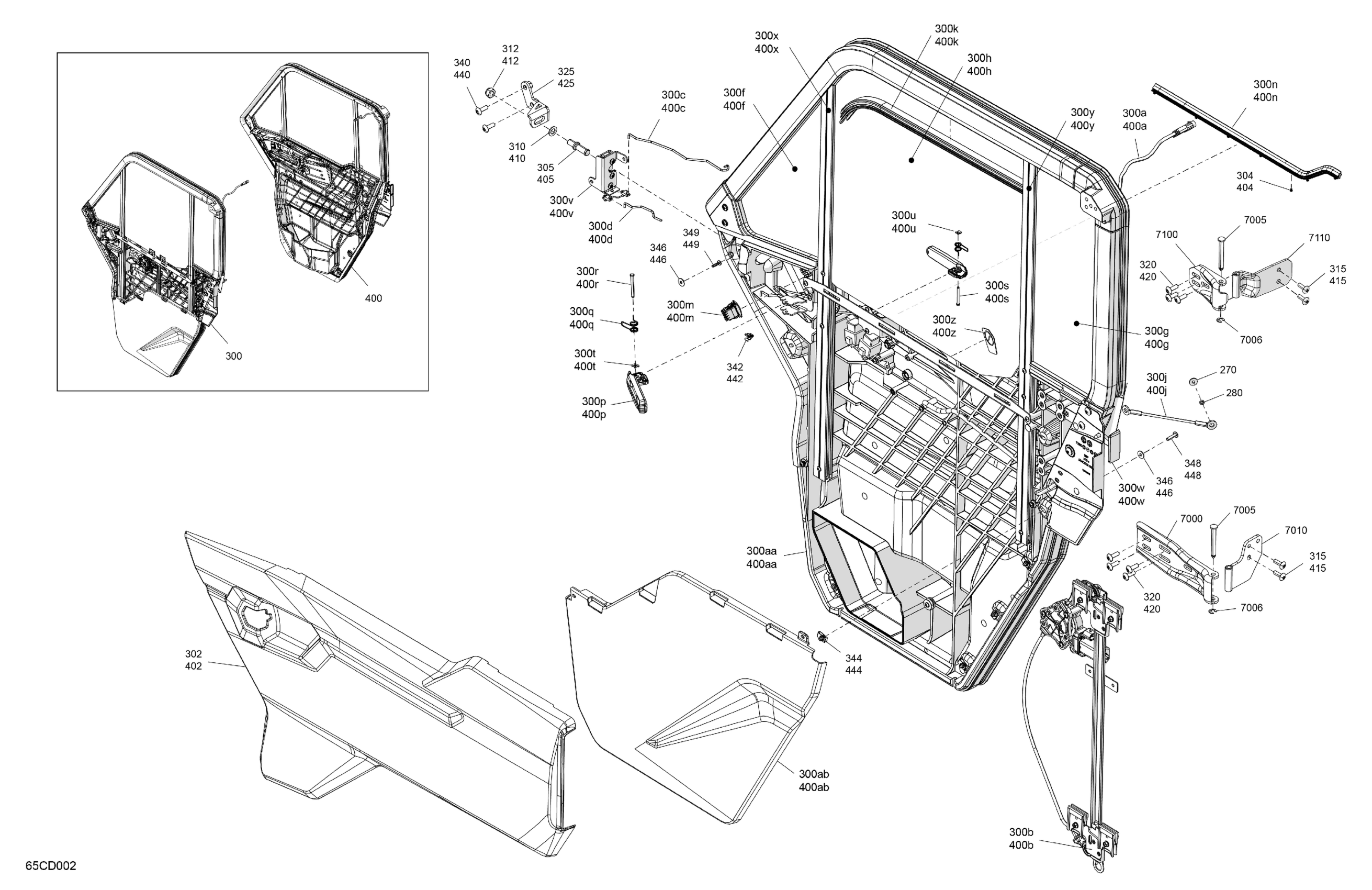

Can-Am Defender HD10 - LTD CAB - 8JRG - Macchiato Satin - 67" Width CALI, 2024 Enclosure Cab - Doors Diagram

#

Description
Price

270

Washer M6

250200029

$1.78

280

Bushing

708300737

$4.43

300

LH Front Door Ass'y | Includes 300 to 300ab

705801236

$1,999.99

300a

LH Door Wiring Harness

705800881

$211.91

300b

LH Front Window Actuator

705801143

$744.00

300c

Guide Pin

705801452

$40.27

300d

Guide Pin

705801358

$40.27

300f

Front Door Window

705801372

$189.99

300g

Rear Door Window

705801373

$199.99

300h

Sliding Cab Window

705800865

$199.99

300j

Retaining Cable

705801437

$8.25

300k

Gasket

705801312

$99.22

300m

Window Switch

710004979

$35.60

300n

Gasket

705800963

$31.31

300p

Door Handle

705017152

$12.57

300q

Handle Spring

705013062

$13.28

300r

Handle Axle

705207440

$10.55

300s

Guide Pin

705801393

$40.27

300t

External Retaining Ring

705601875

$3.94

300u

External Retaining Ring

705602261

Unavailable

300v

LH Front Door Latch

705801464

$179.07

300w

Trim

705800992

$90.27

300x

Front Window Guide Extrusion

705800722

$198.48

300y

Rear Window Guide Extrusion

705800723

$198.48

300z

LH Door Pictogram Label

704909996

Unavailable

300aa

Not Available As Spare Parts

XXX

Unavailable

300ab

LH Lower Door Panel

705800716

$239.99

302

Macchiato Satin, LH Upper Door Panel

705801348

$295.49

304

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.88

305

Rod Latch

705800850

$26.84

310

Conical Spring Washer M12

250200005

$3.04

312

Elastic Stop Nut M12

232521416

$1.61

315

Torx Truss M8 X 25

250000874

$2.00

320

Torx Truss M8 X 25

250000874

$2.00

325

LH Front Striker Support

705801086

$40.27

340

Torx Truss M8 X 25

250000874

$2.00

342

Clip

517306478

$1.03

344

Panel Nut M6 X 1.0

250100198

$1.99

346

Stainless Steel Flat Washer

234062670

$2.00

348

Torx Truss Screw M6 X 25

250000807

$2.00

349

Torx Screw Truss Head K50X20 T20

250000760

$2.00

400

RH Front Door Ass'y | Includes 400 to 400ab

705801238

$1,999.99

400a

RH Door Wiring Harness

705800882

$226.84

400b

RH Front Window Actuator

705801144

$744.00

400c

Guide Pin

705801453

$40.27

400d

Guide Pin

705801358

$40.27

400f

Front Door Window

705801375

$189.99

400g

Rear Door Window

705801376

$199.99

400h

Sliding Cab Window

705801390

$459.99

400j

Retaining Cable

705801437

$8.25

400k

Gasket

705801312

$99.22

400m

Window Switch

710004979

$35.60

400n

Gasket

705800963

$31.31

400p

Door Handle

705017152

$12.57

400q

Handle Spring

705013062

$13.28

400r

Handle Axle

705207440

$10.55

400s

Guide Pin

705801393

$40.27

400t

External Retaining Ring

705601875

$3.94

400u

External Retaining Ring

705602261

Unavailable

400v

RH Front Door Latch

705801465

$179.07

400w

Trim

705800993

$90.27

400x

Front Window Guide Extrusion

705800722

$198.48

400y

Rear Window Guide Extrusion

705800723

$198.48

400z

RH Door Pictogram Label

704909998

Unavailable

400aa

Not Available As Spare Parts

XXX

Unavailable

400ab

RH Lower Door Panel

705800717

$239.99

402

Macchiato Satin, RH Upper Door Panel

705801349

$295.49

404

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.88

405

Rod Latch

705800850

$26.84

410

Conical Spring Washer M12

250200005

$3.04

412

Elastic Stop Nut M12

232521416

$1.61

415

Torx Truss M8 X 25

250000874

$2.00

420

Torx Truss M8 X 25

250000874

$2.00

425

RH Front Striker Support

705801097

$40.27

440

Torx Truss M8 X 25

250000874

$2.00

442

Clip

517306478

$1.03

444

Panel Nut M6 X 1.0

250100198

$1.99

446

Stainless Steel Flat Washer

234062670

$2.00

448

Torx Truss Screw M6 X 25

250000807

$2.00

449

Torx Screw Truss Head K50X20 T20

250000760

$2.00

7000

Door Hinge

705800751

$37.99

7005

Hinge Pin

705800781

$0.54

7006

Retaining Ring

293370125

$1.91

7010

Lower Hinge

705801025

$39.52

7100

Upper Door Hinge

705800752

$39.52

7110

Upper Door Hinge

705800755

$28.33
