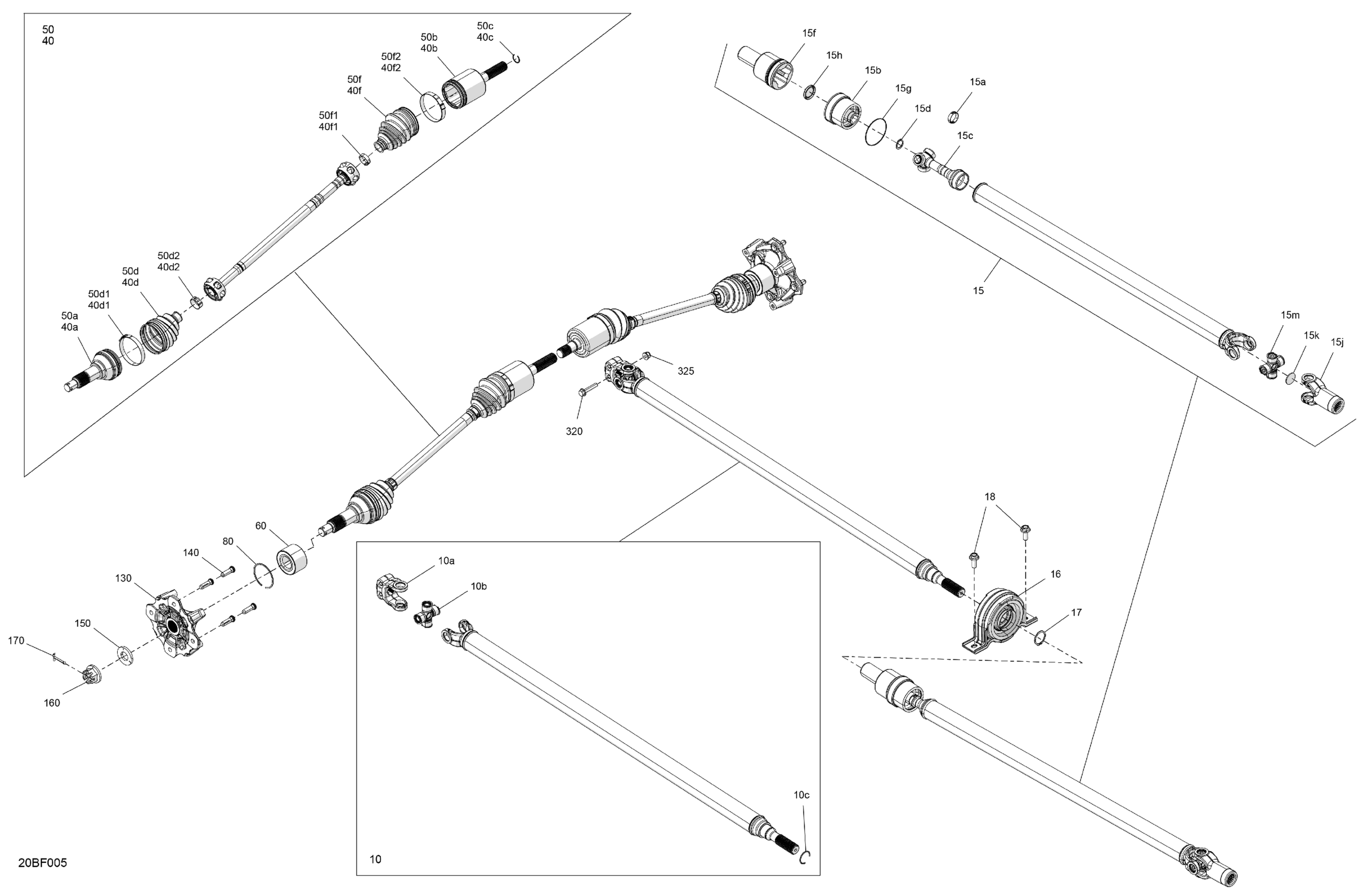

Can-Am Commander MAX - 700 EFI - DPS - 6HTD - Compass Green - 60" Width - CALI, 2026 Drive - Front - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705403719

$235.79

10a

Connecting Yoke 18Th

715900938

$23.10

10b

Universal Joint Ass'y

715900911

$43.25

10c

Snap Ring | Not Shown

715900945

$2.49

15

Drive Axle Ass'y | Includes 15 to 15m

705403720

$235.79

15a

Large Oetiker Clamp | Not Shown

715900950

$6.55

15b

Dust cover | Not shown

219800426

$24.60

15c

Three Pin Joint | Not shown

219800433

$29.82

15d

Circlip | Not shown

219800427

$1.12

15f

Joint

715900949

$55.19

15g

O-Ring | Not shown

219800429

$5.75

15h

Cover

715900948

$12.49

15j

Slip Yoke

715900947

$23.10

15k

Cover

715900946

$4.07

15m

Universal Joint Ass'y

715900911

$43.25

16

Ball Bearing Ass'y

705403522

$44.00

17

Snap Ring

293370098

$3.01

18

Hex. Flange Screw M10 X 20

207502046

$2.00

40

RH Front CV Joint Ass'y | Includes 40 to 40f2

705402873

$226.84

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

40b

RH Plunging Joint

715900688

$241.01

40c

Circlip Joint | Not shown

705401349

$5.10

40d

Boot Kit, Wheel Side

705401345

$39.52

40d1

Oetiker Clamp

715900282

$5.04

40d2

Oetiker Clamp, Small

715900283

$5.04

40f

Boot Kit, Différential Side

705401355

$39.52

40f1

Oetiker Clamp, Small

715900261

$5.04

40f2

Oetiker Clamp, Large

715900262

$9.00

50

LH Front CV Joint Ass'y | Includes 50 to 50f2

705402874

$226.84

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

Unavailable

50b

LH Plunging Joint

715900689

$241.01

50c

Circlip Joint | Not shown

705401349

$5.10

50d

Boot Kit, Wheel Side

705401345

$39.52

50d1

Oetiker Clamp

715900282

$5.04

50d2

Oetiker Clamp, Small

715900283

$5.04

50f

Boot Kit, Différential Side

705401355

$39.52

50f1

Oetiker Clamp, Small

715900261

$5.04

50f2

Oetiker Clamp, Large

715900262

$9.00

60

Ball Bearing

293350150

$50.34

80

Circlip

293370019

$4.68

130

Machined Wheel Hub

705503852

$108.18

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

150

Conical Spring Washer M20

250200170

$12.63

160

Castle Nut M20

250100193

$7.64

170

Cotter Pin

250400084

$2.06

320

Hex. Flange Screw M8 X 42

250001050

$1.09

325

Hex. Elastic Flange Nut M8

233281416

$1.43
