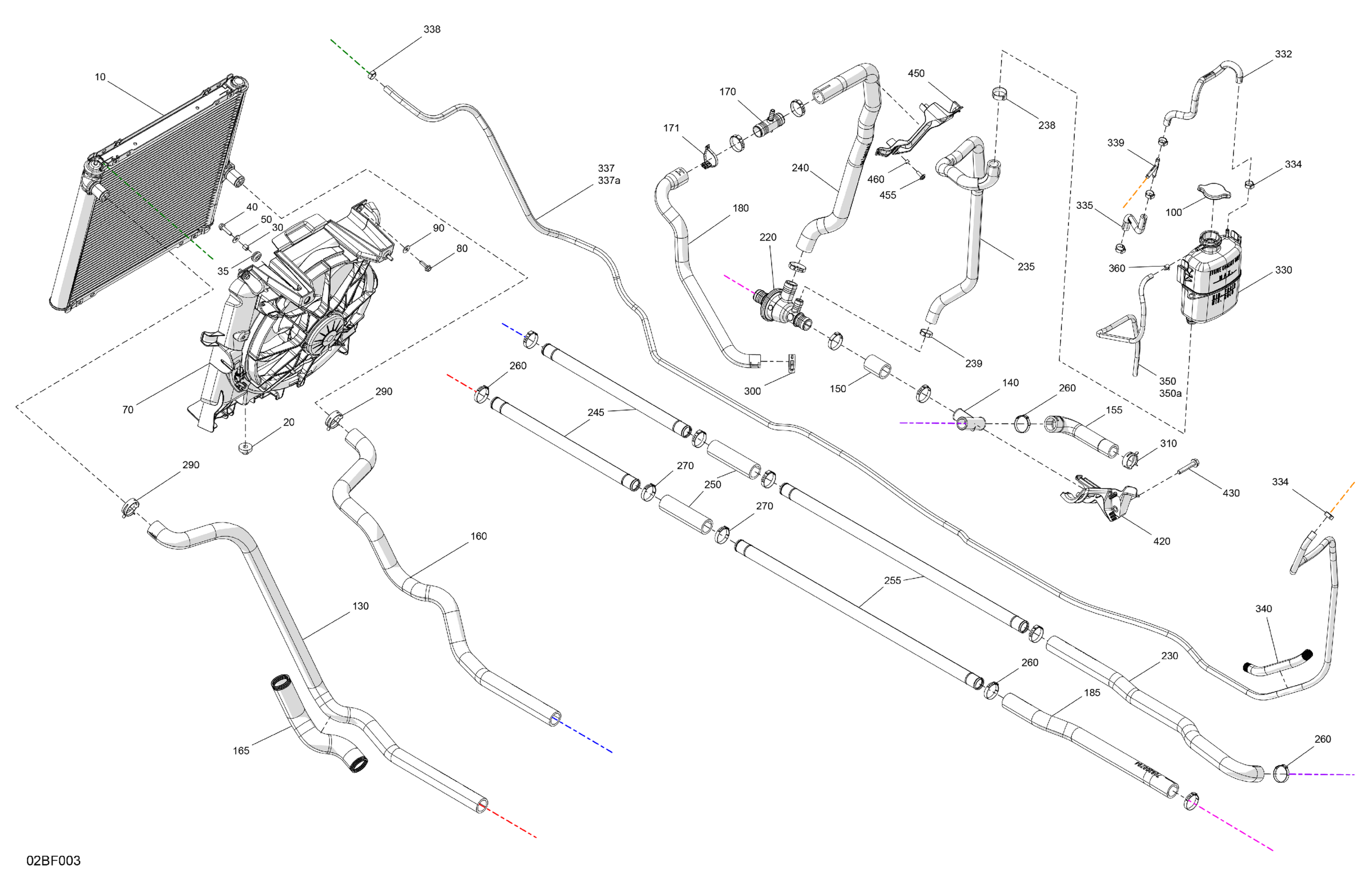

Can-Am Commander MAX - 700 EFI - DPS - 6HTD - Compass Green - 60" Width - CALI, 2026 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200703

$350.74

20

Grommet

709200285

$7.09

30

Bushing

293900105

$6.26

35

Overmolded Grommet

293720130

$4.38

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200665

$313.82

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

130

Radiator Inlet hose

709200793

$64.58

140

T-Fitting

509001313

$15.35

150

Pump Hose

709200672

$8.45

155

Primary Water Pump Hose

709200965

$32.28

160

Radiator Outlet Hose

709200797

$36.89

165

Tubing 35 MM 1000MM Long

219704428

$8.57

170

T-Fitting

509000510

$11.52

171

Tie Wrap

293750108

$7.37

180

Hose Engine Out

709201045

$41.51

185

Intermediate Inlet Hose

709200794

$41.51

220

Thermostat Housing

709200967

$101.51

230

Radiator Hose

709200795

$10.98

235

Coolant Tank Hose

709201493

$36.89

238

Oetiker Gear Clamp

293650165

$4.32

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

240

Thermostat Inlet Hose

709200796

$36.89

245

Heater Tubing

709200664

$13.98

250

Hose

709200742

$13.52

255

Heater Tubing

709200657

$13.98

260

Crimp Clamp

293650332

$7.37

270

Crimp Clamp

293650332

$7.37

290

Norma Spring Clamp

293650166

$4.28

300

Norma Spring Clamp

293650109

$4.00

310

Norma Spring Clamp

293650108

$4.00

330

Coolant Tank

709201323

$78.43

332

Bleeding Hose

709200718

$23.05

334

Crimp Clamp, 15.3-706R

293650047

$2.64

335

Bleeding Hose

709200717

$18.43

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

337a

Not Available As Spare Parts

XXX

Unavailable

338

Oetiker Clamp

293650042

$1.40

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

350a

Not Available As Spare Parts

XXX

Unavailable

360

Spring Clamp

414554800

$0.83

420

Hose Support

709200964

$11.98

430

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

450

Support

709200746

$4.60

455

Screw PT Type K-50 X 16

250000959

$1.74

460

Bushing

709200761

$10.68
