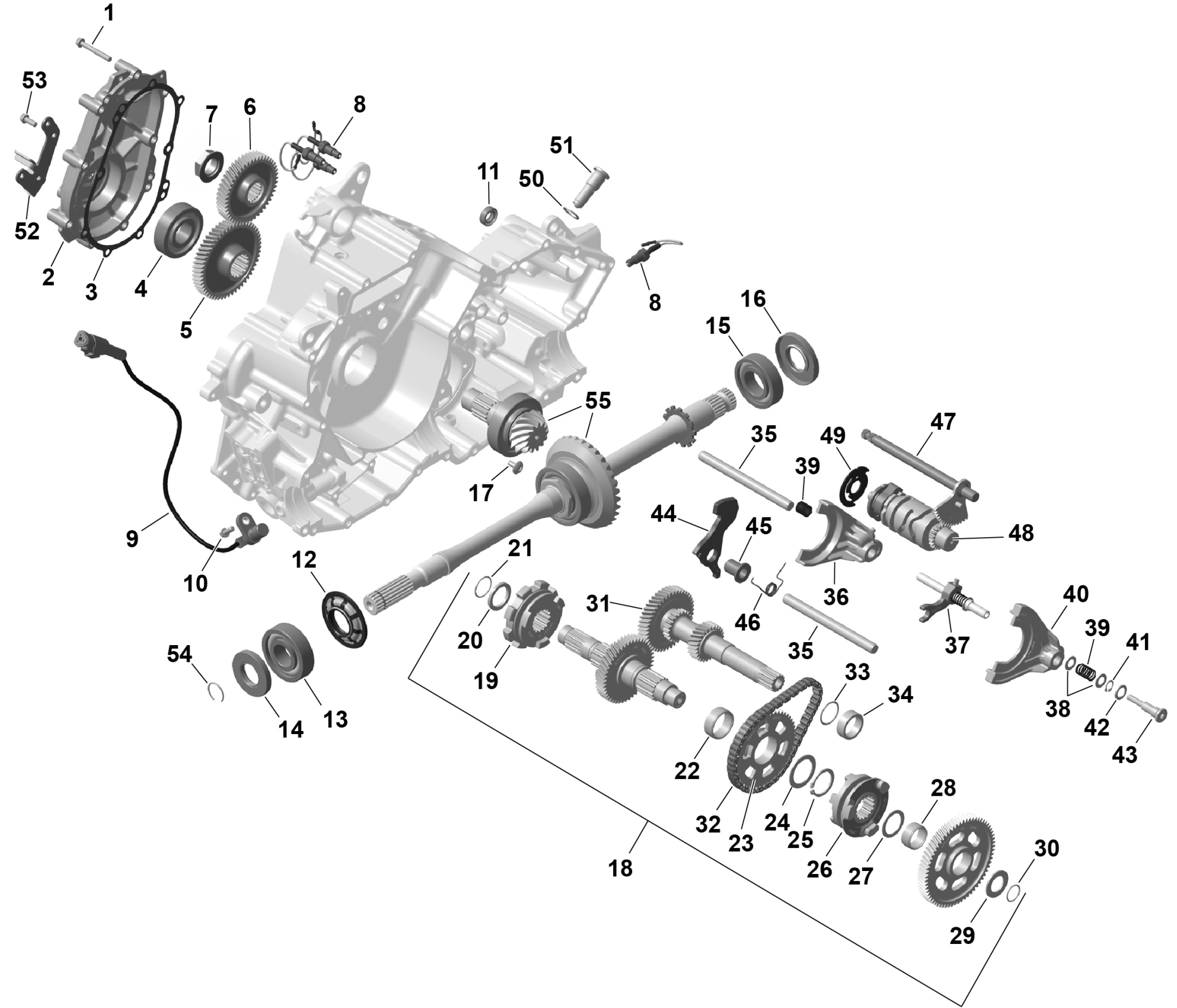

Can-Am Commander - 700 EFI - DPS - 9PTA - Compass Green - 60" Width - CALI, 2026 ROTAX - GearBox Diagram

#

Description
Price

1

Torx Flange Screw M6 X 45

420440324

$0.98

2

Gear Box Cover

420686892

$58.99

3

Gasket | Included in gasket kit

420651275

$20.49

4

Ball Bearing

420932822

$30.49

5

Intermediate Gear 53 Teeth

420934270

$77.49

6

Intermediate Gear 46 Teeth

420934260

$77.49

7

Hex. Nut, M22 X 1.5

420842239

$17.53

8

3 Position Switch

420640192

$42.49

9

Camshft Position Sensor Ass'y

420265727

$109.99

10

Torx Flange Screw M6 X 16

420440162

$3.17

11

Oil Seal

420250455

$17.38

12

Oil Seal | Included in gasket kit

420931940

$30.49

13

Ball Bearing

420932822

$30.49

14

Oil Seal

420831178

$35.99

15

Ball Bearing

420932580

$10.33

16

Oil Seal 32X60X7 | Included in gasket kit

420830753

$38.99

17

Torx Screw M6X13

420240051

$0.90

18

Main Shaft Ass'y | Includes no. 19-31

420820328

$264.99

19

Shifting Sleeve

420257254

$48.99

20

Thrust Washer

420227864

$8.49

21

O-Ring

420931391

$10.59

22

Needle Bearing

420632359

$7.30

23

Pinion Gear 49 Teeth

420934190

$109.99

24

Thrust Washer

420626875

$3.17

25

Retaining Ring

420945620

$4.29

26

Shifting Sleeve

420257244

$48.99

27

Thrust Washer

420427012

$3.17

28

Needle Bearing

420632075

$7.30

29

Thrust Washer

420627301

$7.20

30

O-Ring

420230371

$10.11

31

Countershaft

420820415

$132.49

32

Chain

420898532

$98.49

33

O-Ring | Included in gasket kit

420631616

$3.17

34

Distance Ring

420247591

$20.49

35

Dowel Pin 12X140

420229243

Unavailable

36

Shift Fork

420657695

$43.99

37

Shifting Block Ass'y

420657707

$38.99

38

Thrust Washer

420827590

$4.01

39

Spring

420638151

$4.59

40

Gearshift Fork Ass'y

420657685

$43.99

41

Snap Ring

420245330

$1.79

42

Aluminum Sealing Ring

420250016

$5.39

43

Bearing Screw M12X1.5

420240921

$11.11

44

Parking Lock Lever

420657760

$80.99

45

Collar Sleeve

420647132

$38.99

46

Helical Spring

420638185

$7.83

47

Shift Shaft Ass'y

420820346

$98.99

48

Shifting Drum Ass'y

420657666

$309.99

49

Isolating Washer

420637955

$5.50

50

Gasket Ring

420430624

$1.89

51

Index Screw Ass'y M16X1.5

420441395

$15.36

52

Retaining Plate

420651085

$22.99

53

Torx Flange Screw M6 X 16

420440164

$2.19

54

Retaining Ring

420645024

$2.61

55

Not Available As Spare Parts

XXX

Unavailable
