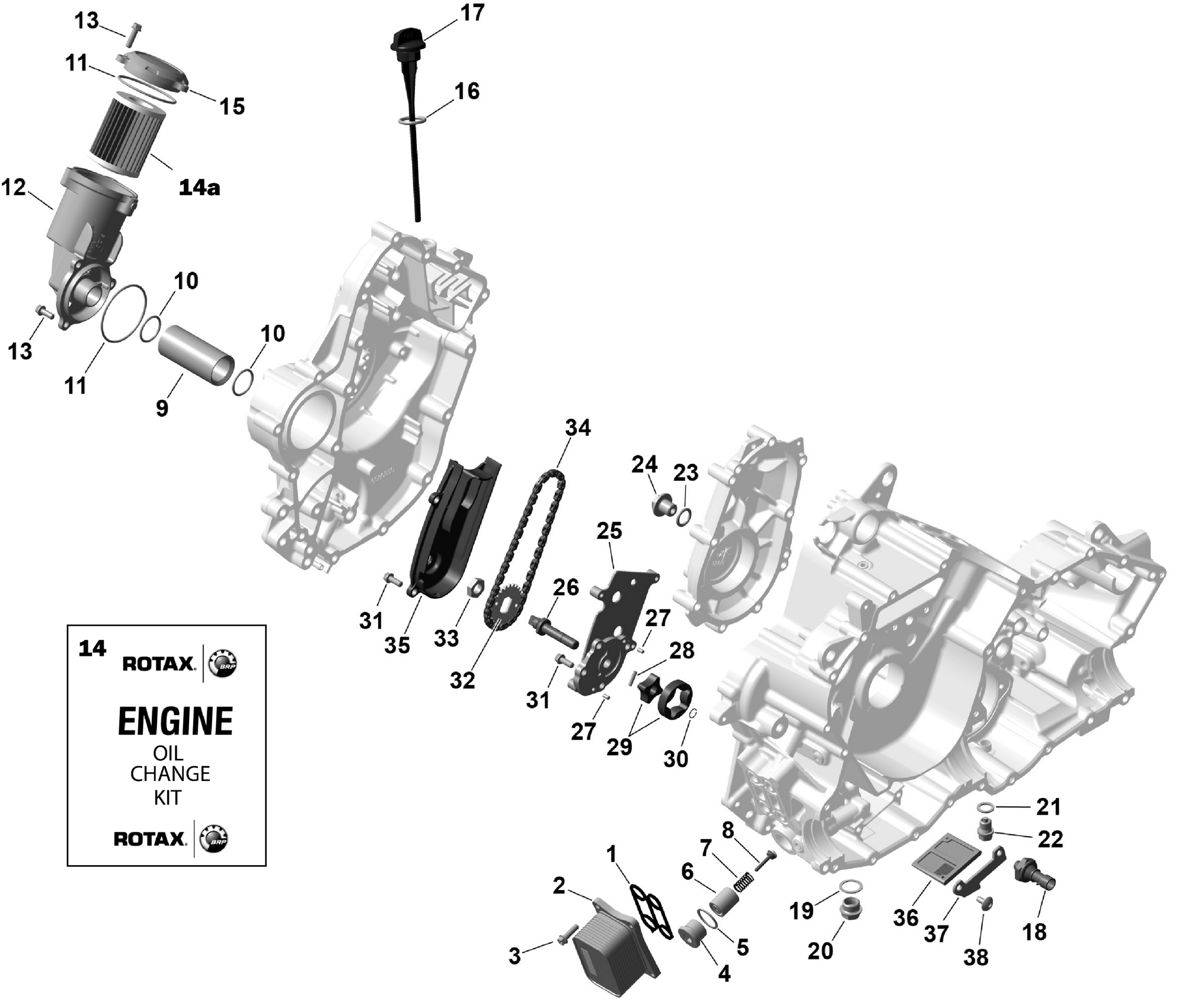

Can-Am Commander - 700 EFI - DPS - 9PTA - Compass Green - 60" Width - CALI, 2026 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Gasket | Included in gasket kit

420431876

$25.34

2

Radiator

420890181

$95.49

3

Torx Flange Screw M6 X 16

420440164

$1.67

4

Plug Screw

420640271

$13.09

5

Gasket Ring

420650465

$11.18

6

Housing

420256487

$7.01

7

Compression Spring

420939485

$11.37

8

Pressure Relief Valve

420656370

$16.39

9

Oil Pipe

420856880

$22.36

10

O-Ring | Included in gasket kit

420631618

$0.85

11

O-Ring | Included in gasket kit

420230922

$0.85

12

Oil Filter Housing

420611210

$22.99

13

Torx Flange Screw M6 X 20

420440207

$2.91

14

CAN-AM Oil Change Kit 5W40 ACE 650C

9779480

$64.15

14a

Oil Filter

420256188

$12.79

15

Oil Filter cover

420612135

$10.78

16

O-Ring

420631641

$0.96

17

Oil Lever Tube

420256821

$16.39

18

Oil Pressure Switch

420256915

$37.28

19

Crush Washer

420552280

$3.43

20

Drain Plug M18 X 1.5

420840278

$22.36

21

Copper Washer

420250640

$0.93

22

Magnetic Drain Plug M12

420241787

$16.39

23

O-Ring

420650352

$0.84

24

Plug Screw M14 X 1.5

420241662

$13.51

25

Oil Pump Cover

420210655

$44.00

26

Oil Pump Shaft

420220862

$41.76

27

Needle Pin

420929075

$2.00

28

Needle Pin

420232731

$1.79

29

Oil Pump Rotor Set

420256355

$34.30

30

Retaining Ring | Included in gasket kit

420245100

$1.36

31

Torx Flange Screw M6 X 16

420440164

$1.67

32

Drive Gear 25 Teeth

420254441

$6.79

33

Hexagonal Nut M12 X 1

420642059

$8.07

34

Silent Chain

420297055

$47.73

35

Chain Guide

420251341

$13.40

36

Oil Sieve

420256585

$28.33

37

Cover Sieve

420612072

$4.09

38

Torx Screw M6X13

420240051

$0.90
