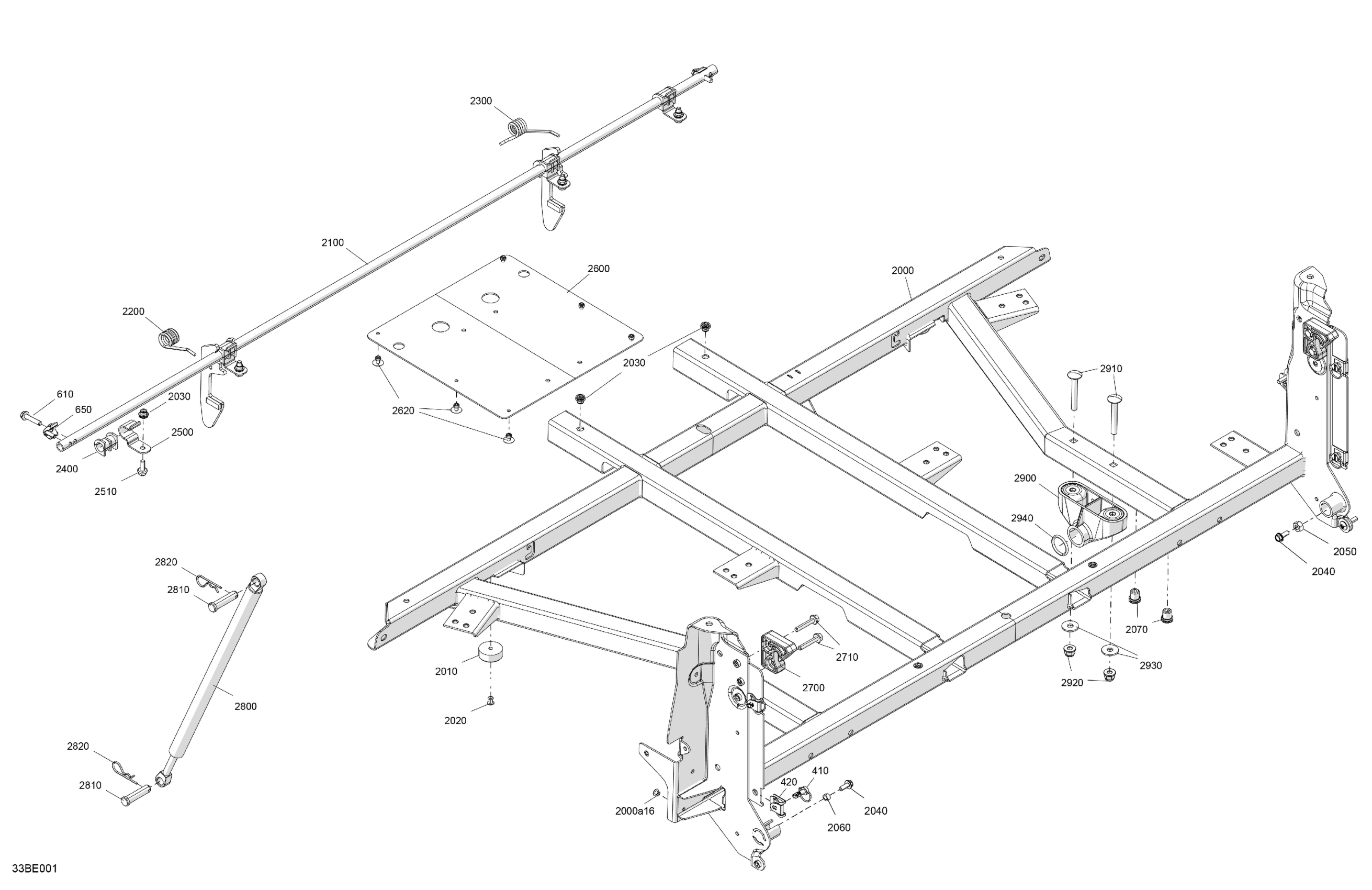

Can-Am Commander - 1000R EFI - DPS - 6PSA - Compass Green - 60" Width CALI, 2025 Body - Cargo - Lower Section Diagram

Description

Price

410

Quarter Turn Screw

705002649

$14.43

420

Quarter Turn Nut

705002651

$4.40

610

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

650

Mounting Clamp

708304074

$4.37

2000

Open Carrier Frame | Includes 2000 to 2000a16

708305025

$307.43

2000a16

Pop Rivet 3/16 X ,425

293150293

$0.30

2010

Rubber Stopper

708304601

$1.69

2020

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

2030

Insert Half Hex Body M6 x 1.0

250100199

$2.91

2040

Hex. Flange Screw M6 X 16

210261650

$1.40

2050

Hex. Nut M8

232081414

$0.69

2060

Bushing | DS 650 X

293900104

$5.10

2070

Insert Half Hex Body M8 x 1.25

293450307

$1.97

2100

Latch Lever

708304029

$75.34

2200

LH Torsion Spring

708303190

$3.54

2300

RH Torsion Spring

708303191

$3.54

2400

Half Ring

705503570

$4.76

2500

Clamp Retainer

708301479

$3.07

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

2600

Reinforcement

708304589

$31.31

2620

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

2700

Latch Stopper

708304062

$8.93

2710

Hex. Flange Screw M6 X 25

207662554

$1.43

2800

Gas Shock Absorber

715007129

$49.22

2810

Clevis Pin

250400075

$5.43

2820

Hair Pin

414575600

$1.73

2900

Support Pivot

708303735

$15.64

2910

Carriage Bolt M8 X 60

207786044

$12.10

2920

Hex. Flange Elastic Nut M8

233281414

$1.31

2930

Flat Washer 8 mm

234082410

$1.27

2940

O-Ring

293300131

$4.94
